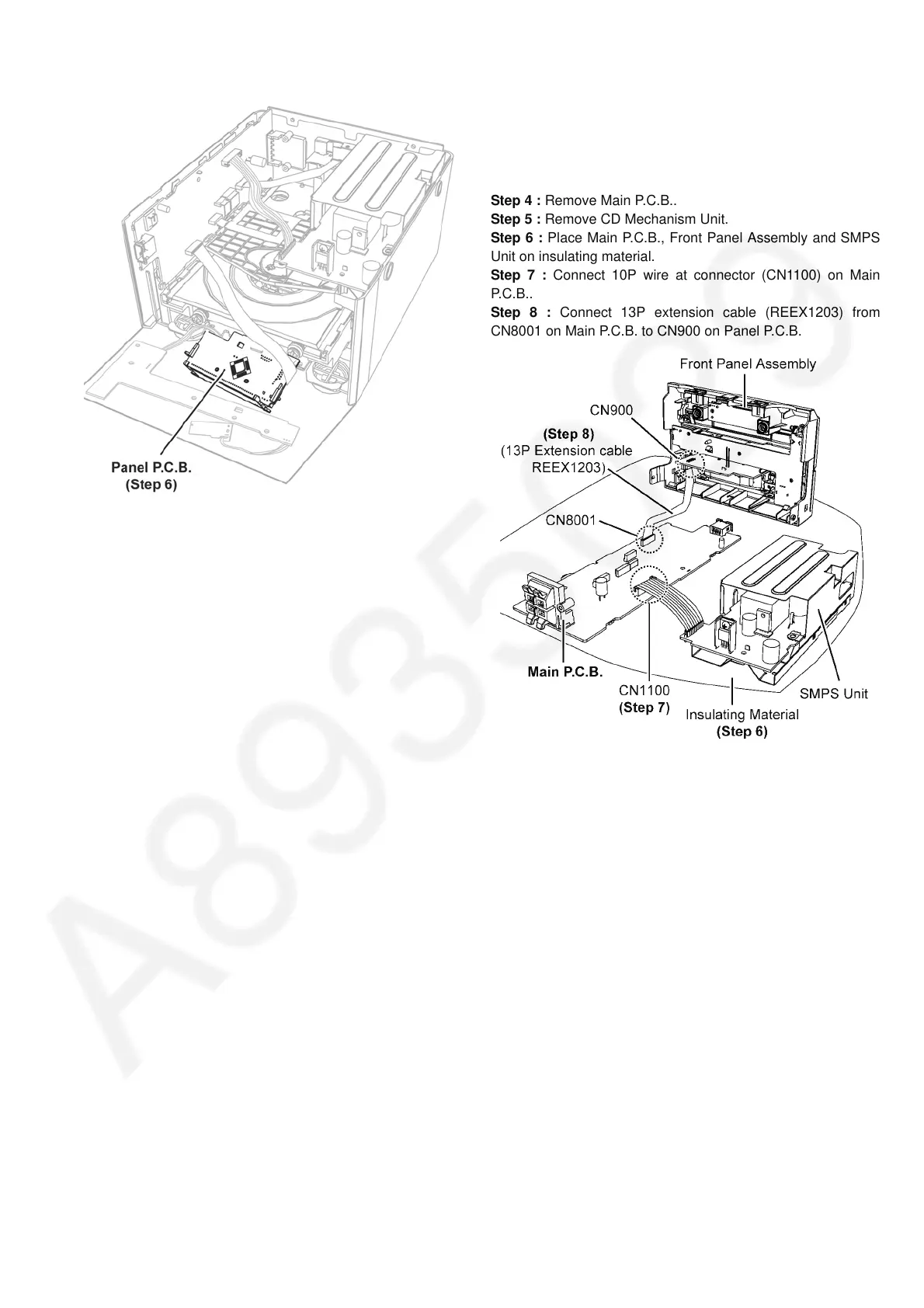

Step 6 : Check Panel P.C.B. according to the diagram shown.
10.3. Checking of CD Interface P.C.B.
Note : Insert CD before checking CD Interface P.C.B.
Step 1 : Remove Top Cabinet Assembly.
Step 2 : Remove SMPS Unit.
Step 3 : Remove Front Panel Assembly.
Step 4 : Remove Main P.C.B..
Step 5 : Remove CD Mechanism Unit.
Step 6 : Place Main P.C.B., Front Panel Assembly and SMPS
Unit on insulating material.
Step 7 : Connect 10P wire at connector (CN1100) on Main
P. C .B ..
Step 8 : Connect 13P extension cable (REEX1203) from
CN8001 on Main P.C.B. to CN900 on Panel P.C.B.
