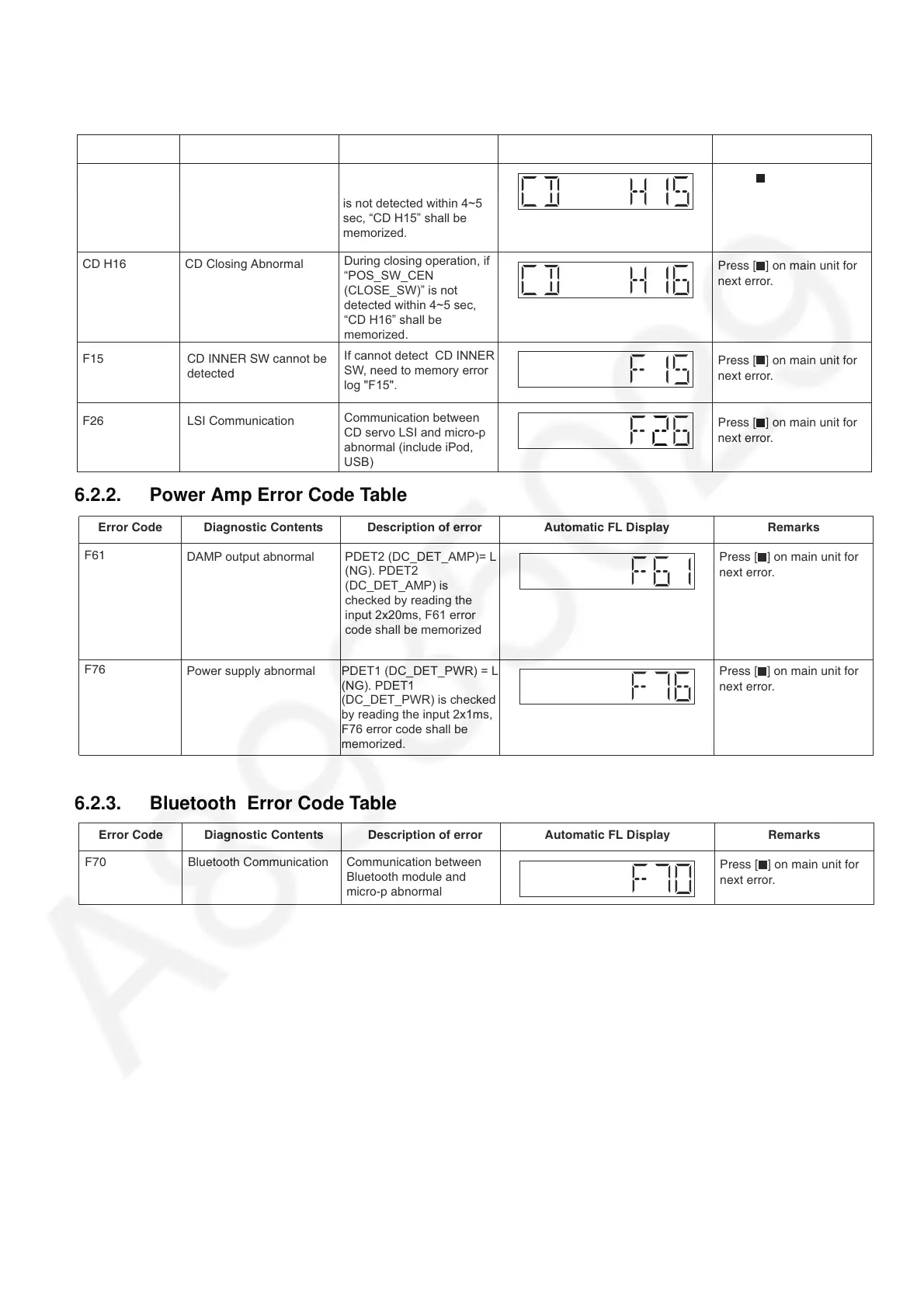

6.2. Self Diagnostic Function Error Code
6.2.1. CD Mechanism Error Code Table
6.2.2. Power Amp Error Code Table
6.2.3. Bluetooth Error Code Table
of error Automatic FL Display Remarks
CD H15 CD Open Abnormal
Press [
] on main unit for
next error.
CD H16 CD Closing Abnormal
Press [
] on main unit for
next error.
Error Code Diagnostic Contents Description of error
During normal operation, if
“POS_SW_R (OPEN_SW)”
is not detected within 4~5
sec, “CD H15” shall be
memorized.
During closing operation, if
“POS_SW_CEN
(CLOSE_SW)” is not
detected within 4~5 sec,
“CD H16” shall be
memorized.
F15 CD INNER SW cannot be
detected
Press [
] on main unit for
next error.
If cannot detect CD INNER
SW, need to memory error
log "F15".
F26 LSI Communication
Press [
] on main unit for
next error.
Communication between
CD servo LSI and micro-p
abnormal (include iPod,
USB)
of error Automatic FL Display Remarks
F61
Press [
] on main unit for
next error.
Press [
] on main unit for
next error.
Error Code Diagnostic Contents Description of error
DAMP output abnormal PDET2 (DC_DET_AMP)= L
(NG). PDET2
(DC_DET_AMP) is
checked by reading the
input 2x20ms, F61 error
code shall be memorized
F76
Power supply abnormal PDET1 (DC_DET_PWR) = L
(NG). PDET1
(DC_DET_PWR) is checked
by reading the input 2x1ms,
F76 error code shall be
memorized.
of error Automatic FL Display Remarks
F70
Bluetooth Communication
Communication between
Bluetooth module and
micro-p abnormal
Press [
] on main unit for
next error.
Error Code Diagnostic Contents Description of error
