Panasonic SA-PM250EB - Disassembly of Button P.C.B., Volume P.C.B. and Panel P.C.B.

28

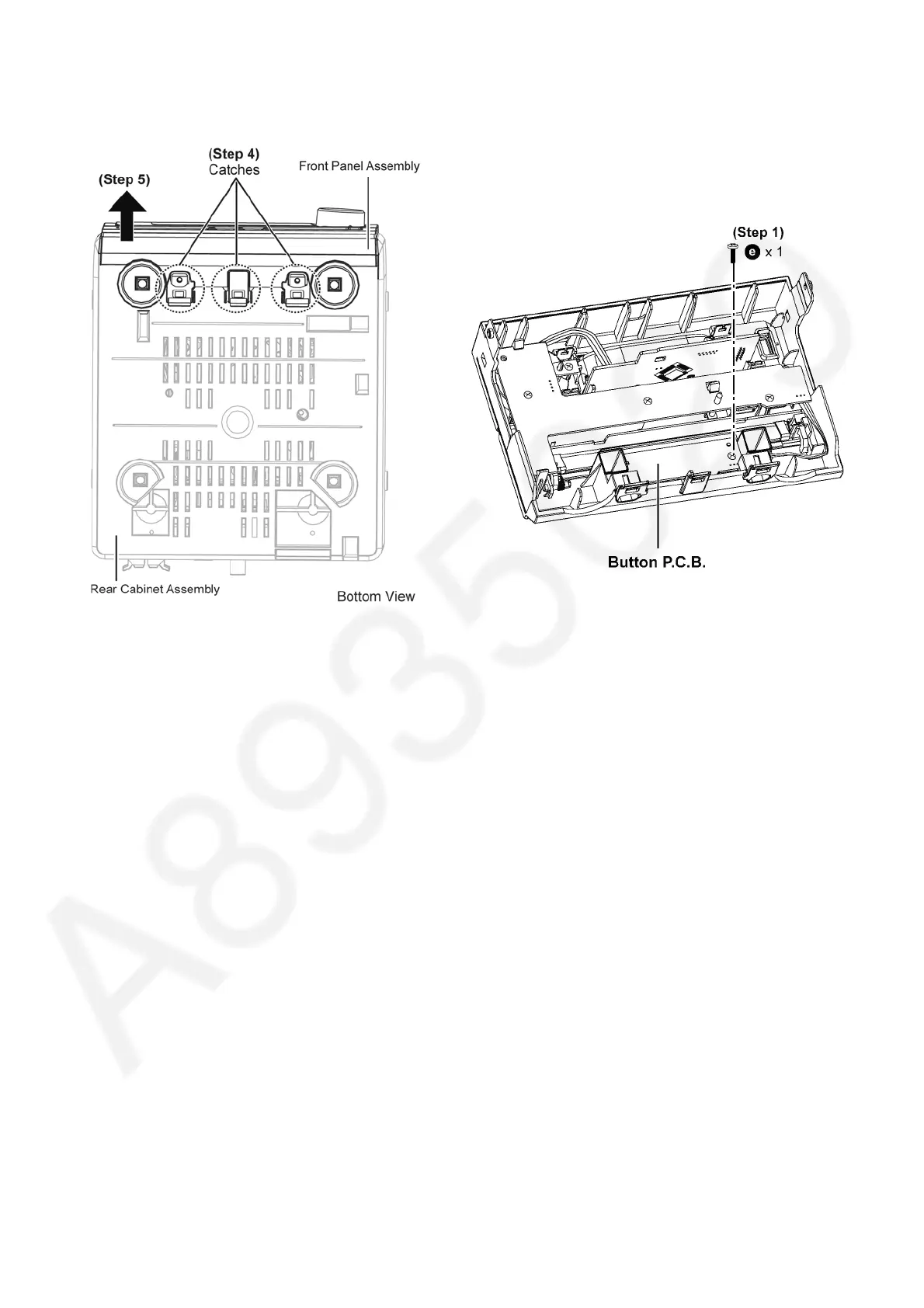

Step 4 : Release catches at the bottom of Rear Cabinet
Assembly.
Step 5 : Remove Front Panel Assembly.
8.11. Disassembly of Button P.C.B.,
Volume P.C.B. and Panel P.C.B.
• Refer to “Disassembly of Top Cabinet Assembly”
• Refer to “Disassembly of Front Panel Assembly”
Step 1 : Remove 1 screw.
