Panasonic SA-PM250EB - Page 35

35

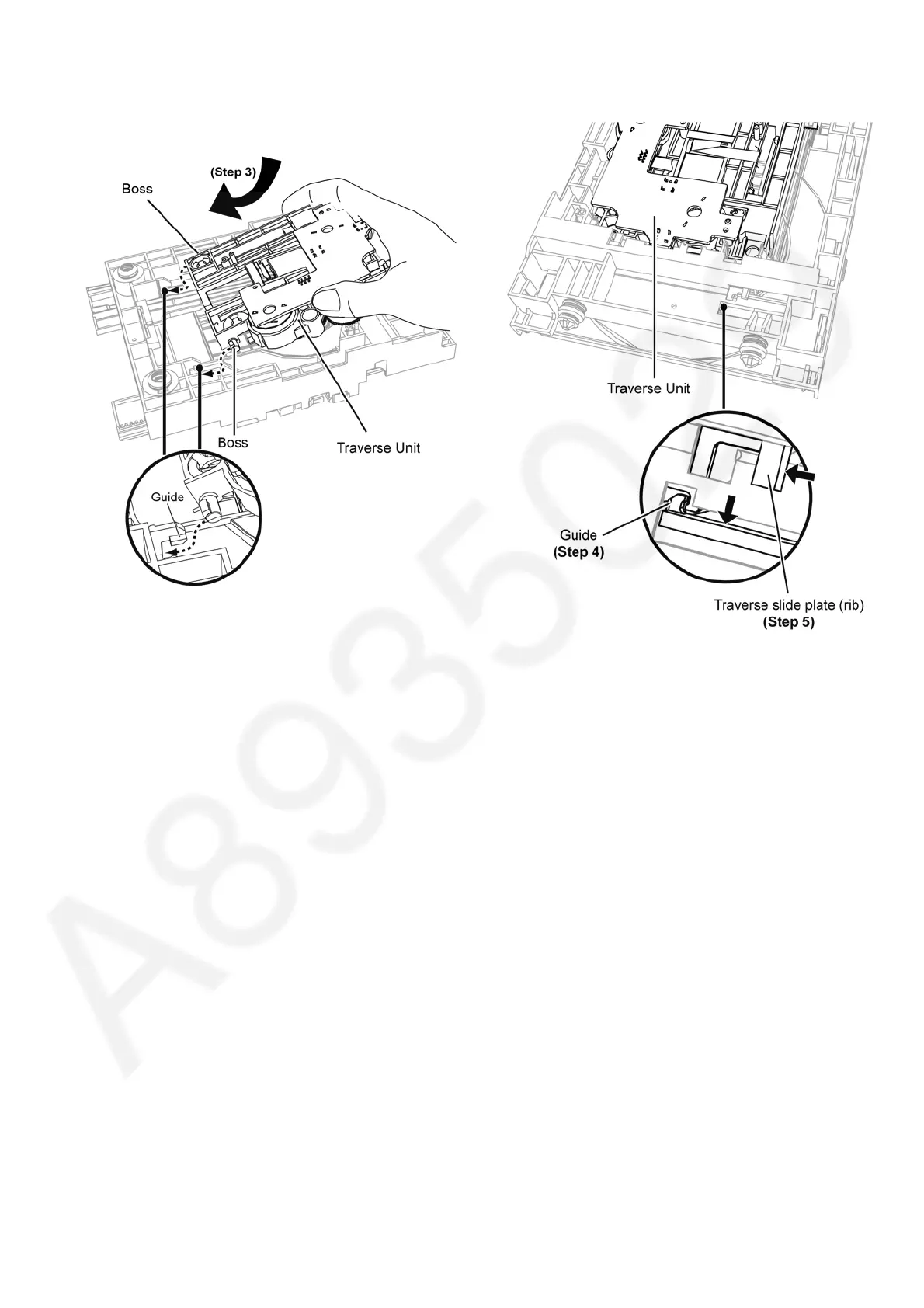

Step 3 : Insert Traverse Unit at approximately 45° as arrow
shown.
Caution : Ensure that the bosses fix exactly onto the
guides.
Step 4 : Release guide.
Step 5 : Push traverse slide plate (rib) to lock the traverse unit.
