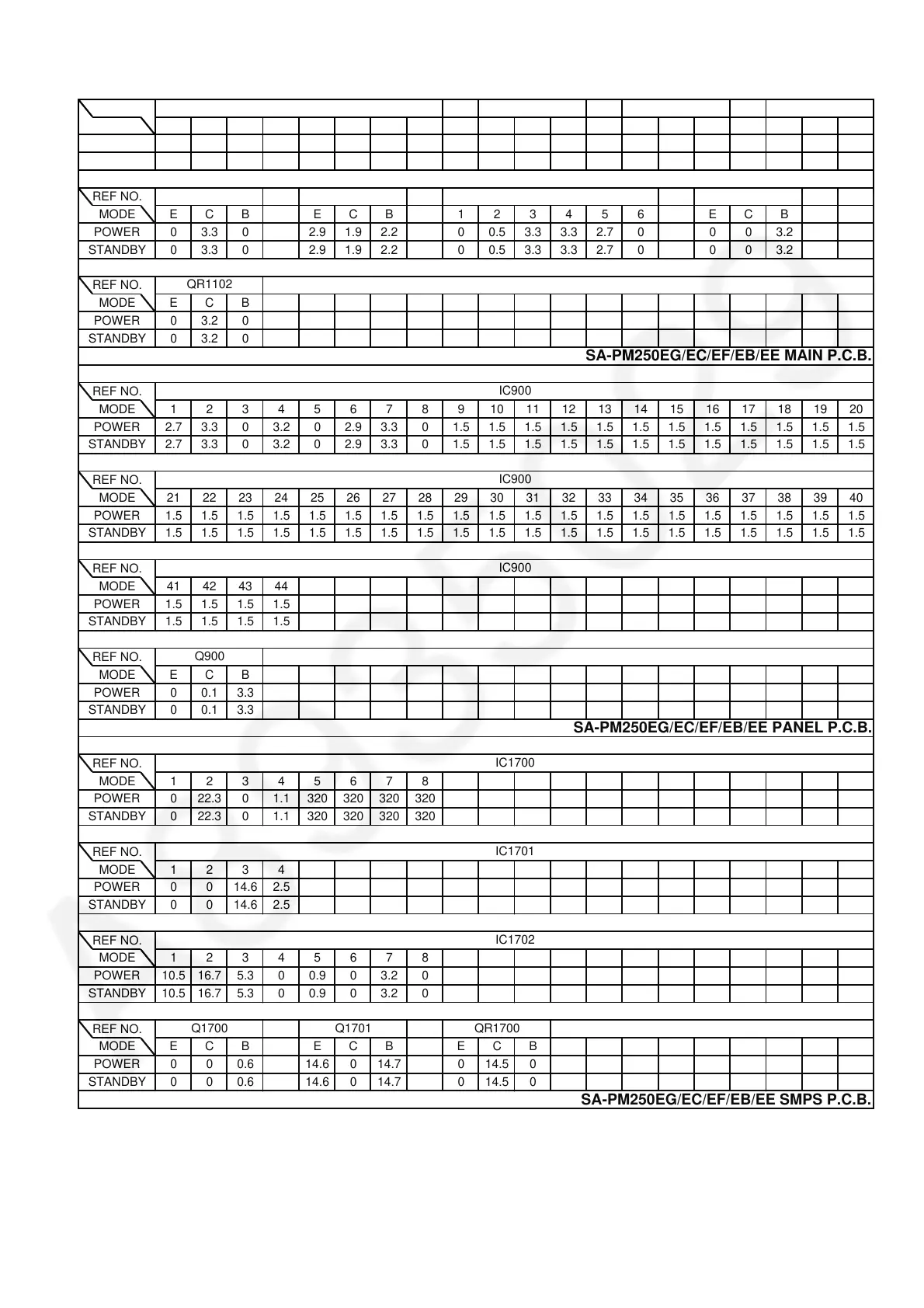

15.1.3. MAIN P.C.B. (3/3), Panel P.C.B. & SMPS P.C.B.
REF NO.
MODE 12345678 ECB ECB ECB
POWER 19.0 19.0 19.0 3.6 19.0 19.0 19.0 19.0 8.4 16.5 8.4 8.4 16.5 8.4 16.7 0 16.6
STANDBY 19.0 19.0 19.0 3.6 19.0 19.0 19.0 19.0 8.4 16.5 8.4 8.4 16.5 8.4 16.7 0 16.6
REF NO.
MODE E C B E C B 123456 ECB
POWER 0 3.3 0 2.9 1.9 2.2 0 0.5 3.3 3.3 2.7 0 0 0 3.2
STANDBY 0 3.3 0 2.9 1.9 2.2 0 0.5 3.3 3.3 2.7 0 0 0 3.2
REF NO.
MODE E C B
POWER 0 3.2 0
STANDBY 0 3.2 0
REF NO.
MODE 1234567891011121314151617181920
POWER 2.7 3.3 0 3.2 0 2.9 3.3 0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
STANDBY 2.7 3.3 0 3.2 0 2.9 3.3 0 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
REF NO.
MODE 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
POWER 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
STANDBY 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5
REF NO.
MODE 41 42 43 44
POWER 1.5 1.5 1.5 1.5
STANDBY 1.5 1.5 1.5 1.5
REF NO.
MODE E C B
POWER 0 0.1 3.3
STANDBY 0 0.1 3.3
REF NO.
MODE 12345678
POWER 0 22.3 0 1.1 320 320 320 320
STANDBY 0 22.3 0 1.1 320 320 320 320
REF NO.
MODE 1234
POWER 0 0 14.6 2.5
STANDBY 0 0 14.6 2.5
REF NO.
MODE 12345678
POWER 10.5 16.7 5.3 0 0.9 0 3.2 0
STANDBY 10.5 16.7 5.3 0 0.9 0 3.2 0
REF NO.
MODE E C B E C B E C B
POWER 0 0 0.6 14.6 0 14.7 0 14.5 0
STANDBY 0 0 0.6 14.6 0 14.7 0 14.5 0
IC1700
SA-PM250EG/EC/EF/EB/EE PANEL P.C.B
.
IC900
SA-PM250EG/EC/EF/EB/EE MAIN P.C.B.
IC900
Q900
IC900
QR1102
Q1100 Q400 Q401 Q402
Q8000 QR1101Q403 Q5002
SA-PM250EG/EC/EF/EB/EE SMPS P.C.B.
IC1701
IC1702
Q1700 Q1701 QR1700
