• Disassembly of pinch roller ass’y & head block

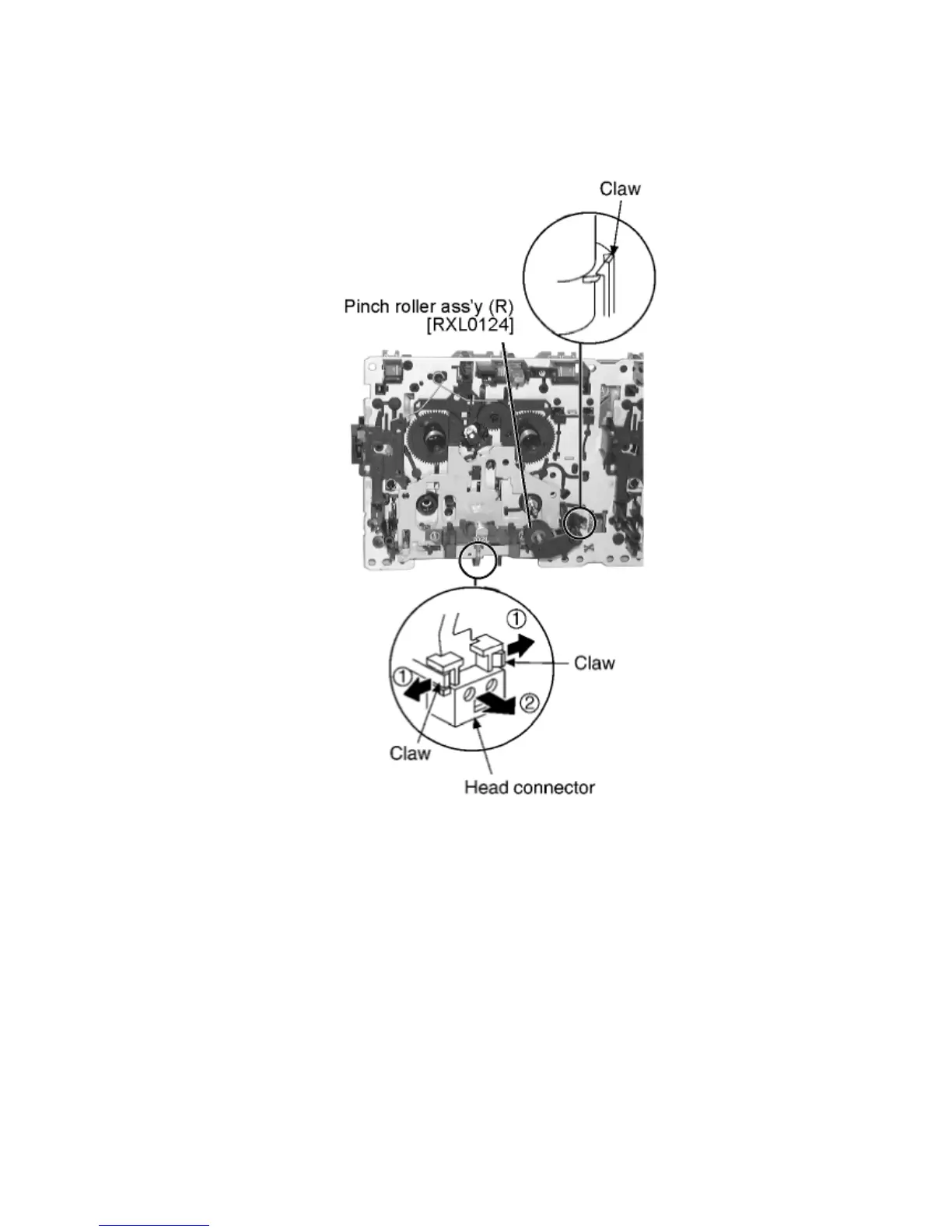

Step 12 Release the 2 claws, and then remove the pinch roller (R), (F).

Step 13 Release ther 2 claws, and then remove the head connector.
