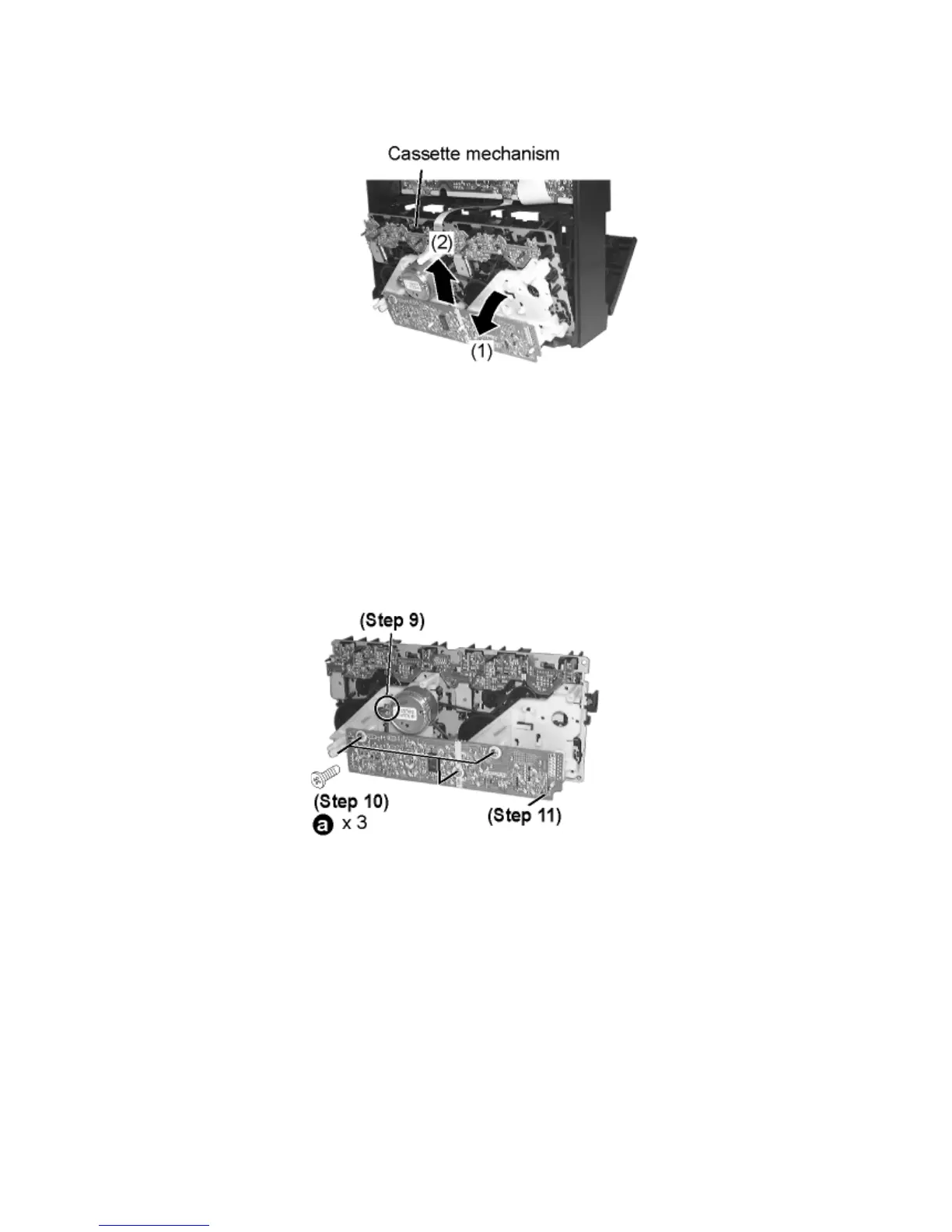

Step 8 Tilt the cassette mechanism in the direction of arrow (1), and then remove it in the direction of arrow (2).
• Disassembly of Deck P.C.B.
Step 9 Unsolder the motor terminals.
Step 10 Remove 4 screws.
Step 11 Remove Deck P.C.B.
* The mechanism as shown below is for DECK1. For the one of DECK 2, perform the same procedures.
