14. RX (n+3) to RX (n+4): Address information A to Address information B
●
If RX (n+2) bit 0 (completion of connection information change) is turned off (set to ‘0’)
Address of S-LINK V I/O units recognized by the SL-VGU1-C will be stored.
Bit corresponds to the address will be turned on
(will be set to ‘1’).
●
If RX (n+2) bit 0 (completion of connection information change) is turned on (set to ‘1’)
Address of S-LINK V I/O units connected to the S-LINK V system, those error 3, 4, or 5 is detected will be
stored.
Bit corresponds to the address will be turned on
(will be set to ‘1’).
● Address that corresponds to the data stored in RX (n
＋
2) bit 8 to B (completion of address information
change bit 0 to 3) will be stored.
Bit corresponds to the address will be turned on
(will be set to ‘1’).

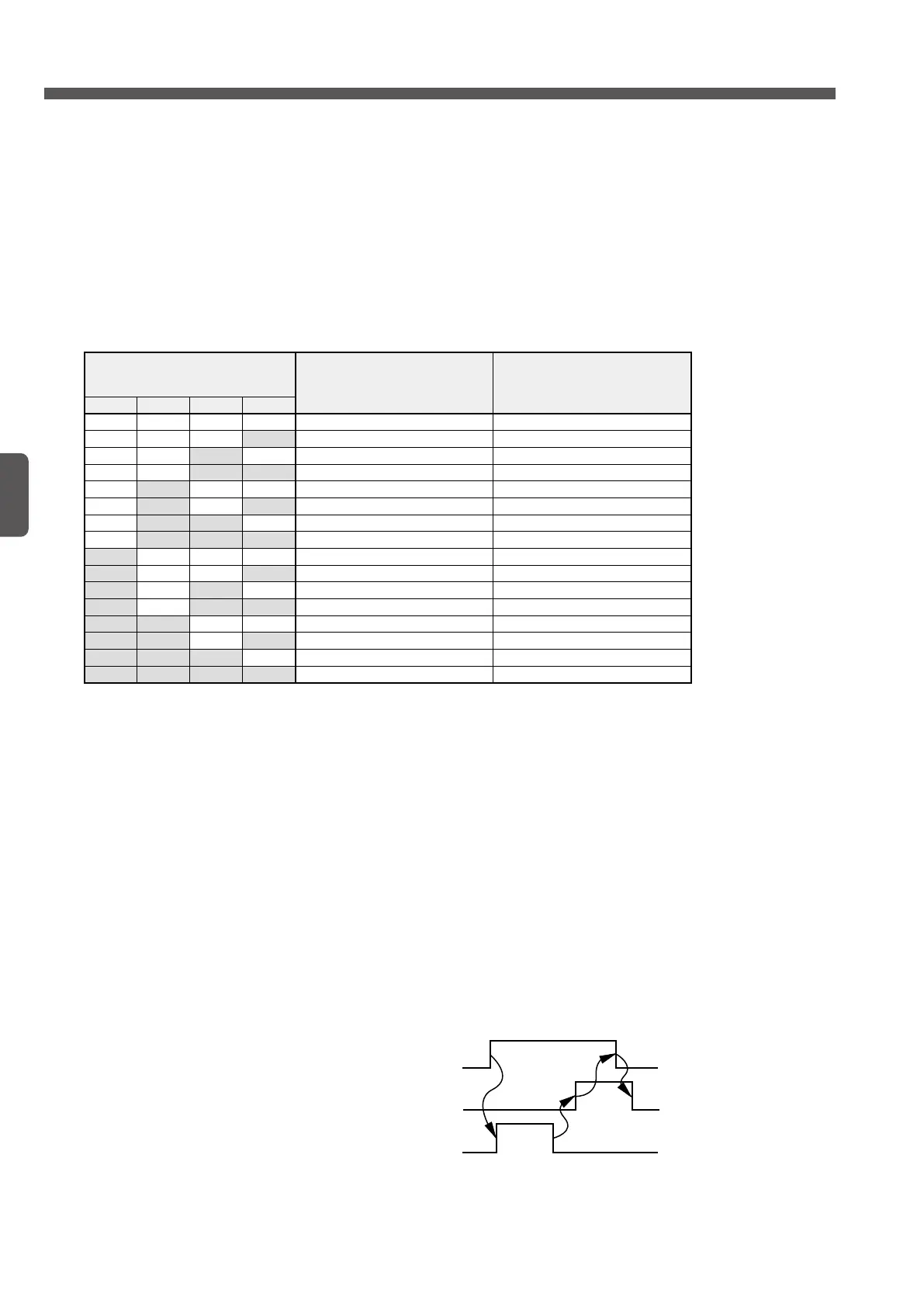

Storage data of RX (n+2) bit 8 to B
(completion of address information
change bit 0 to 3)
RX (n+3) (address information A) RX (n+4) (address information B)
bit B bit A bit 9 bit 8
0 0 0 0 Information of addresses 0 to 15 Information of addresses 16 to 31
0 0 0 1 Information of addresses 32 to 47 Information of addresses 48 to 63
0 0 1 0 Information of addresses 64 to 79 Information of addresses 80 to 95
0 0 1 1
Information of addresses 96 to 111 Information of addresses 112 to 127
0 1 0 0 Information of addresses 128 to 143 Information of addresses 144 to 159
0 1 0 1 Information of addresses 160 to 175 Information of addresses 176 to 191
0 1 1 0 Information of addresses 192 to 207 Information of addresses 208 to 223
0 1 1 1 Information of addresses 224 to 239 Information of addresses 240 to 255
1 0 0 0 Information of addresses 256 to 271 Information of addresses 272 to 287
1 0 0 1 Information of addresses 288 to 303 Information of addresses 304 to 319
1 0 1 0 Information of addresses 320 to 335 Information of addresses 336 to 351
1 0 1 1 Information of addresses 352 to 367 Information of addresses 368 to 383
1 1 0 0 Information of addresses 384 to 399 Information of addresses 400 to 415
1 1 0 1 Information of addresses 416 to 431 Information of addresses 432 to 447
1 1 1 0 Information of addresses 448 to 463 Information of addresses 464 to 479
1 1 1 1 Information of addresses 480 to 495 Information of addresses 496 to 511
15. RY (n) bit 7: Error cancel
To cancel the error status, this bit will be turned on (will bet set to ‘1’).
If this bit is turned on, the error status will be canceled.
At the completion of error status canceling, turn off this bit (set this bit to ‘0’).
Note: If the cause of the error is not eliminated, the error signal will be output again.
16. RY (n) bit E: Transmission frame check request
Use the transmission frame check request to check whether the output data is transferred to the S-LINK V
unit. To send two different outputs to the same address, use this request signal. This is because if the next
data is set before transferring the previously set output data to the unit, the previously set output data will
be ignored. However, after setting output data, if this request signal is turned on (set to ‘1’), RX (n) bit E
(completion of transmission frame check) signal will be turned on (will be set to ‘1’) after transferring the set
output data to the unit.
Using the program, check whether RX (n) bit E (completion of transmission frame check) is turned on (set to
‘1’), and then set the next data to prevent an output data transfer error.
To repeatedly use the transmission frame check signal, turn off (set to ‘0’) RY (n) bit E (transmission frame
check request), and then check whether RX (n) bit E (completion of transmission frame check) signal is
turned off (set to ‘0’). After that, turn on (set to ‘1’) the transmission frame check request again.
Transmission frame check request
1
0
Completion of transmission frame check
1
0
Transmission frame processing
Processing
