Panasonic SL-VGU1-C User Manual

71
Chapter 3

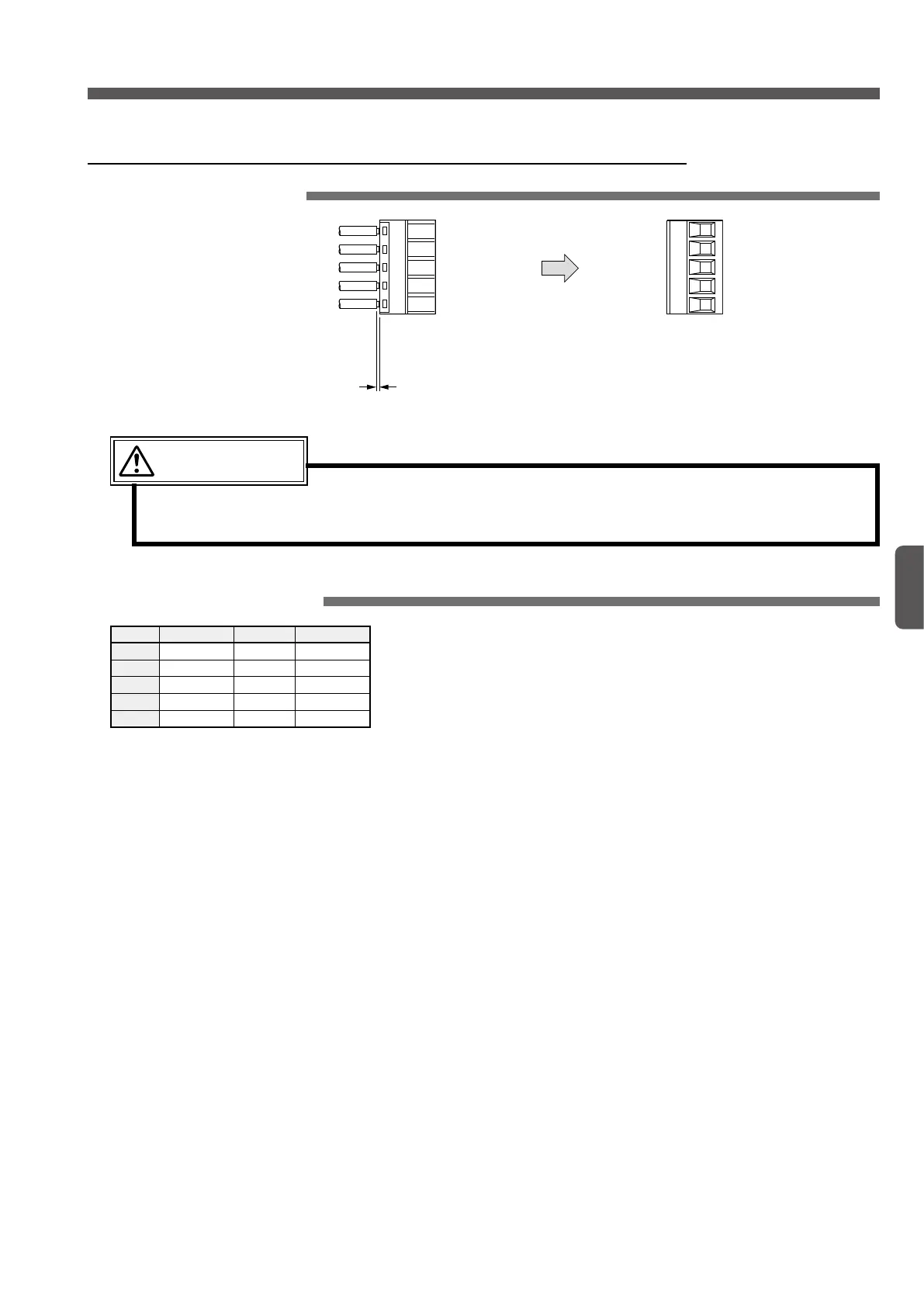

Cable Connection
DeviceNet Terminal Block Connector (5-Pole)
Connection diagram
Be careful not to cause short-circuit with any adjacent terminal.
54321
Connection to
'SL-VGU1-D'
V+ (Red)
CAN_H (White)
Drain (Shielded)
CAN_L (Blue)
V- (Black)
Be sure to ground the shielded wire of the DeviceNet cable.
Whenever necessary, extend the cable using crimp-style terminals, etc.
CAUTION
Terminal arrangement
No. Designation Signal Wire color
5 RD V+ Red
4 WH CAN_H White
3 SHI Drain (Shielded)
2 BU CAN_L Blue
1 BK V- Black
● Applicable terminal block connector
MSTB2.5/5-ST-5.08 (gold plated) (manufactured by Phoenix Contact)
