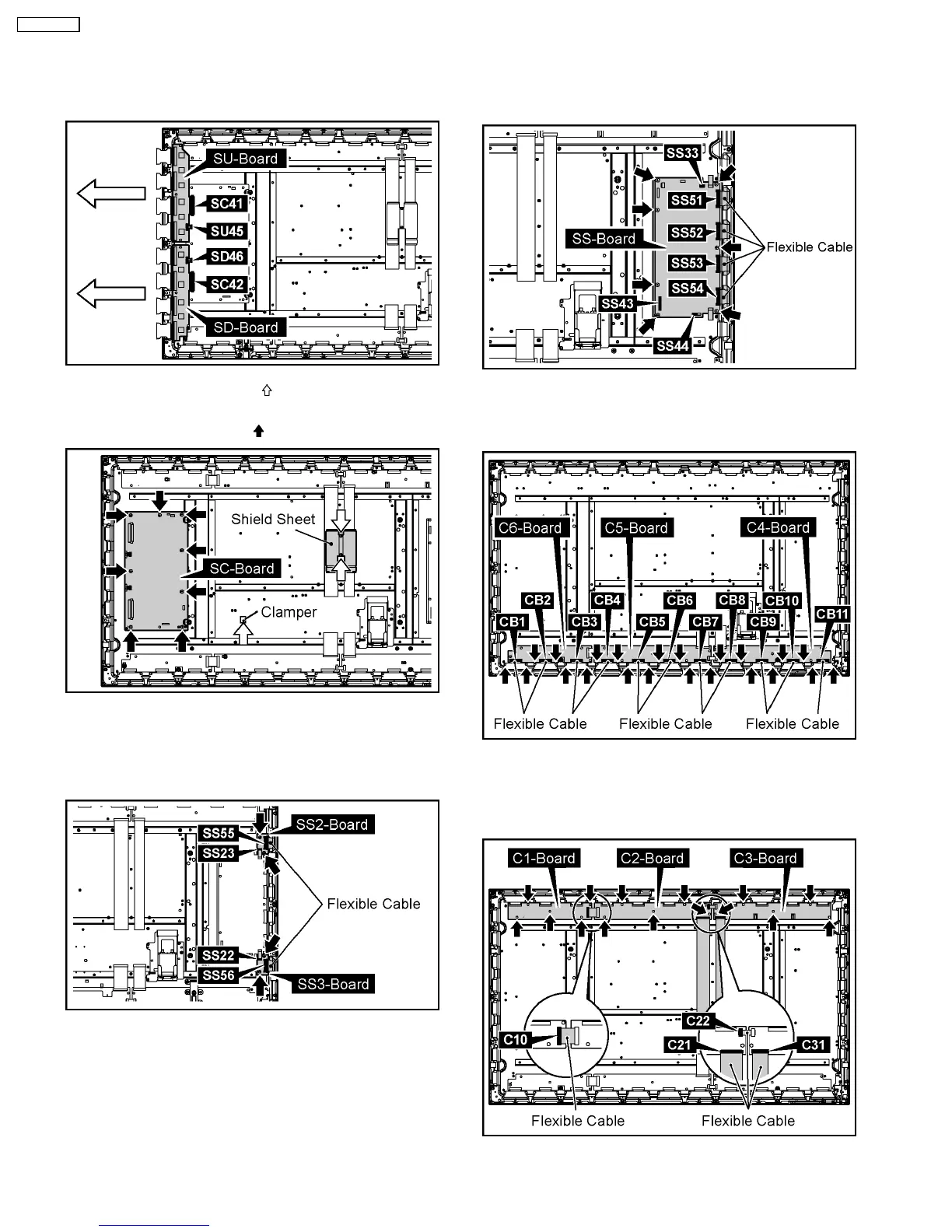

17. Disconnect the couplers(SU45, SD46).
18. Slide the SU-Board and the SD-Board to the left, remove
the SU-Board and the SD-Board from the couplers(SC41,
SC42).
19. Remove the 2 screws and ( ) then remove the Clamper
and the Shield Sheet.
20. Remove the 9 screws and (
) then remove the SC-Board.
21. Disconnect the couplers(S22, S23).
22. Remove the Flexible Cable from the couplers(S55, S56).
23. Remove 2 screws each and then remove the SS2-
Board and the SS-3Board.
24. Disconnect the couplers(SS33, SS43, SS44).
25. Remove the Flexible Cable from the couplers(SS51, SS52,
SS53, SS54).
26. Remove the 7 screws and then remove the SS-Board.
27. Remove the 22 screws.
28. Remove the Flexible Cable from the couplers(CA1, CA2,
CA3, CA4, CA5, CA6, CA7, CA8, CA9, CA10, CA11).
29. Remove the Flexible Cable from the couplers(C10, C21,
C22, C31).
30. Remove 5 screws each and then remove the C1-Board,
the C2-Board and the C3-Board.
18
TH-50PH9UK
To Next Page
