Playback on Other Devices
This section explains about playback on another AV device, such as TV.
Connecting to a TV

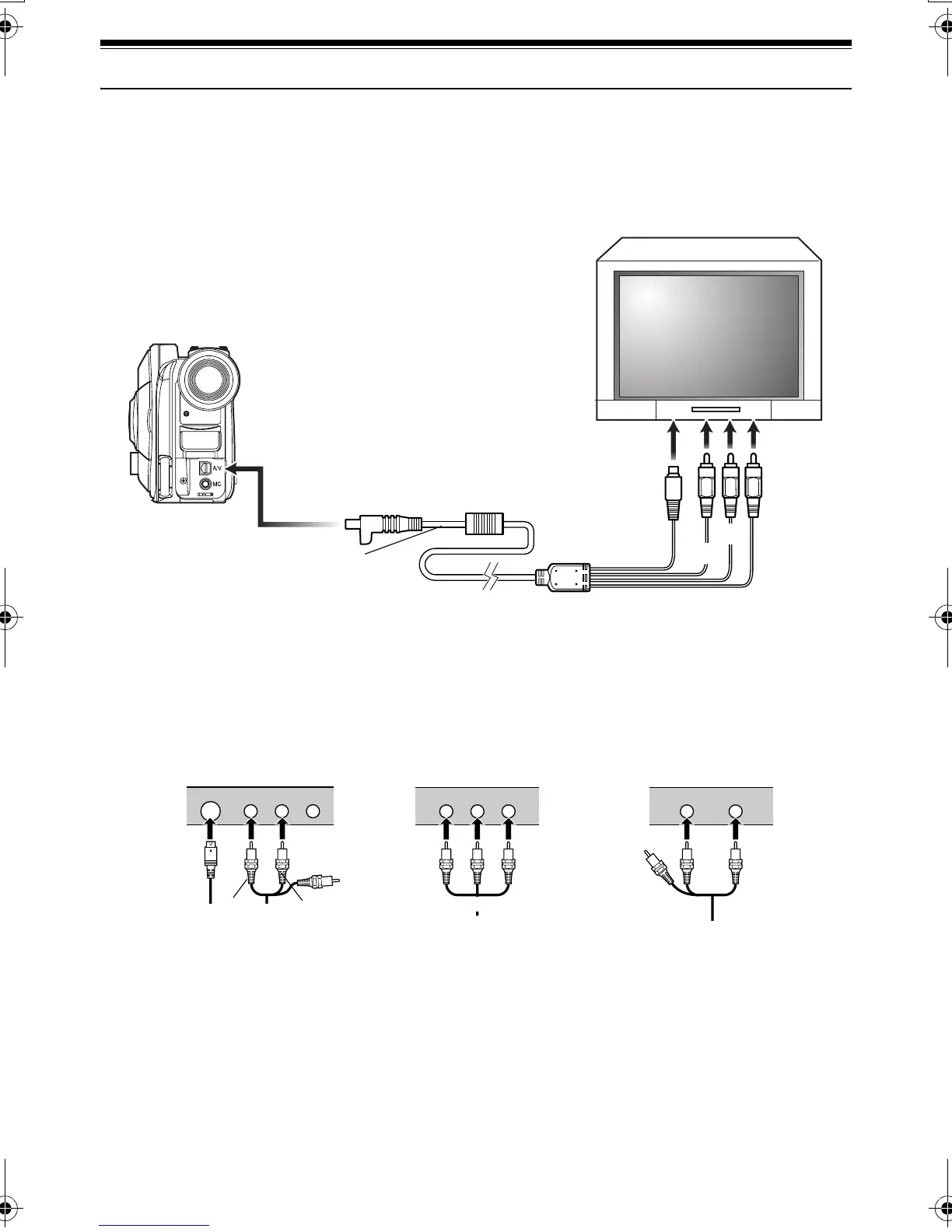

Use the provided AV/S input/output cable to connect the DVD Palmcorder to a TV as follows:
* If your TV has an S-VIDEO input jack, you can connect the S-VIDEO plug to it.
Note:
• Using S-VIDEO will deliver clearer playback status.
• Before connecting, make sure that the volume on TV is
turned down: Forgetting this may cause howling from the
TV speakers.
• Carefully connect the input and output cables to the
corresponding connection on the device the DVD
Palmcorder is being used with.
To AV input/output jack
AV/S input/output cable
(provided)
To video/
audio input
jacks
Red
Yellow
White
To S-video
input jack*
S-VIDEO VIDEOAUDIO
LR
Stereo Type with
S-VIDEO Jack
Stereo Type
Monaural Type
Red White
Red
YellowWhite
White
Yellow
