Parker 6K8 - 24 VDC Power Input

Chapter 1. Installation 29

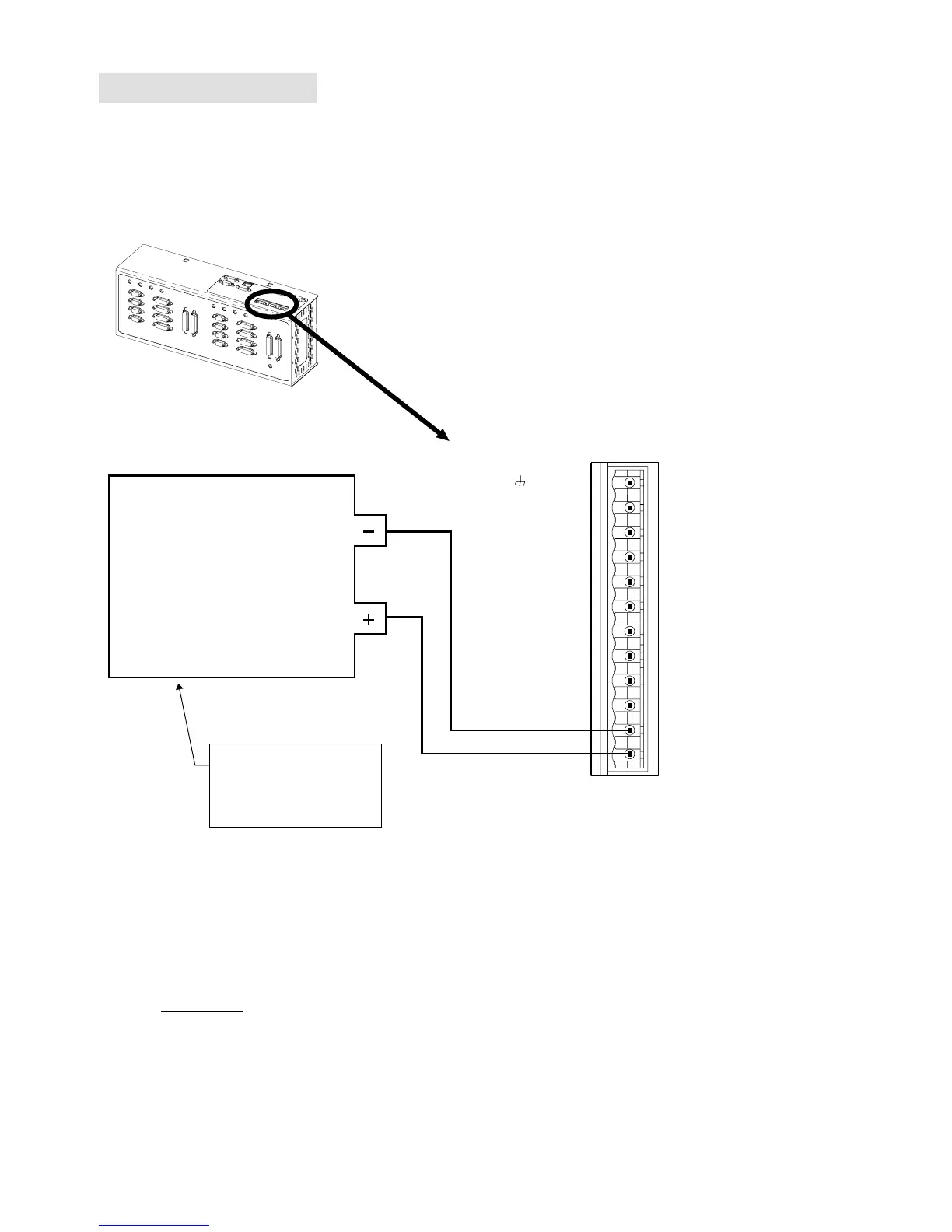

24VDC Power Input
SHIELD
GND
ENABLE
OUT DIODE
MASTER TRIG
GND
CNTRL-P
LIM-P
TRIG-P
VINref
24 VDC RTN
+24 VDC PWR
External
+24VDC
Supply
Specification: ±10%, 2A maximum.
(current requirements depend on
type and amount of I/O used)
Guide to Power Requirements
6K2 or 6K4...................... 24 Watts (1A @ 24VDC)
6K6 or 6K8...................... 36 Watts (1.5A @ 24VDC)
For each encoder............ Add 1.5 Watts
For each output............... Add
≤
7.5 Watts (up to 300mA/output)
For example, a 6K4 with 4 encoders connected and 4 digital outputs
(300mA @ 224VDC) requires 60 Watts of power.
The “PS-60W” is an optional
power supply which can be
ordered separately. It
provides 60 Watts of power
(2.5A @ 25VDC).
