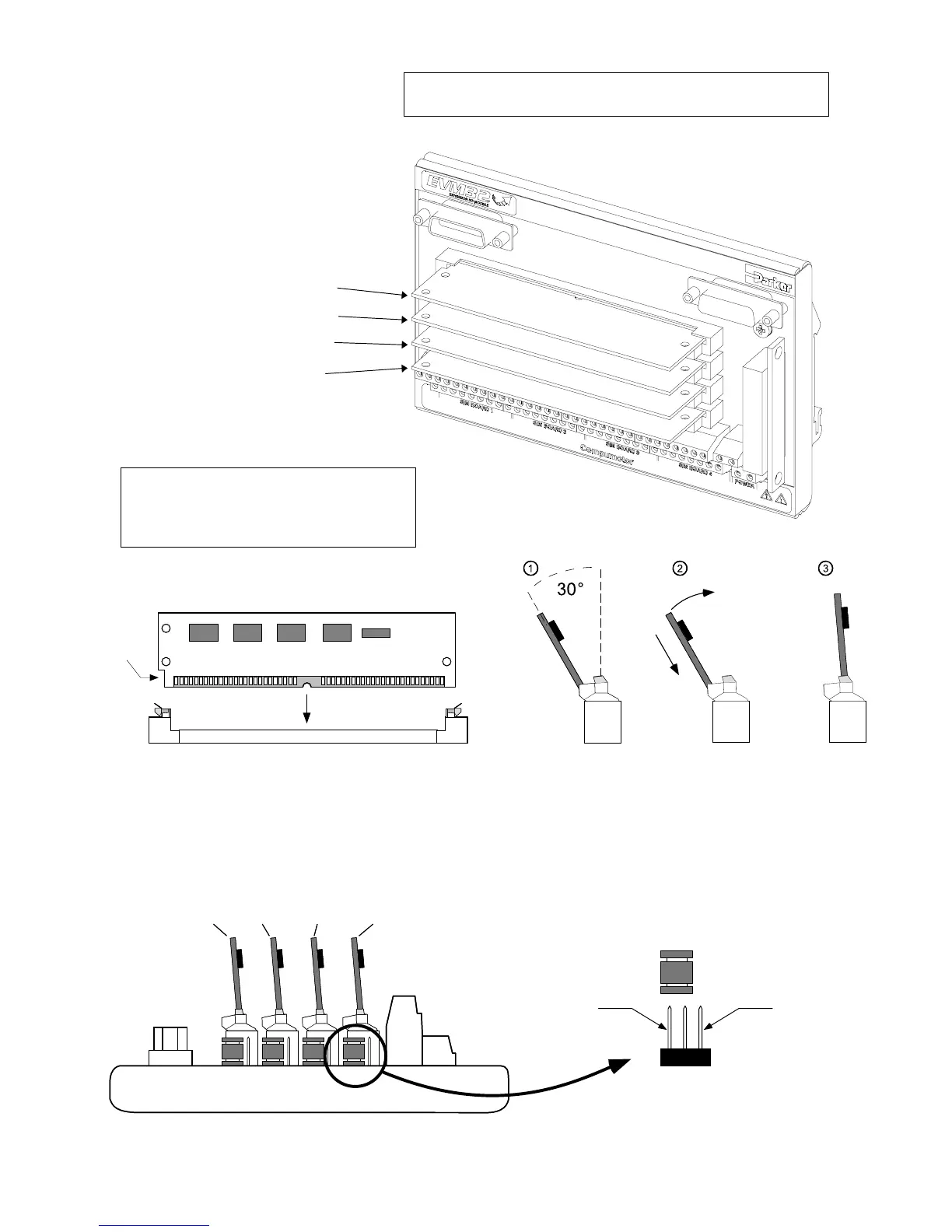

Installing the SIM Boards
Notch
Setting Jumpers (selecting sinking/sourcing)
SIM1
(1-8)
SIM2
(9-16)
SIM3
(17-24)
SIM4
(25-32)
JU1JU2JU3JU4
Position 3
selects sinking
(factory default setting)
3 2 1
NOTE: The jumper setting affects only digital inputs (SIM8-IN)
and digital outputs (SIM8-OUT-VM32).
Position 1
selects sourcing
SIM slot for I/O points 25-32
SIM slot for I/O points 17-24
SIM slot for I/O points 9-16
SIM slot for I/O points 1-8
SIM Board Color Codes
SIM8-IN (digital inputs).......................RED
SIM8-OUT-EVM32 (digital outputs)....BLUE
SIM8-AN-IN (analog inputs) ...............GREEN
CAUTION:
Remove power to the EMV32 baseboard before installing or
removing SIM boards.
