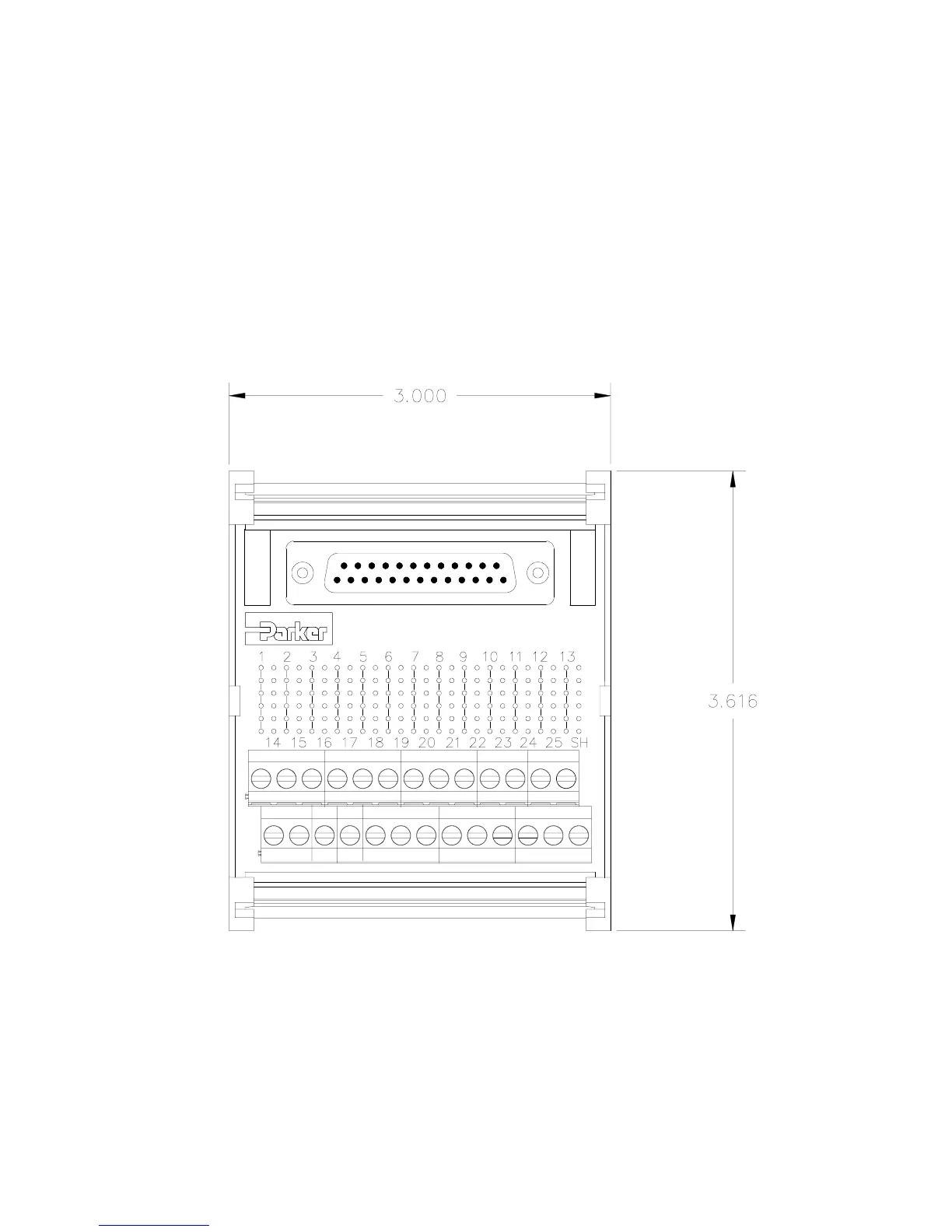

Appendix A. VM25 Installation
The VM25 provides screw-terminal connections for the I/O on the 25-pin connectors, which are the
“
TRIGGERS/OUTPUTS
” and “
LIMITS/HOME
” connectors. The VM25 comes with a 2-foot cable that
provides easy connection between the VM25 and the 6K’s 25-pin connector. The VM25 is ordered
separately (part number is “VM25”).
9058
(275.54)
(91.85)
