Appendix B. EVM32 Installation
EVM32 Description
The EVM32 is a family of I/O modules (or “bricks”) that is sold as accessories to the 6K
Controllers. The purpose of the EVM32 is to provide more I/O than the 6K offers onboard.
Up to eight DIN-rail mountable EVM32 bricks can be connected in a serial chain to the 6K.
Each EVM32 brick can hold from 1 to 4 of these I/O SIM boards in any combination (each
SIM board provides 8 I/O points, for a total of 32 I/O points per I/O brick):
• Digital inputs
• Digital outputs
• Analog inputs
Order an EVM32 brick and up to four I/O SIM boards per brick (see table below).
Product (p/n) Description
EVM32-Base............ EVM32 baseboard, extrusion with built-in DIN rail mount (includes 2-foot cable).
SIM8-IN.................... SIM board with 8 digital inputs. Color code: RED.
SIM8-OUT-EVM32... SIM board with 8 digital outputs. Color code: BLUE.
SIM8-AN-IN.............. SIM board with 8 analog inputs (12-bit,
±
10V inputs). Color code: GREEN.
71-016949-02........... 2-foot cable for connection to 6K or between I/O bricks (included with EVM32-BASE).
71-016949-100......... 100-foot cable for connection to 6K or between I/O bricks.

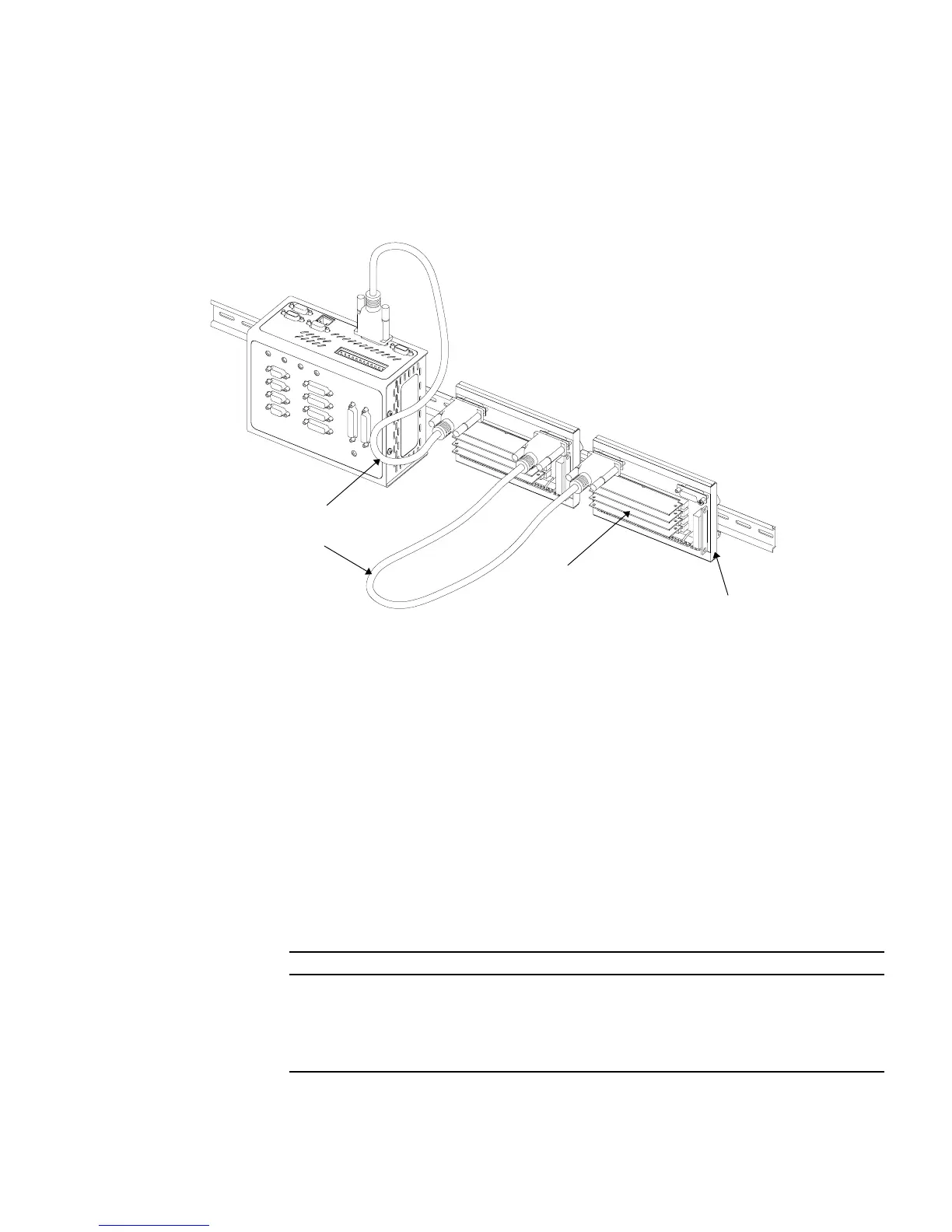

Baseboard (EVM32-BASE).
SIM boards are
ordered separately
from the baseboard.
2-foot (0.61 m) cable is
provided with the baseboard
(EVM32-BASE).
Connect to the 6K’s “EXPANSION I/O”
connector (use the provided cable).
EVM32 Brick #2
(2
nd
unit in serial chain)
EVM32 Brick #1
(1
st
unit in serial chain)
