8. Cable Use Cases
This section describes Aries8 and Aries8 Pro Smart Tablet-compatible cables, their part numbers, and
their use cases. Note that for wireless communication only, no cable is necessary.

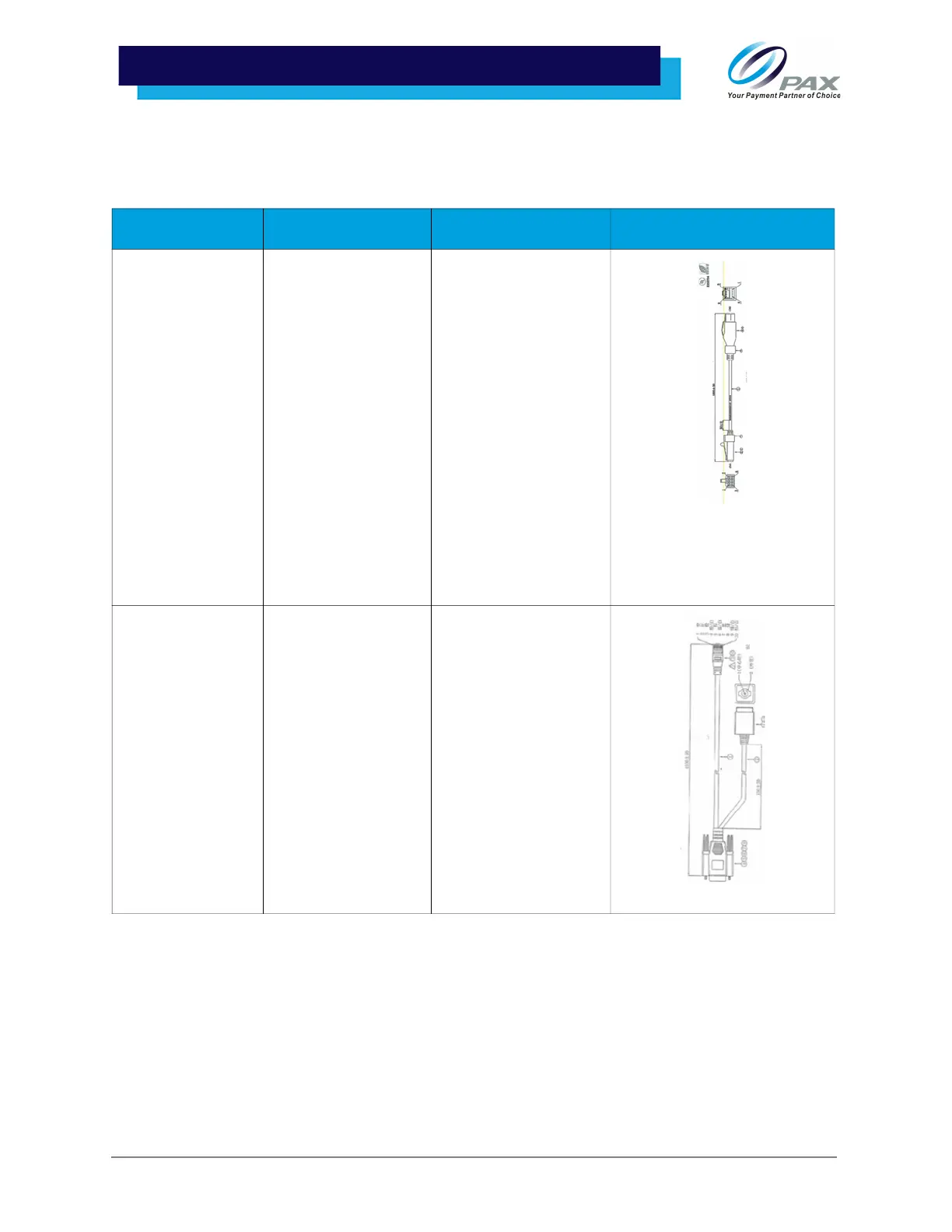

Cable Part Number Use Case Image
12v PUSB Cable 200204020000142 Works as Data and
Power Cable; Plugs
into Communication
Box while POS 12v
PUSB plugs into POS
cable (green port) for
power.
Please Note: Cable still
requires use of Aries
Power Cable and
Supply. With Aries
Power Cable and
Supply, Aries USB w/
Pig Tail Input can be
used with the
Communication Box.
RS232 PX Cable w/
Pig-Tail Input
200204020000140 Works as Serial
Communication Cable;
Plugs into
Communication Box or
Integrated Plate.
Please Note: Cable
does NOT supply
power to Aries8 Tablet;
the polarity inside the
plug is different. When
in use, tablet’s plate
must connect to Aries
power cable for power.
