Peleman Flat Bed Foil Printer - Type 1 A and 1 B; Figure 68: Dimensions of Double Side Cover with Window

Flat Bed Foil Printer User Guide
Peleman Industries
76
10.2.1 Type 1a and 1b
• a: up to 310 mm
• b, d: max. printing
length 350 mm
• c: 5 mm – 36 mm
• e: 0.1 mm - max 25
mm
• f: max. 25 mm
• e+f: max. 25 mm

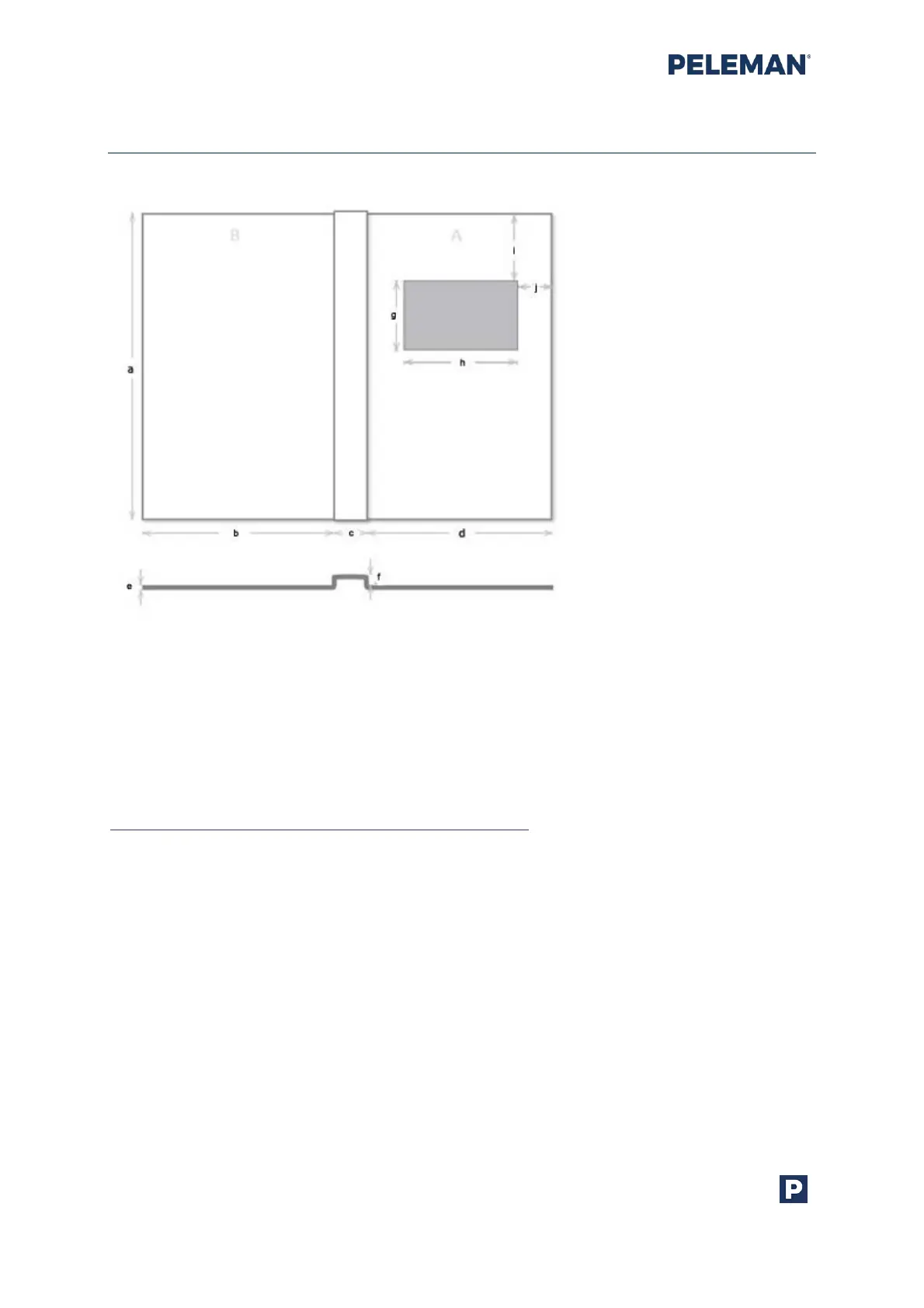

Figure 68: Dimensions of Double
Side Cover with Window
• Page height cannot be larger than 350 mm.
• Window cannot be wider or larger than the object.
• Window cannot be placed outside the object.
If any of the following checks applies, error is displayed:
1. a <= 8
2. a > 304 and b + c + d > 430
3. b < 5 and c < 6 and d < 5
4. a > 600
5. b > 430 and d > 430
6. c > 430
7. a > 304 and (b > 304 or d > 304)
8. g > a
9. g <= 0
10. h <= 0
11. h > (b + c + d)
12. i <= 0
13. (i + g) > a
14. J <= 0
15. (j + h) > (b + c + d)
