10.2.2 Type 2a
• a: up to 480 mm (printed area up to 300mm)
• b: max. length 480 mm (printed area up to 450mm)
• c: 0.1 mm - max 25 mm

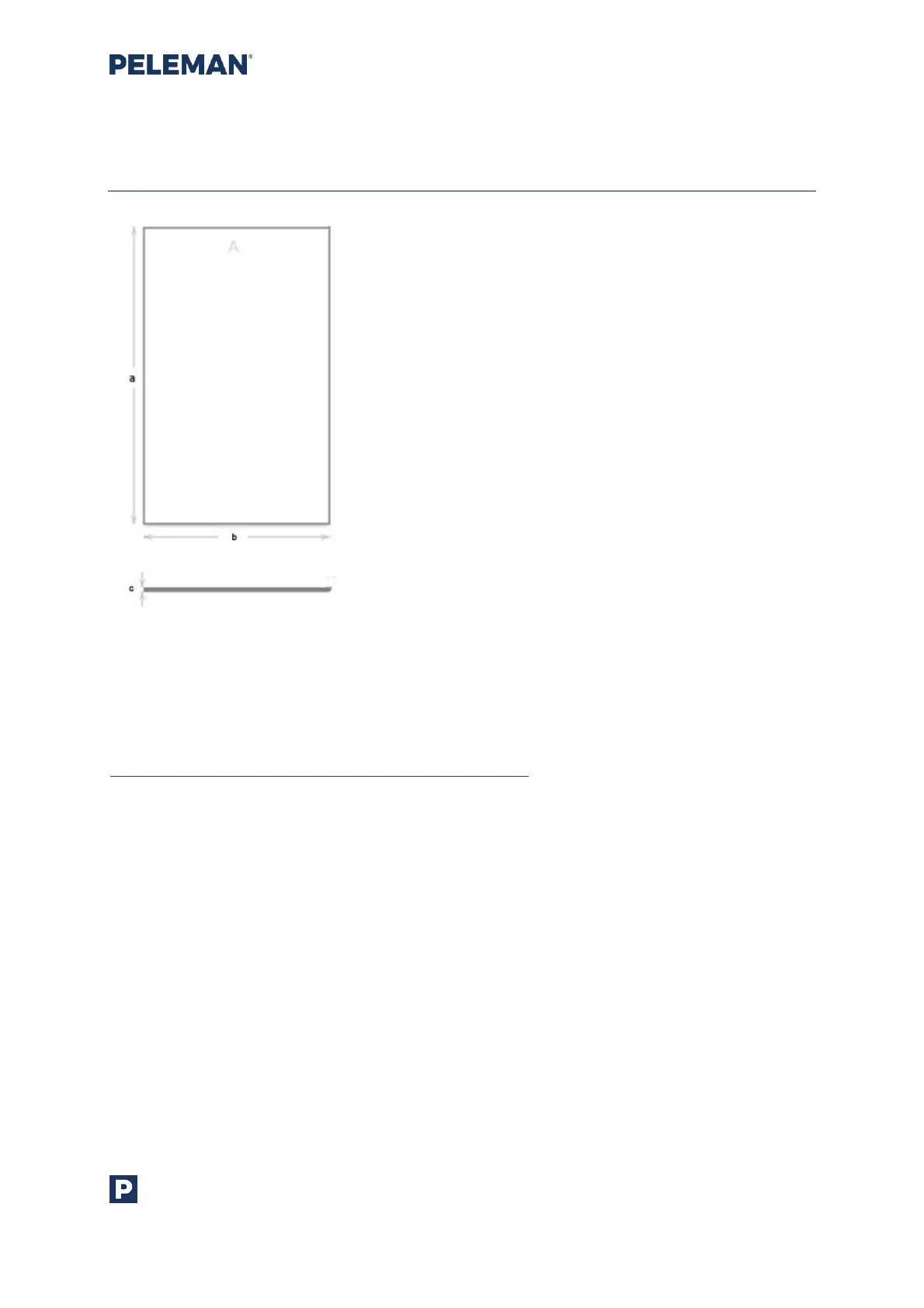

Figure 69: Dimensions of Single Side Cover
Page height cannot be larger than 480 mm.
If any of the following checks applies, error is displayed:
1. a <= 8
2. a > 480 and b > 480
3. b < 5
4. b > 480
5. a > 480 and b > 480
