Replacing the Source
If there is a Recommended Action to replace the source in the Component Checks, you will
require the source replacement kit (part number L1390110). The kit contains a replacement
source and source-doubling mirror assembly, and a 2.5 mm hexagonal wrench.
To replace the source, the instrument must be switched on and you must be connected to
the instrument in Spectrum, Spectrum ES or AssureID software. You can start the Source
Replacement Wizard from the Adjustments Toolbox or, if the Component Checks identify
Source Failure as a problem, by selecting Run Source Replacement Wizard on the dialog.
NOTE: In AssureID software, the Adjustments Toolbox is available from the Configure
Instruments and Accessories group on the Tools menu.
CAUTION
ATTENTION
The source element is brittle and can be broken if not handled properly.
Be careful when removing and installing the source.
Before starting the source replacement procedure, ensure that you have
the source replacement kit available to minimize the amount of time that
the source compartment is open.
L'élément source est fragile et peut être brisé s'il n'est pas manipulé
correctement. Faites attention lorsque vous retirez et installez la source.
Avant de commencer la procédure de remplacement de la source,
assurez-vous que le kit de remplacement source est disponible pour
minimiser le temps pendant lequel le compartiment source est ouvert.
To replace the source:
1. Select Instrument from the Setup Menu in Spectrum software.
The Setup Instrument tabs are displayed.
2. Select the Setup Instrument Advanced tab and then click Adjustments Toolbox.

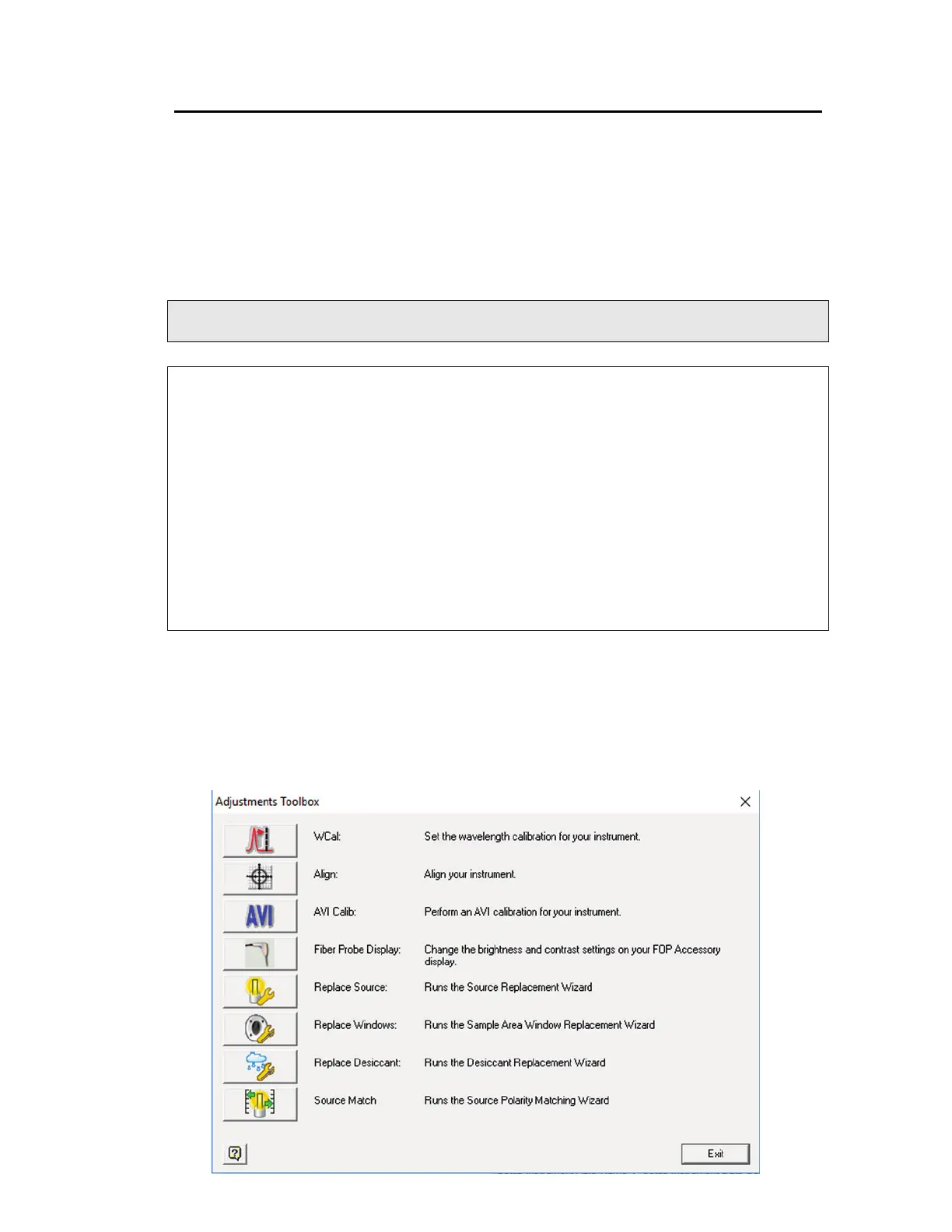

The Adjustments Toolbox dialog is displayed.
