12 KENR6933
Troubleshooting Section
Table 2
Part Number Description
U5MK1092
Spoon Probe Kit(MULTIMETER)
-
or
-
Suitable Digital Pressure Indicator
or
Engine Pressure Group
-
Suitable Battery Load Tester
-
Suitable Temperature Adapter
(MULTIMETER)
28170107
Bypass Harnes
sAs
2900A038
Harness As
Perkins E lect
ronic S ervice Tool
The Perkins Electronic Service Tool can display the
following inf
ormation:
•
Status of all pressure sensors and temperature
sensors
•
Programmable parameter settings
•
Active diagnostic codes and logged diagnostic
codes
•
Logged events
•
Histograms
The Electronic Service Tool can also be used to
perform the f
ollowing functions:
•
Diagnostic tests
•
Sensor calibrations
•
Programming
of flash files
•
Parameter programming
•
Copy configuration function for ECM replacement
•
Data logging
•
Graphs (real time)
Table 3 lists the service tools that are required in
order to use the Electronic Service Tool.
Table 3
Service Tools for the Use of the Electronic
Service Tool
Part
Number
Description
-
(1)
Single Use Program License
-
(1)
Data Subscription for All Engines
27610251
Communication Adapter (Electronic
Service Tool to ECM interface)
27610164
Adapter Cable As
(1)
Refer to Perkins E ngine C ompany L imited.
Note: For more information regarding the use of the
Electronic Service Tool and the PC requirements
for the Electronic Service Tool, refer to the
documentation that accompanies your Perkins
Electronic Service Tool software.
Connecting the Electronic Service Tool
and the Co mmun ication Adapter II

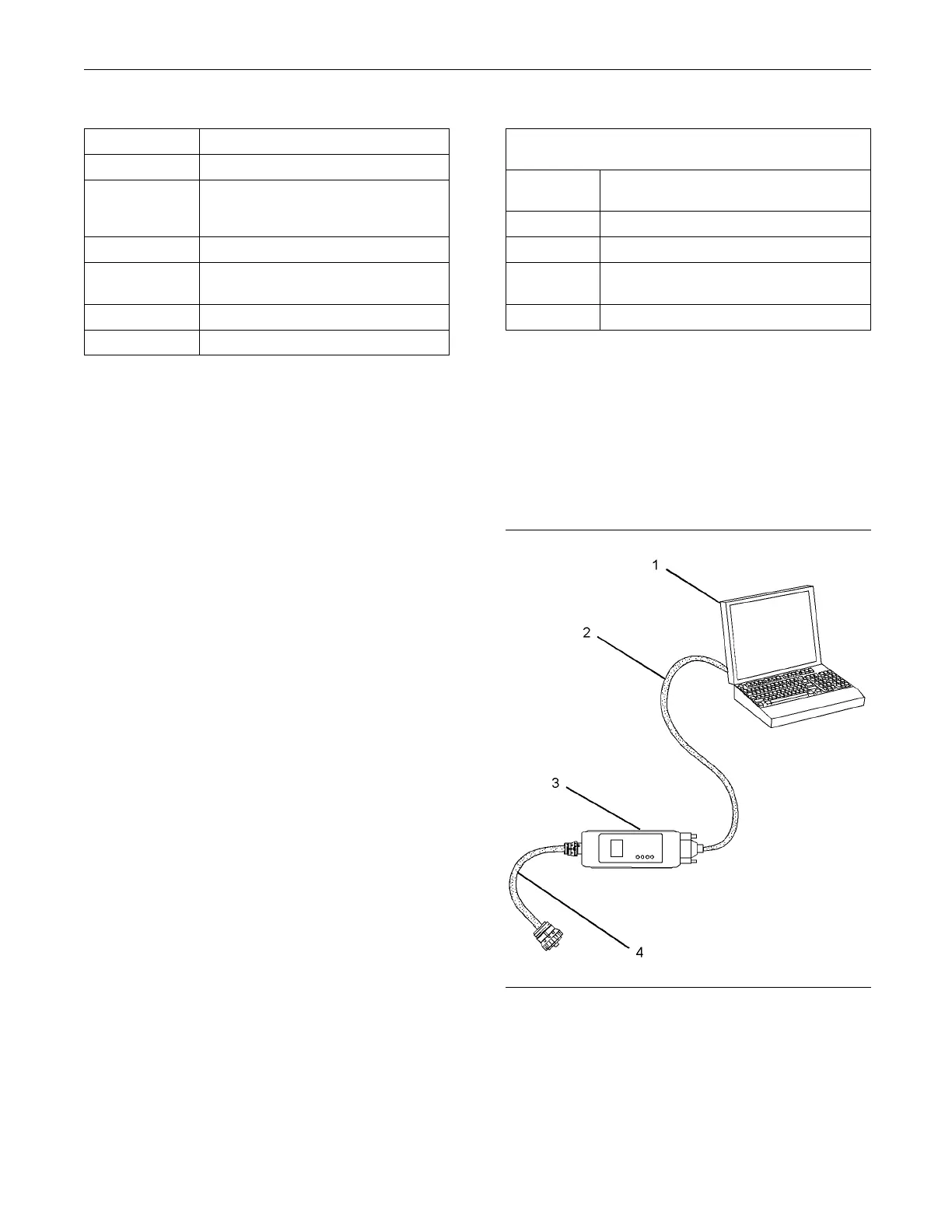

g01121866
Illustration 3
(1) Personal C omputer (PC)
(2) Adapter Cable (Computer Serial Po rt)
(3) Commu nication Adapter II
(4) Adapter Cable Assembly
Note: Items (2), (3) and (4) are part of the
Communication Adapter II kit.
