Perkins 1106C - Page 151

KENR6933 151
Troubleshooting Section
g01245123

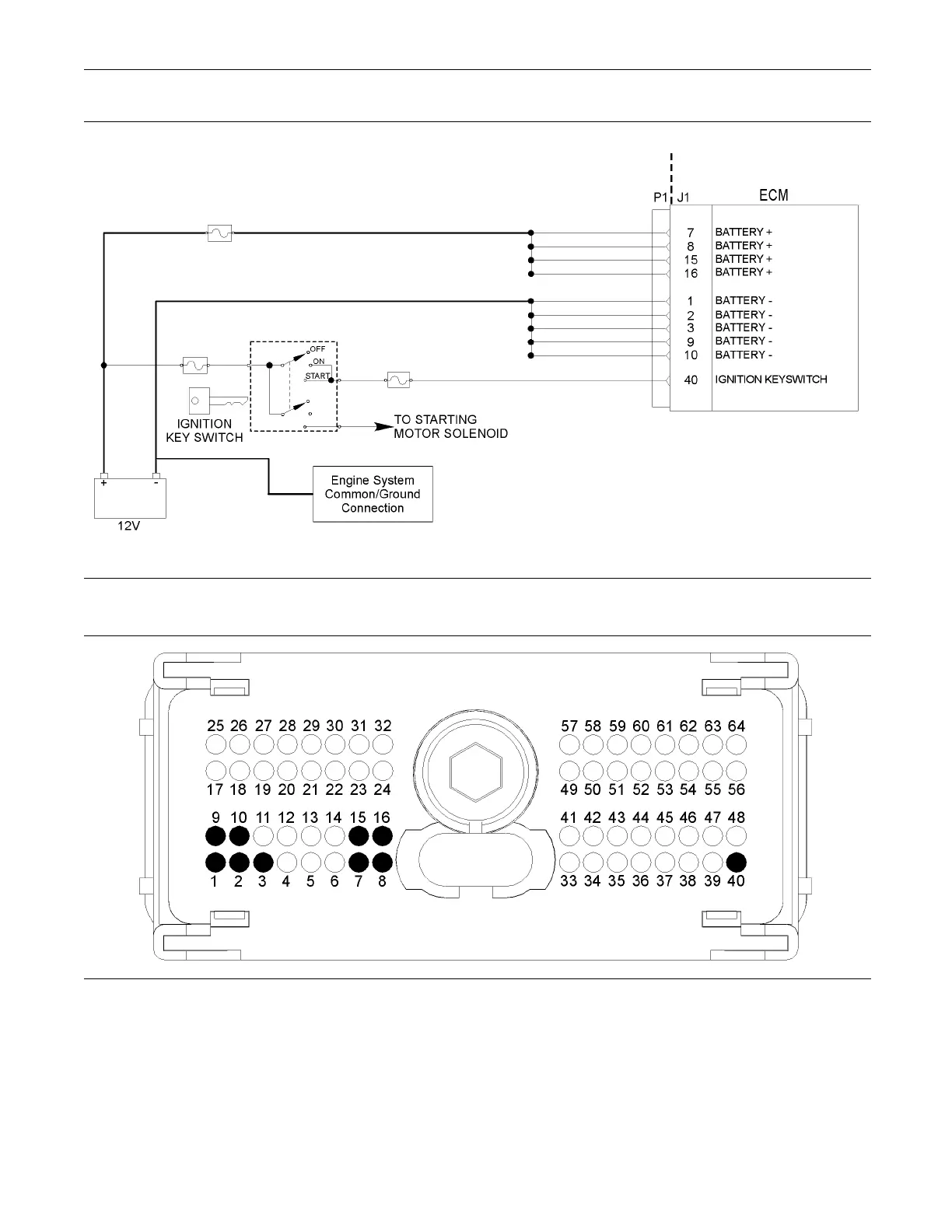

Illustrat
ion 54
Schematic for the ignition keyswitch and battery supply circu it
g01193796
Illustration 55
Typical rear view of the pin locations for the ignition keyswitch and battery s upply circuit
(1) Battery ground (GND)
(2) Battery ground (GND)
(3) Battery ground (GND)
(7) Battery (+)
(8) Battery (+)
(9) Battery ground (GND)
(10) Battery ground (GND)
(15) Battery ground (+)
(16) Battery ground (+)
(40) Ignition key switch
