Perkins 1106C - Page 162

162 KENR6933
Troubleshooting Section
g01336711

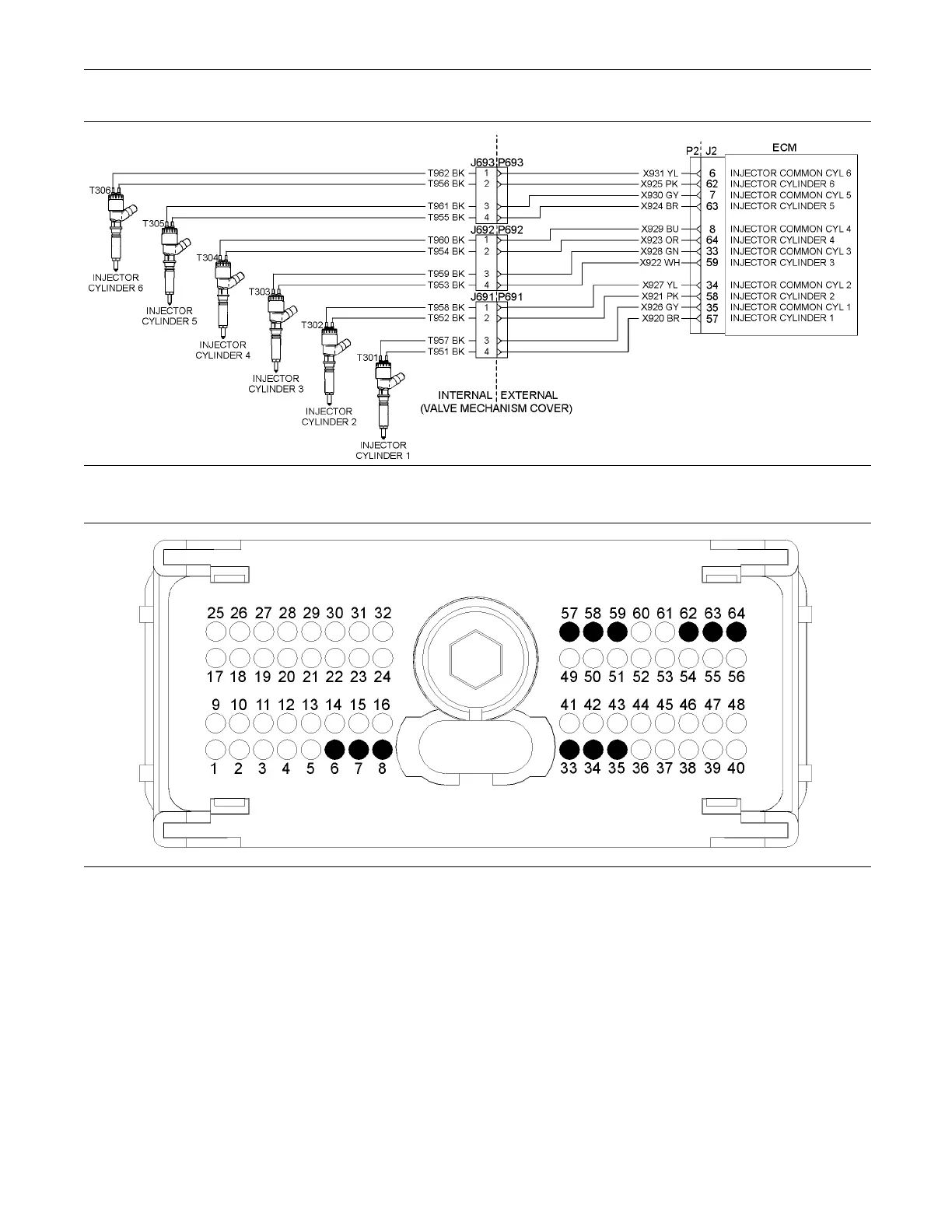

Illustration 61
Schematic for the injector solenoid c ircuit for the 1106C Genset
g01171366
Illustration 62
P2 pin connections fo r the 1106C Genset
(57) Injector Cylinder (Num ber 1)
(35) Injector Cylinder (Number 1 Return)
(58) Injector Cylinder (Num ber 2)
(34) Injector Cylinder (Number 2 Return)
(59) Injector Cylinder (Number 3)
(33) Injector Cylinder (Number 3 Return)
(64) Injector Cylinder (Number 4)
(8) Injector Cylinder (N umber 4 Return)
(63) Injector Cylinder (Number 5)
(7) Injector Cylinder ( Number 5 Return)
(62) Injector Cylinder (Number 6)
(6) Injector Cylinder ( Number 6 Return)
