18 KENR6933
Troubleshooting Section
g01178874

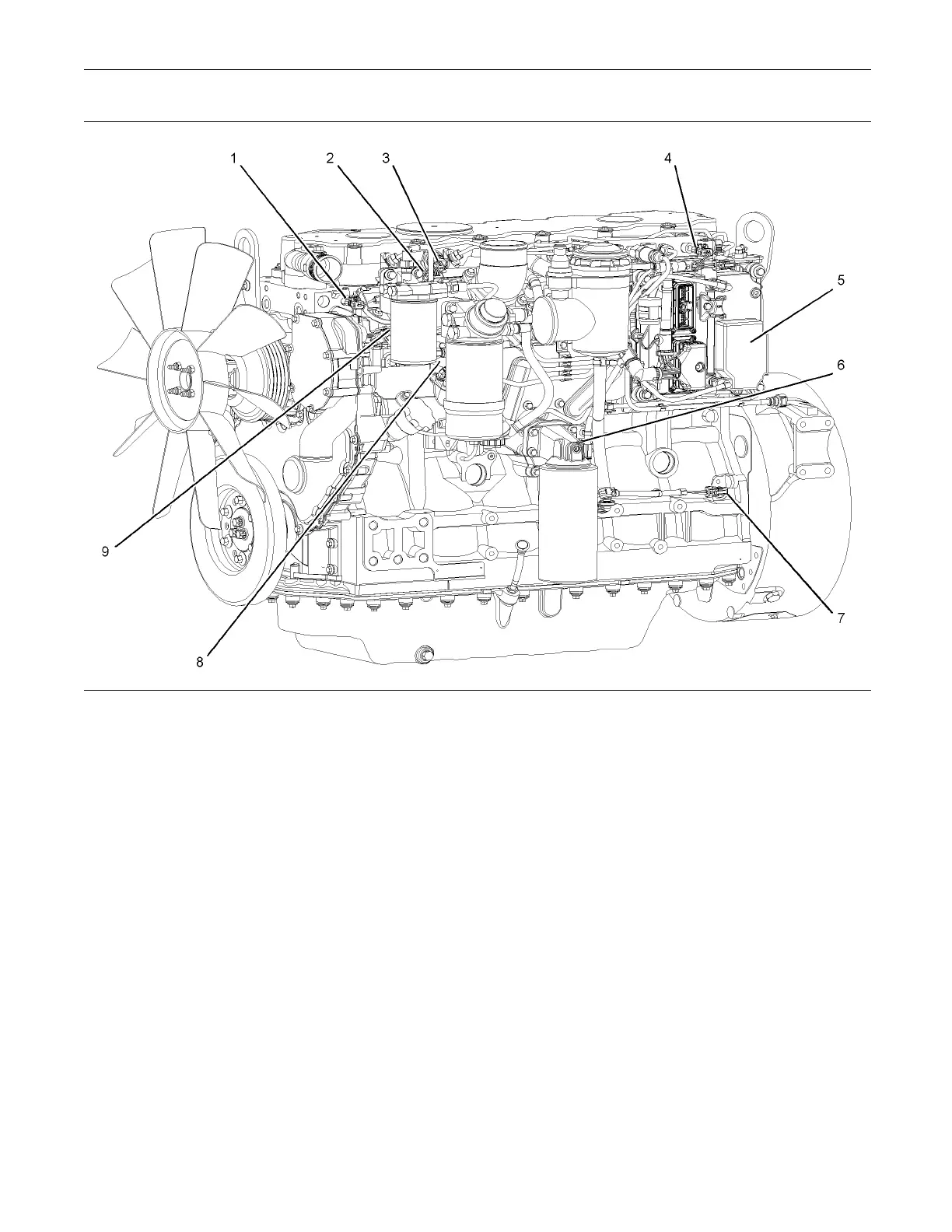

Illustration 5
(1) Coolant Temperature Sensor
(2) Intake Manifold Temperature Sensor
(3) Intake Manifold Pressure Sensor
(4) Fuel Rail Pressure Sensor
(5) E lectronic Control Module (ECM)
(6) Oil Pressure Sensor
(7) Primary Speed/Timing Senso r
(8) Secondary Speed/Timing Sensor
(9) Solenoid for the Fu el Rail Pump
Note: If equipped, the wastegate regulator is installed
on the right side of the engine.
