Perkins 1204-E44TA

To Next Page

To Previous Page

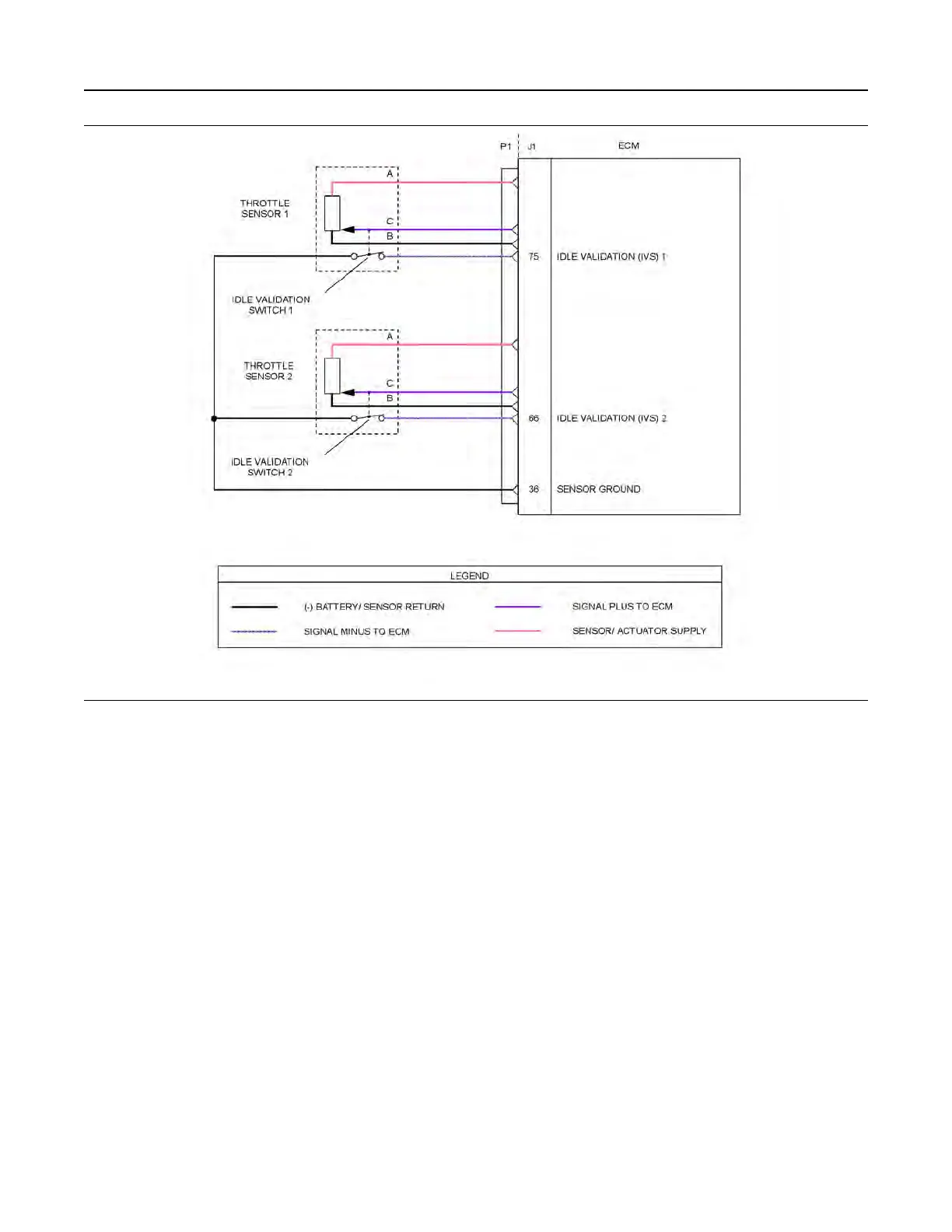

Illustration 114 g03712853

Schematic of the IVS circuit

Not all connectors are shown. Refer to the appropriate Electrical Schematic

336 UENR4469-36

Circuit Tests
