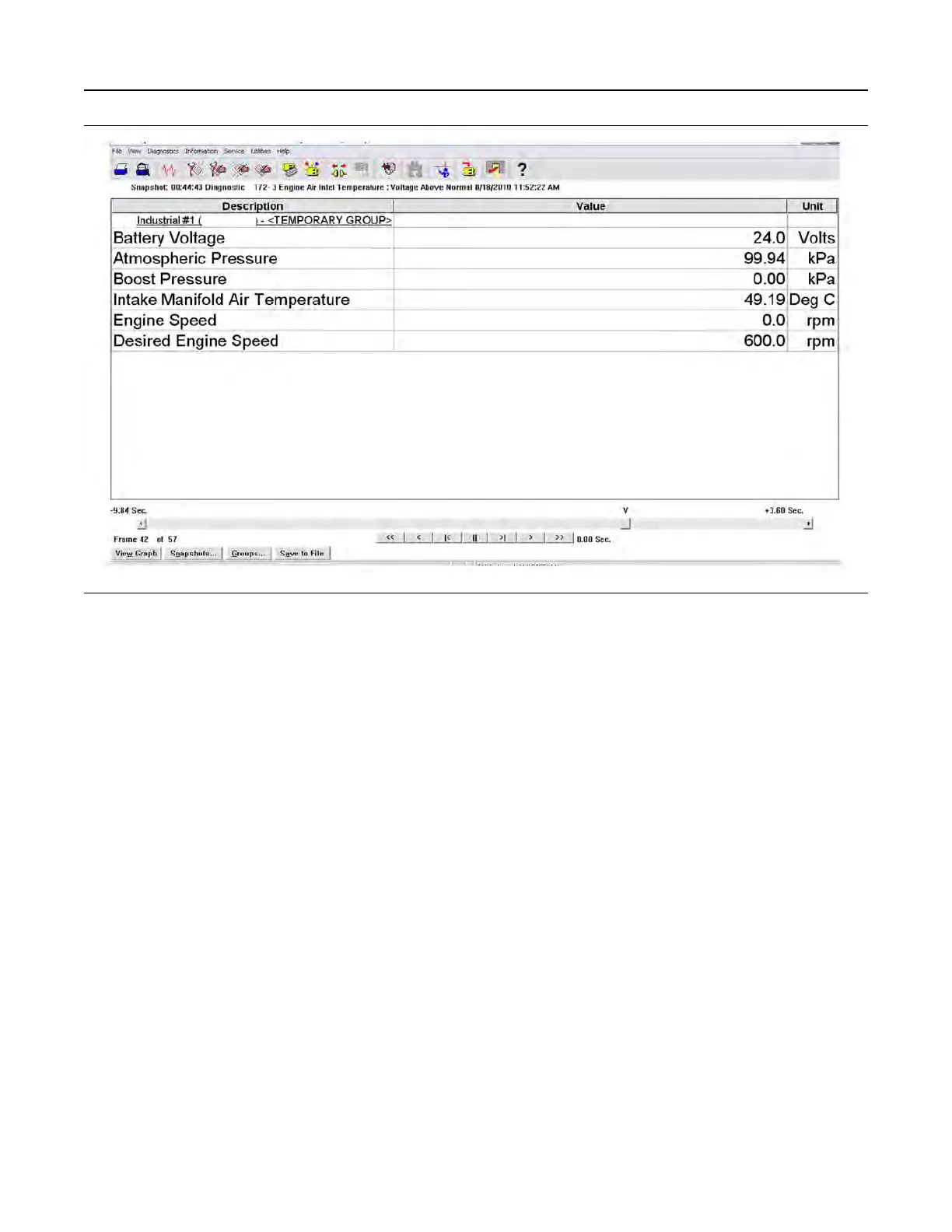

Illustration 164 g03826870

5. The sliding time bar indicates when the diagnostic

trouble code was recorded. Data can be viewed

9.5 seconds before and 3.5 seconds after the time

the code was recorded.

UENR4469-36 467
