Perkins 1204-E44TA

To Next Page

To Previous Page

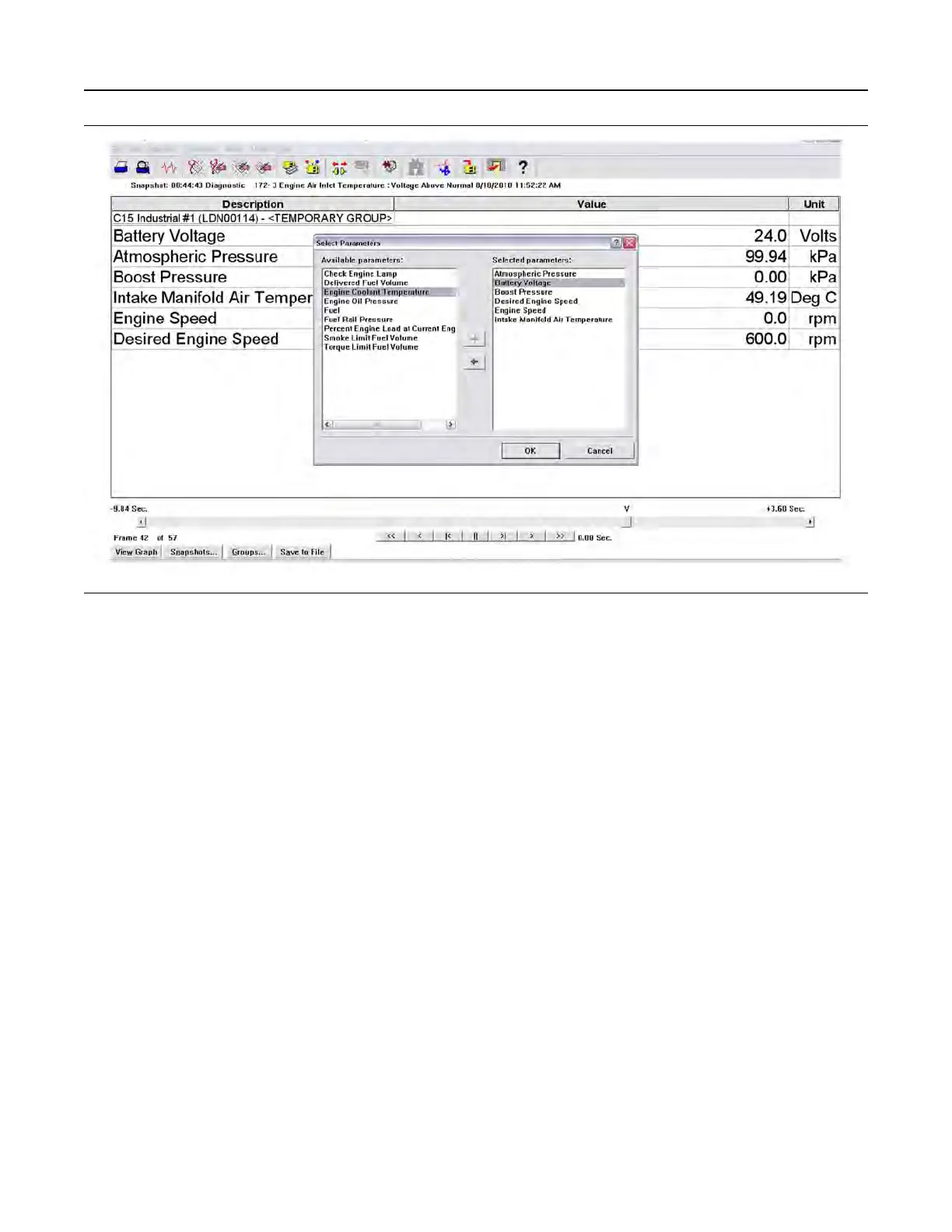

Illustration 165 g03826871

6. Select the “View Graph” tab for graphic

illustrations. Select the channels to be viewed and

then select “OK” .

468 UENR4469-36
