PFT G4 - Power and water supply

Mixing Pump PFT G4
Technical data
22 2007-09-05
Pos: 3.7 /KN2006-Pr ojekte/Knauf/Techni sche Daten/Mischpu mpe PFT G4/1.1 Anschluss werte_Titel @ 43\mod_118 4947694693_293361. doc @ 515814
3.2 Power and water supply
Pos: 3.8 /KN2006-Pr ojekte/Knauf/Techni sche Daten/Mischpu mpe PFT G4/Wasseranschluß @ 12\ mod_1152018923271_2 93361.doc @ 298800
Water connection
Specification Value Unit
Operating pressure, min. 2.5
(36.3
bar
psi)
Connection 3/4 inches
Pos: 3.9 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 293763
Pos: 3.10 /KN2006-Pr ojekte/Knauf/Techni sche Daten/Mischpu mpe PFT G4/Elektrische Ansc hlußwerte @ 12\mod_11 52017745783_2933 61.doc @ 298793
Power supply
Specification Value Unit
Voltage, three-phase 60 Hz 230 V
Current consumption, maximum 32 A
Power consumption, maximum 8 kW
Fusing 3 x 25 A
Drive pump motor 5,5 kW
Drive - cellular wheel motor 0,75 kW
Speed pump motor approx. 400 rpm
Speed - cellular wheel motor 28 rpm
Current consumption pump motor * 11,5 A
Current consumption cellular
wheel motor *
2,2 A
* at 400 V
Pos: 3.11 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 293763
Pos: 3.12 /KN2006-Pr ojekte/Knauf/Techni sche Daten/Mischpu mpe PFT G4/Motorschutz @ 36\ mod_1177326600188_2 93361.doc @ 445217

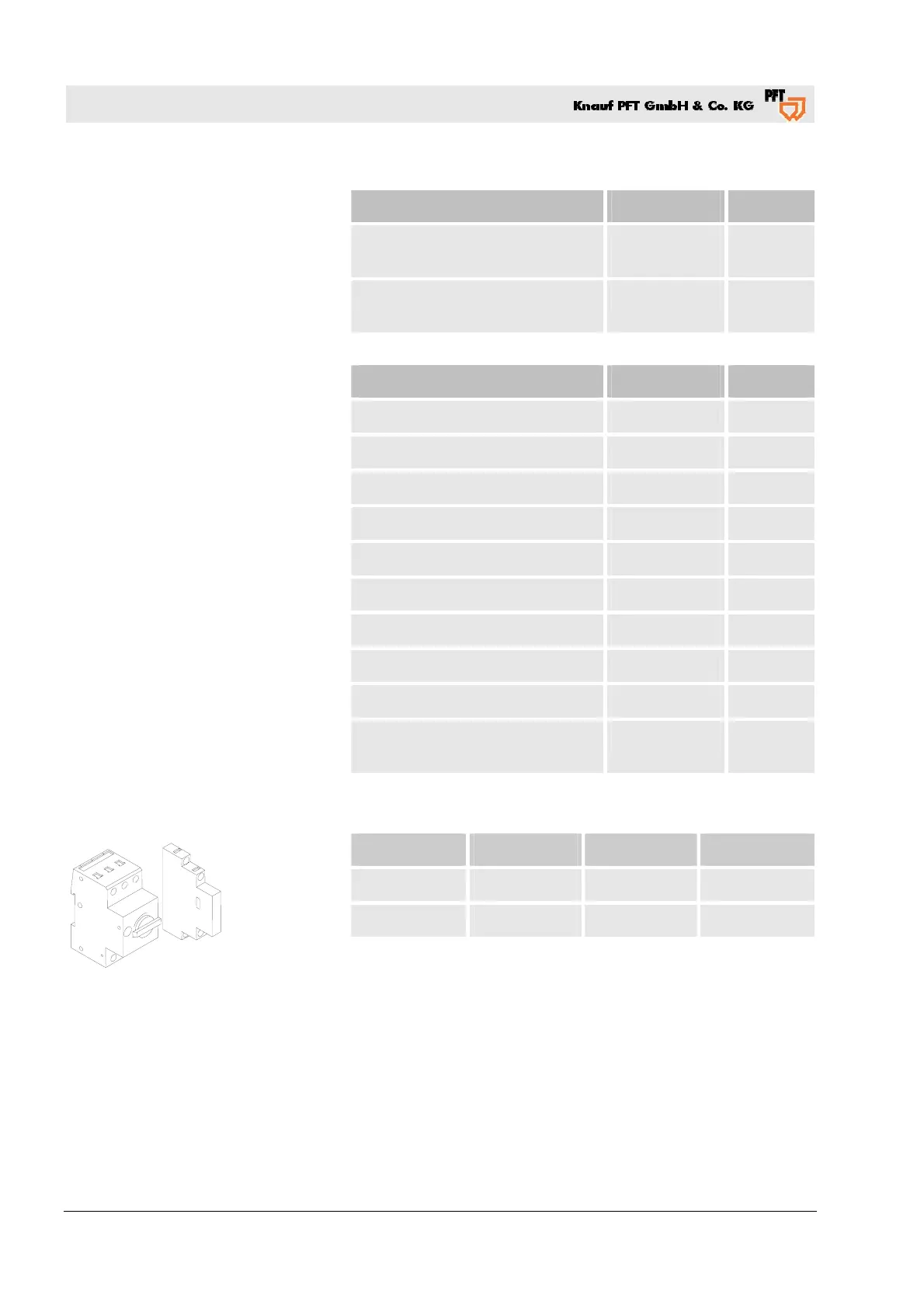

Fig. 3: Motor protection switch
Output Set value Designation
Cellular wheel 0.75 kW 3.2 A Q3
Mixer motor 5.5 kW 19.0 A Q2
