PFT G4 - Measures in the event of power failure; Measures if the water supply fails

Mixing Pump PFT G4
Troubleshooting
2007-09-05 61
Pos: 7.25 /KN2006-Pr ojekte/Knauf/Störu ngen/Mischpumpe PFT G4/1. 1.1 Maßnahmen bei Str omausfall_ANSI @ 37\mod_117 7408601419_293361. doc @ 447759
7.4.2 Measures in the event of power failure
 To be performed by a service technician only.

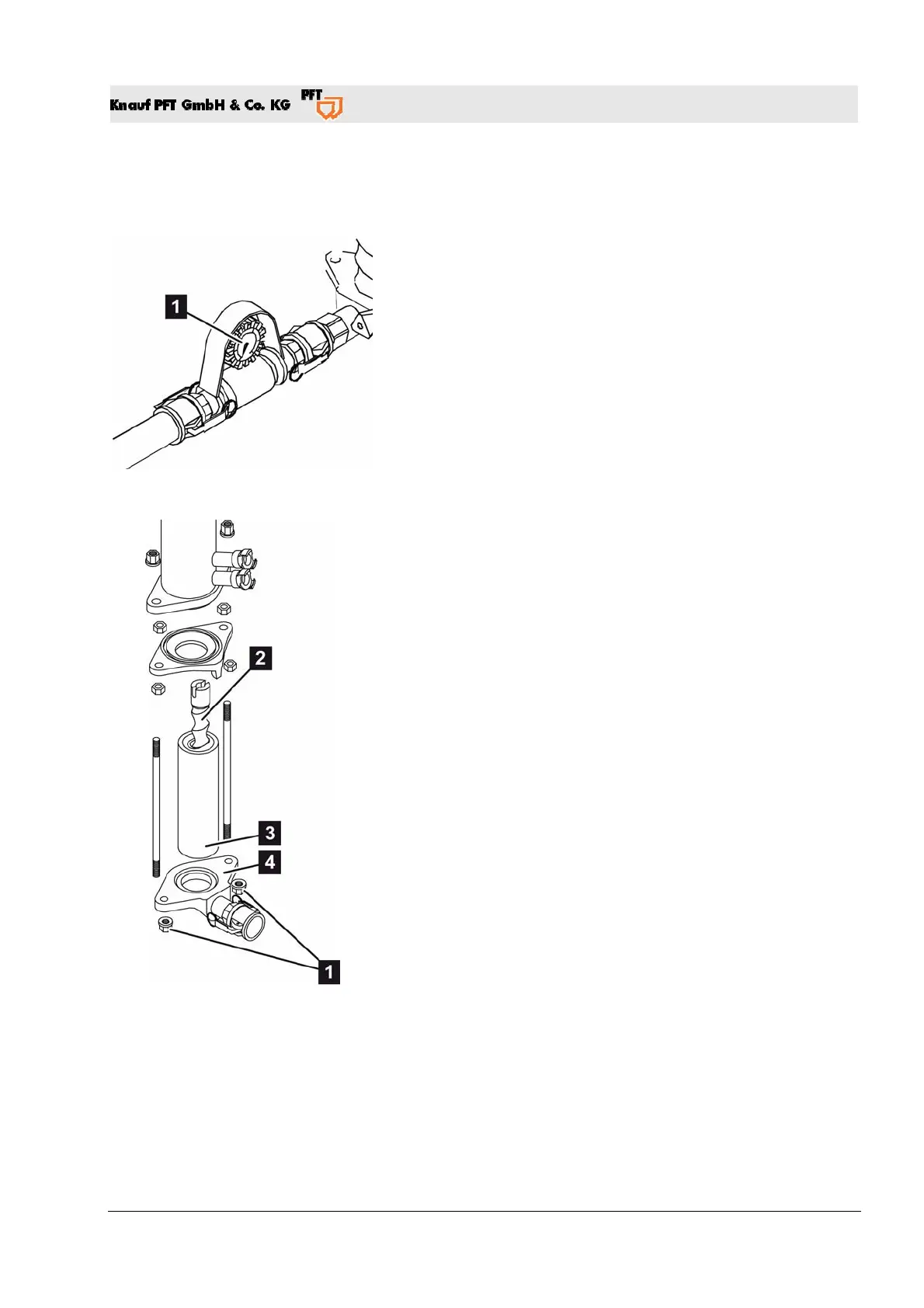

Fig. 61: Check mortar pressure
DANGER! Excess pressure on the machine!
When opening machine components these components can
unexpectedly fly open and seriously injure the operator.
Only open the machine if the pressure has dropped to 0.
1. On the mortar pressure manometer (Fig. 61/1) check whether
mortar pressure has dropped to 0 bar. If necessary, dissipate
mortar pressure by opening all cocks on the sprayer.
2. Clean mortar hoses immediately
(For how to clean the mortar hose, see chapter "Cleaning"
under "Operation" in this Operating Manual).
Fig. 62: Cleaning the pump
3. First lightly loosen the tension rod bolts (Fig. 62/1) then
completely unscrew them from the tension rod.
4. Push the rotor (Fig. 62/2) out of the stator (Fig. 62/3)
and clean it.
5. Clean the pressure flange (Fig. 62/4) or agitator
(ROTOMIX or ROTOQUIRL).
6. Clean the mixing zone and mixing helix with water
and spatula.
7. Completely reassemble the pump.
