Mixing Pump PFT G4
Transport, packing, and storage
34 2007-09-05
Pos: 5.15 /KN2006-SM/ Transport, Verpackun g und Lagerung/006 1.1 Tran sport_Titel @ 9\mod_11 45448098995_293361. doc @ 293660
5.4 Transport
Pos: 5.16 /KN2006-Pr ojekte/Knauf/Transp ort, Verpackung und L agerung/Mischpumpe PF T G4/1.1 Anschlagpunkt e @ 12\mod_1152087688282 _293361.doc @ 298819
Attachment points

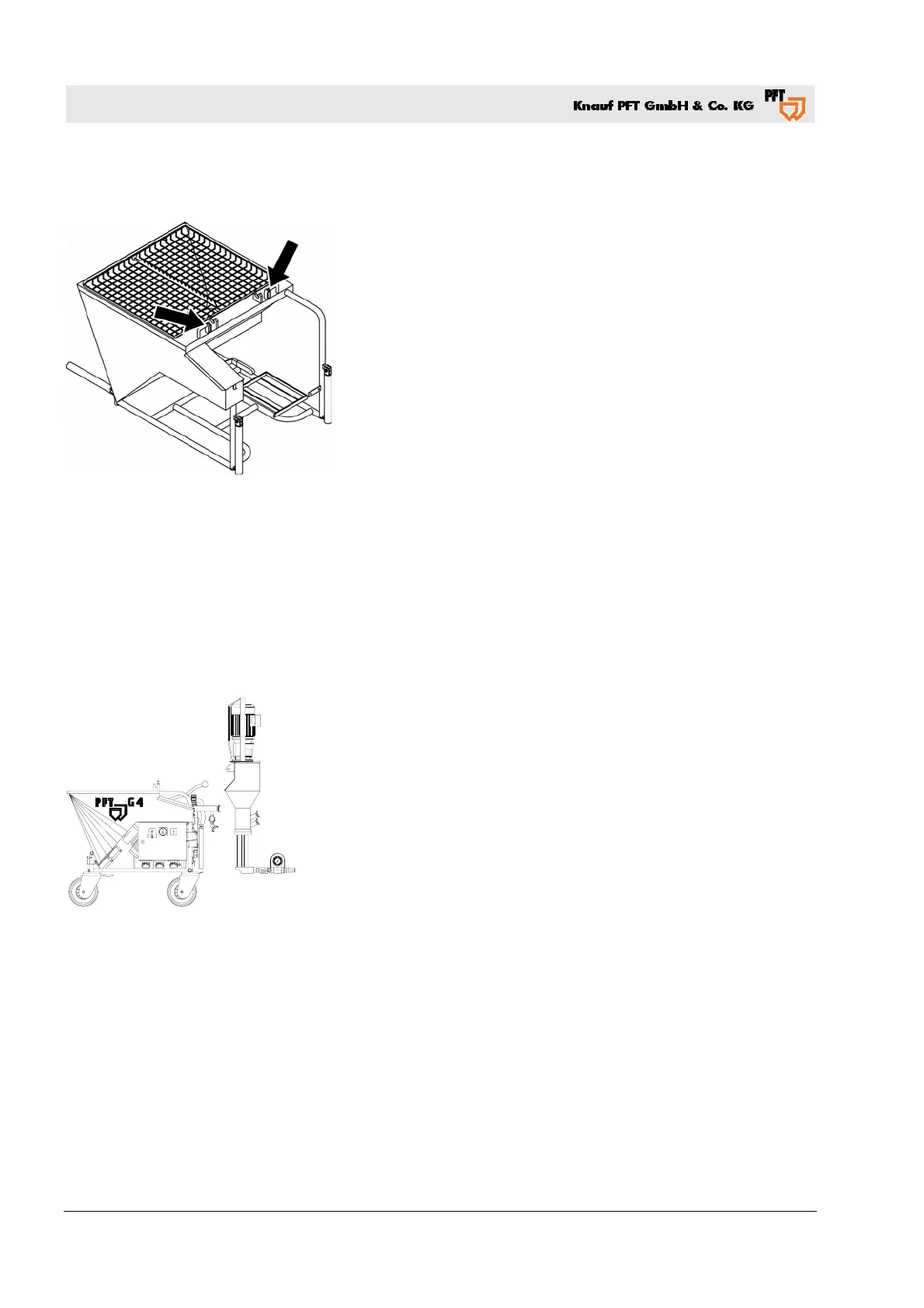

Fig. 15: Attachment points
For crane transport attach the pump on the lifting lugs (Fig.
15/arrows) with a cable.
Comply with the following conditions:
 Crane and lifting equipment must be designed for the weight of
the packed goods.
 The operator must be authorized and trained to operate the
crane.
Attachment:
1. Attach the ropes or straps appropriately using all foreseen
lifting lugs (Fig. 15/arrows).
2. Ensure that the packed goods hang straight; pay attention to
the center of gravity.
3. Start to hoist the machine.
Pos: 5.17 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 293763
Pos: 5.18 /KN2006-Pr ojekte/Knauf/Transp ort, Verpackung und Lager ung/Mischpumpe PF T G4/Transport der berei ts im Betrieb befindlic hen Maschine_ANSI @ 37\ mod_1177403741188_2933 61.doc @ 447056
Transport of a machine that is
already in operation
DANGER! Injury hazard due to ejecting mortar!
Face and eyes can be severely injured. Prior to opening the
couplings ensure that all hoses are depressurized (check the
reading on the mortar pressure indicator).
Fig. 16: Dismantling the mixing pump
Execute the following steps prior to transport:
1. Unplug the mains connection.
2. Disconnect all other cable connections.
3. Remove water feed line.
4. For easier transport, break down the machine into the mixing
pipe and material container subcomponents (see
Fig. 16).
These items can be transported separately.
