8.4 Maintenance tasks
Pos: 8.19 /KN2006-Pr ojekte/Knauf/W artung/Mischpumpe PFT G4/1.1. 1 Messingsieb reini gen @ 36\mod_11773465874 19_293361.doc @ 446033
8.4.1 Clean the brass sieve
 To be performed by the operator.

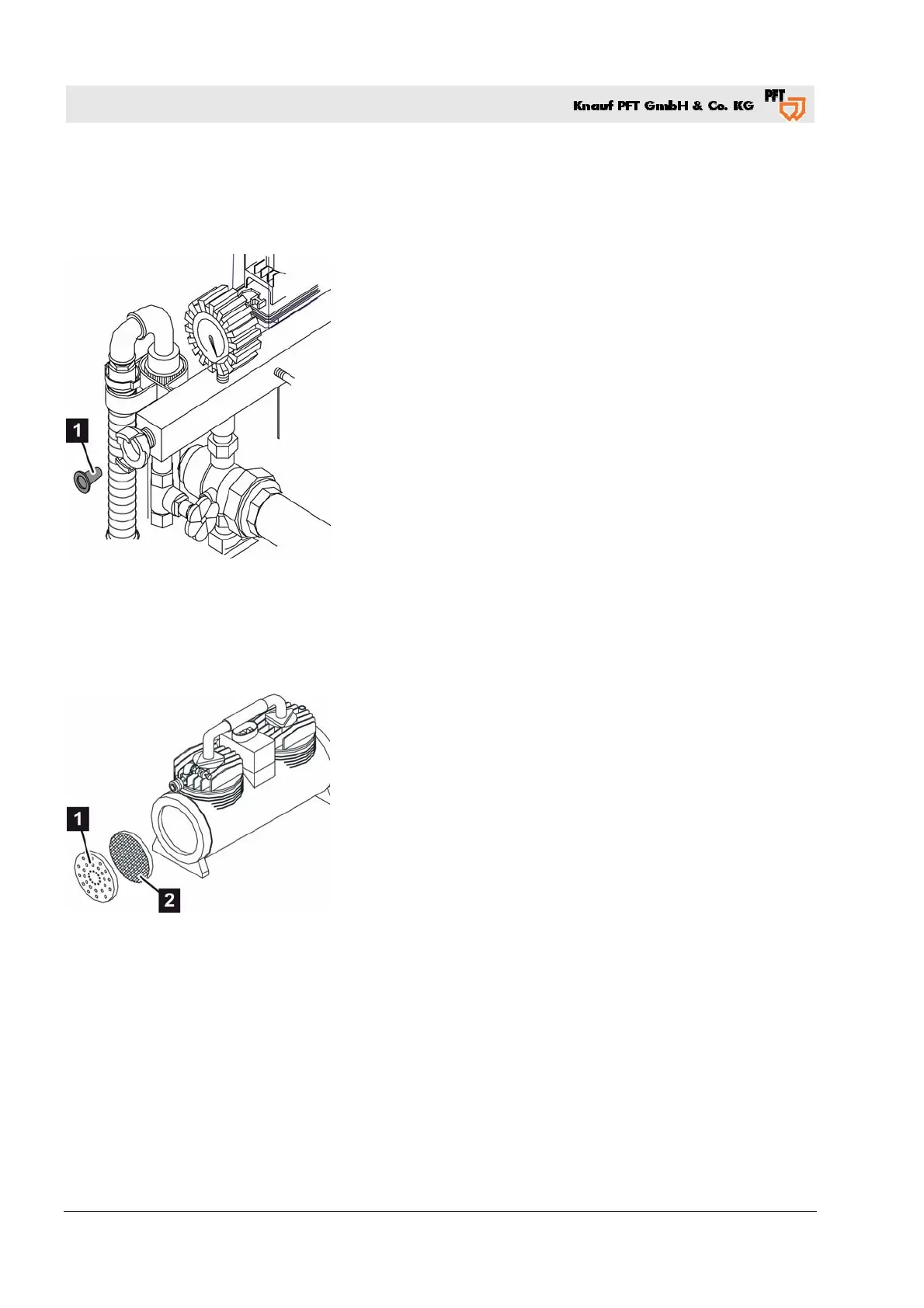

Fig. 63: Brass sieve in the water inlet
1. Take the brass sieve (Fig. 63/1) out of the water inlet.
2. Clean the sieve.
3. Replace sieve if there is heavy fouling.
4. Reinsert the cleaned sieve or insert new sieve.
Pos: 8.20 /KN2006-SM/nL---------- Abschnittsende ---------- @ 8\mod_1141997892953_0.doc @ 293763
Pos: 8.21 /KN2006-Pr ojekte/Knauf/W artung/Mischpumpe PFT G4/1.1. 1 Filter des Kompressor s reinigen @ 36\mod_11773 46697691_293361. doc @ 446046
8.4.2 Clean the compressor filter
 To be performed by the operator.
Fig. 64: Compressor filter
1. Open the filter cover (Fig. 64/1).
2. Remove and knock off the filter (Fig. 64/2).
3. Replace filter if there is heavy fouling.
4. Insert filter with the rough filter side facing inside.
5. Close the filter cover.
