Mixing Pump PFT G4
Structure and function
2007-09-05 29
Pos: 4.12 /KN2006-SM/Auf bau und Funktion/005 1. 1 Anschlüsse_Tite l @ 9\mod_1144394868217_ 293361.doc @ 293623
4.4 Connections
Pos: 4.13 /KN2006-Pr ojekte/Knauf/Aufbau un d Funktion/Mischpu mpe PFT G4/Anschlüsse @ 12\m od_1152025303460_29 3361.doc @ 298804
1 Main circuit connection
2 Water connection
3 Mortar hose connection

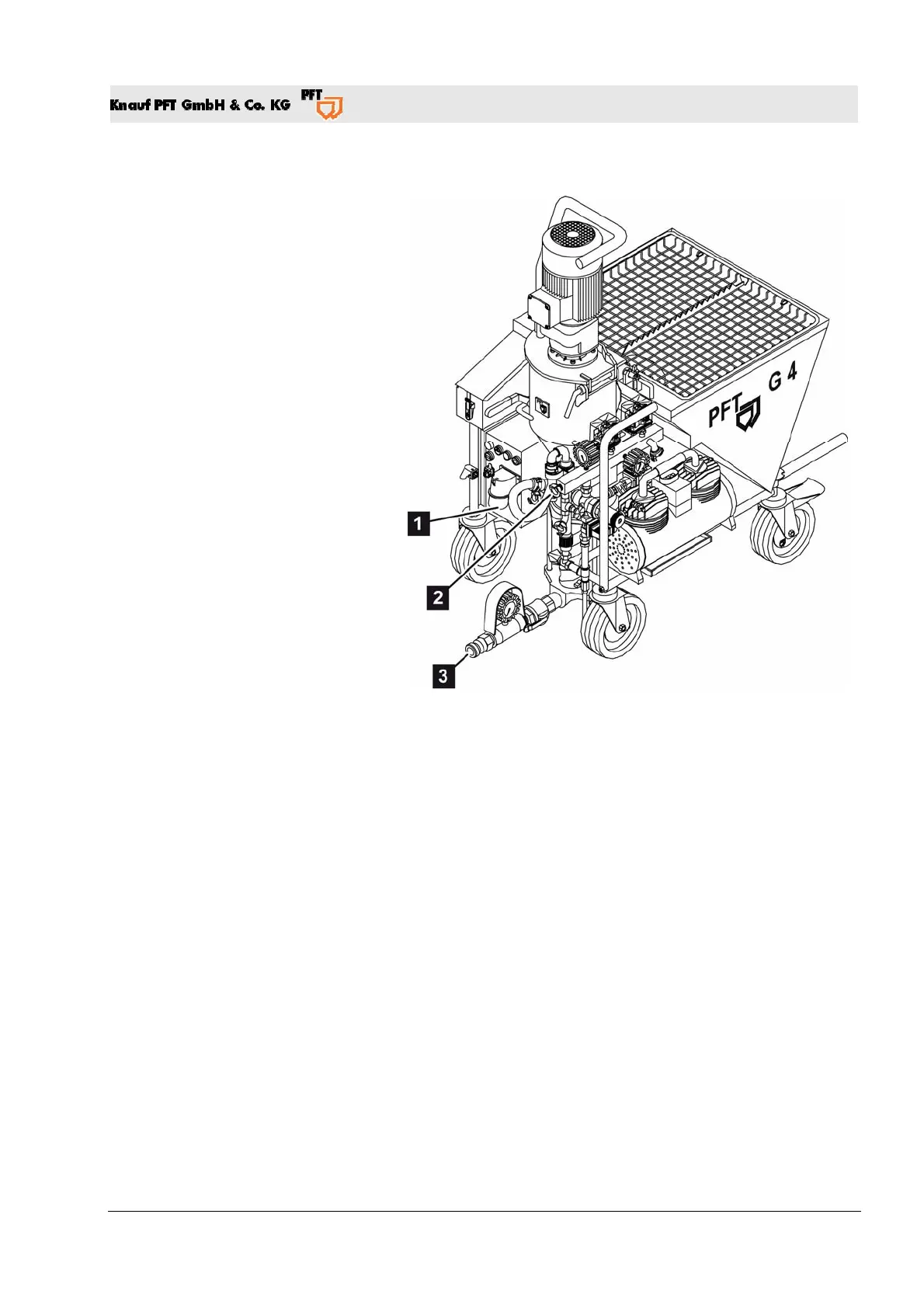

Fig. 12: Connections
