Mixing Pump PFT G4

Operation

2007-09-05 39

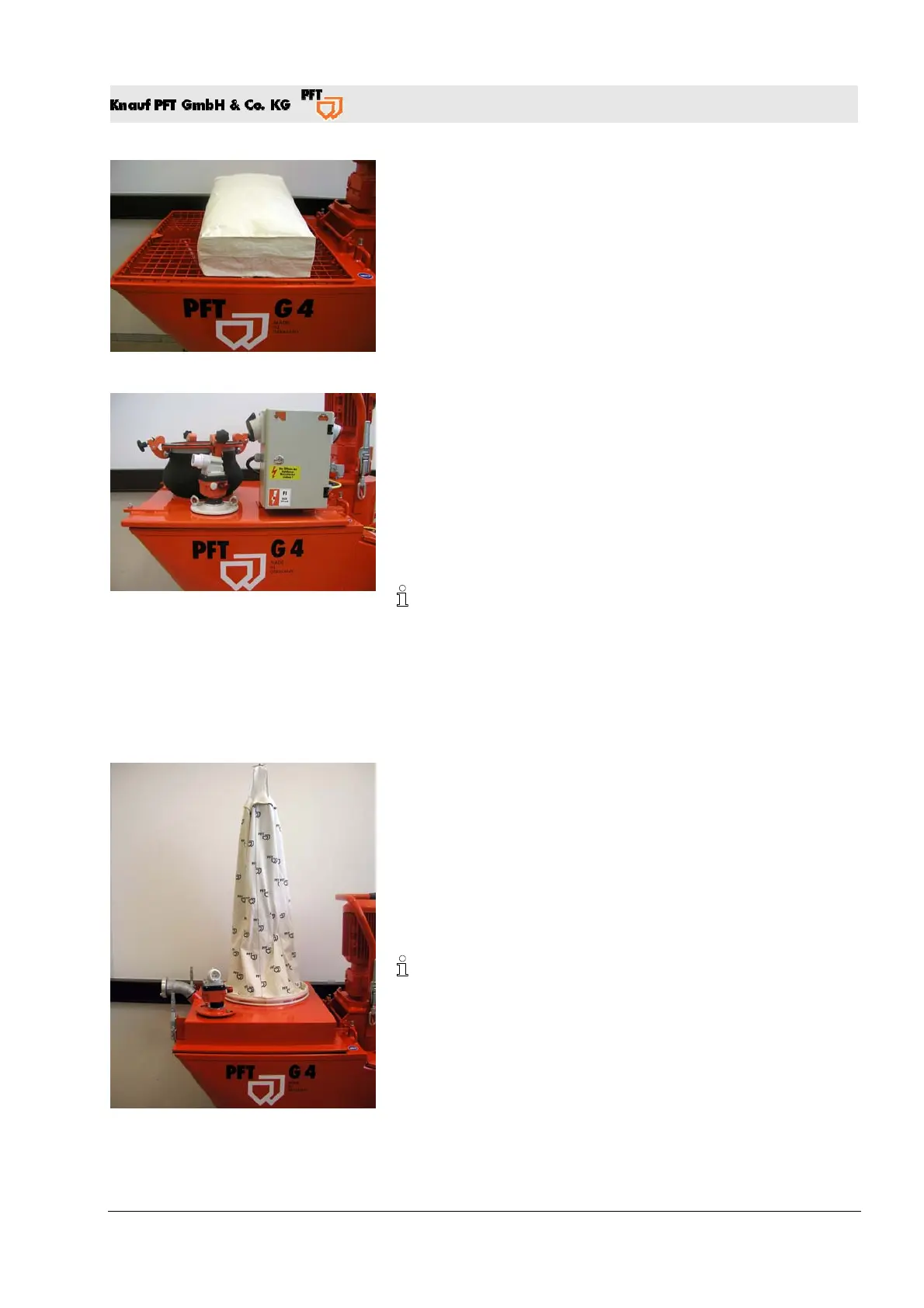

Fig. 25: Goods shipped in sacks

11. Charge the machine with factory pre-mixed dry mortar.

Charging can be executed with goods shipped in bags, with the

transfer hood, or the injection hood, depending on the

equipment.

 If charging with dry motar shipped in bags:

WARNING! Sharp edges on the bag opener pose an injury

hazard! Act carefully and wear safety gloves.

Fig. 26: Transfer hood

 If charging with transfer hood

(optional accessory - item number 20 60 05 00):

DANGER! Danger of serious injury on the cellular wheel!

Do not open the transfer hood during machine operation.

Prior to opening, always switch off the main helix switch

and the power supply.

1. Place the transfer hood onto the machine instead of the grille

cover.

If the fill level indicator in the injection hood shows "empty",

then after a set time has elapsed the machine will come to a

standstill. Charge the G 4 Mixing Pump with material first.

To accomplish this, pull out the dummy plug or switch off the

machine via the air pressure controller. Only start work when

the fill level indicator shows "full".

Fig. 27: Injection hood

 If charging with the injection hood

(optional accessory - item number 20 60 02 13):
