Mixing Pump PFT G4
Operation
2007-09-05 51

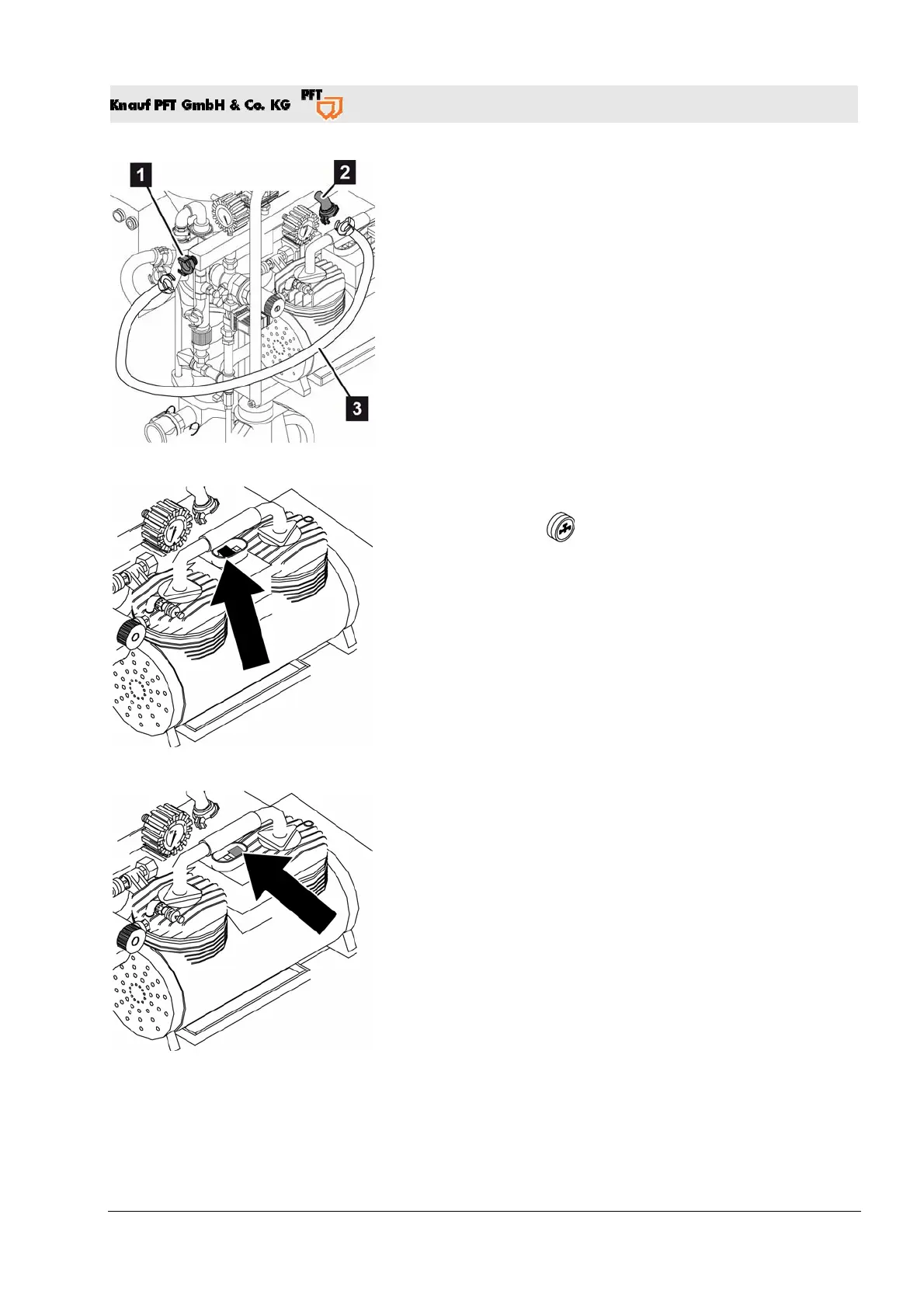

Fig. 54: Air hose
8. Remove air hose (Fig. 54/3) on the sprayer.
9. Fasten the hose on the water inlet (Fig. 54/1) and on the
outlet of the air fitting (Fig. 54/2).
10. Close all water valves.
11. Switch on the machine (main switch on position "I").
Fig. 55: Switching the compressor on
12. Switch on the compressor via the black button (Fig. 55/arrow).
13. Press the button
("Water flow on").
The water will now blow out of the fitting with compressed air.
(For approximately 1 minute at 1.5 bar [21.8 psi])
14. Open all water valves and again blow out with compressed
air.
Fig. 56: Switching the compressor off
15. Switch off the compressor via the red button (Fig. 56/arrow).
16. Switch off the machine. Main switch in position "O".
