1. Technical Specifications, Connections and Chassis Overview
Index:
1. Technical Specifications.
2. Connections.
3. Chassis Overview.
Note:
• Described specifications are valid for the whole product
range (see Product Survey for specific models).
• Figures can deviate slightly from the actual situation, due
to different set executions.
1.1 Technical Specifications
1.1.1 Reception
Tuning system : PLL
Colour systems : NTSC 3.58, 4.43
: PAL B/G, B/H, D/K,
I
: SECAM B/G, D/K,
K1
Sound systems : FM-stereo
: 2CS (B/G, China,
Korea)
:BTSC DBX
: NICAM B/G, D, D/K,
I
: BI-NICAM B/G, D,
D/K, I
A/V connections : NTSC 3.58, 4.43
:PAL 60
Channel selections : 100 or 125
channels
: UVSH or full cable
Aerial input : 75 9, IEC- or F-type
1.1.2 Miscellaneous
Audio output : 2 x 5 W (with SAP)
: 2 x 5 W + 10 W
(subwoofer)
: 2 x 5 W + 10 W + 2
x 3 W
Mains voltage : 90 - 276 V or 150 -
276 V
Mains frequency : 50 or 60 Hz
Ambient temperature : + 5 to + 45 deg. C
Maximum humidity : 90 %
Standby Power consumption : < 3 W
1.2 Connections
1.2.1 Front (or Side) Connections and Front (or Top) Control

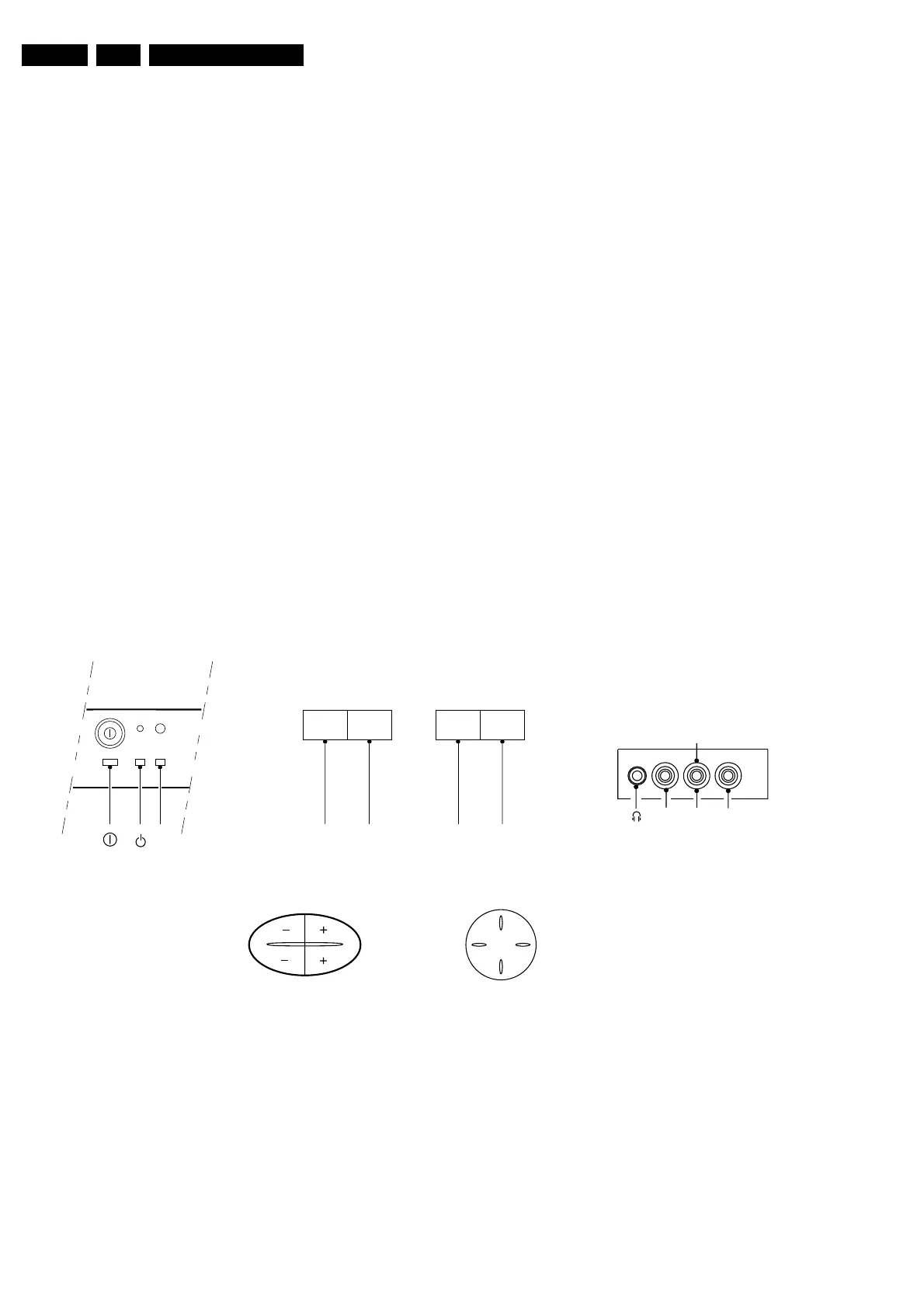

Figure 1-1
IR
RED
- VOLUME +
- PROGRAM +
V+V-
P-
P+
L
Audio
R
Video
Mono
V- C+C-V+
CL 16532016_020.eps
220501
C+C-V+V-
