Philips L01.1A - Rear Connections; Chassis Overview

Technical Specifications, Connections and Chassis Overview
GB 3L01.1A 1.
Audio / Video In
1 - Video CVBS (1 Vpp / 75 9)

2 - Audio L (0.2 Vrms / 10 k9) 
3 - Audio R (0.2 Vrms / 10 k9) 
4 - Headphone
(3.5 mm) 8 - 600 9 / 4 mW

1.2.2 Rear Connections
Figure 1-2 .eps
Monitor Out
1 - Video CVBS (1 Vpp / 75 9)

2 - Audio L (0.5 Vrms / 1 k9) 
3 - Audio R (0.5 Vrms / 1 k9) 
YUV In (if present)
1 - Y 0.7 Vpp / 75 9

2 - U 0.7 Vpp / 75 9 
3 - V 0.7 Vpp / 75 9 
AV1 In
4 - Video CVBS (1 Vpp / 75 9)

5 - Audio L (0.5 Vrms / 10 k9) 
6 - Audio R (0.5 Vrms / 10 k9) 
AV2 In
1 - Video CVBS (1 Vpp / 75 9)

2 - Audio L (0.5 Vrms / 10 k9) 
3 - Audio R (0.5 Vrms / 10 k9) 
AV2 In (SVHS)
1 - gnd

2 - gnd 
3 - Y 1 Vpp / 75 9 
4 - C 0.3 Vpp / 75 9 

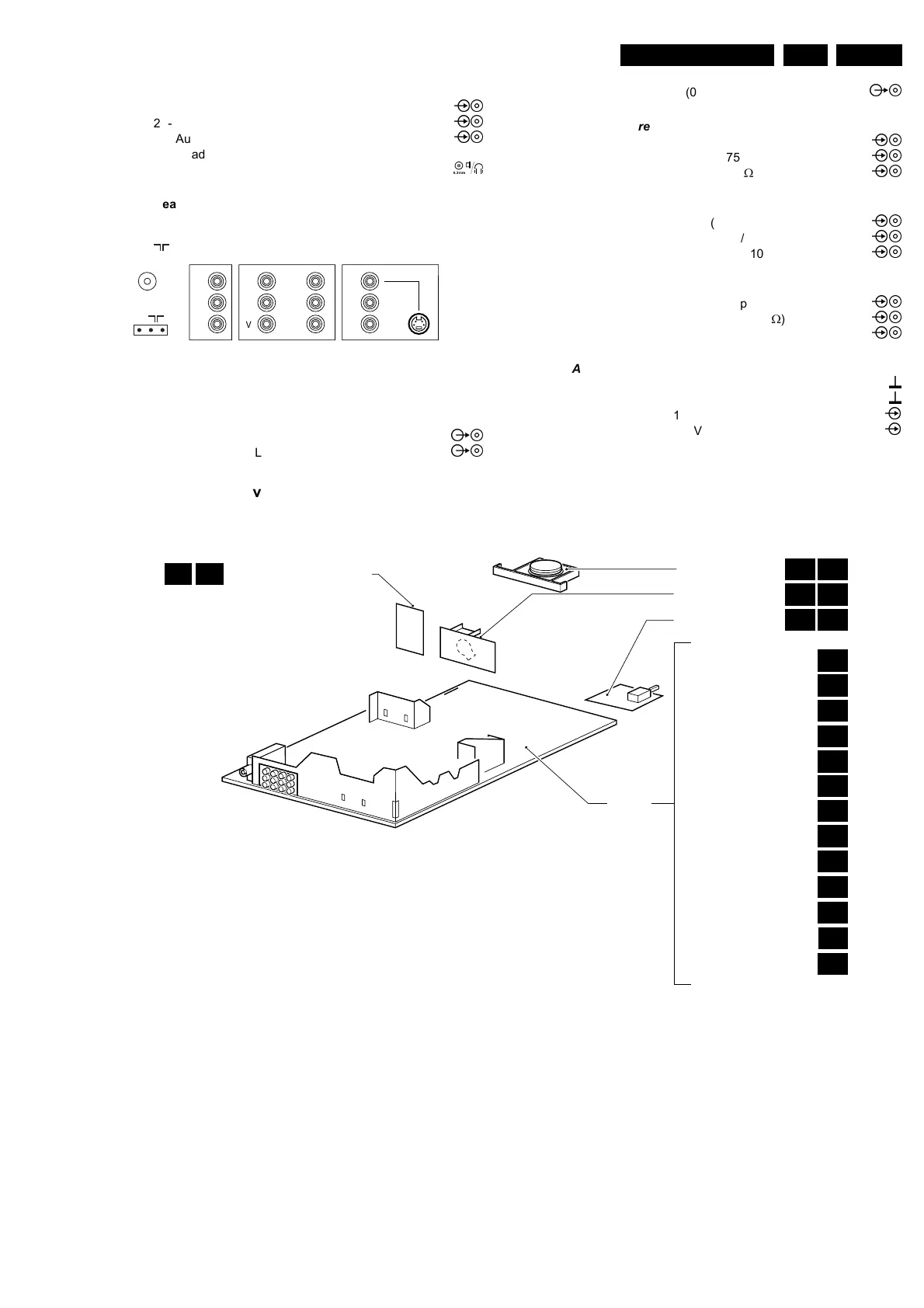

1.3 Chassis Overview
Figure 1-3
V
L
R
Y
U
V
V
L
R
V
L
R SVHS
MONITOR
OUT
75 Ohm
FM
AV1
IN
AV2
IN
CL 16532008_005.eps
120601
CRT PANEL
SIDE AV PANEL + HEADPHONE
E1E
MAIN
CHASSIS
PANEL
A1
B2B1
T1T
A2
A3
A4
A5
A12
A9
A10
A8
A13
POWER SUPPLY
Q1Q
FRONT INTERFACE
LINE DEFLECTION
FRAME DEFLECTION
A6
SYNCHRONISATION
TUNER IF
VIDEO + SOUND IF
FRONT I/O + CONTROL +
HEADPHONE
A7
CONTROL (µP)
NICAM + 2CS +
BTSC DECODER
A/V SWITCHING
AUDIO AMPLIFIER
REAR I/O CINCH
CL 16532008_065.eps
150601
A15
TILT & ROTATION
TOP CONTROL PANEL
