5.2.2 Connecting the power supply
The power supply is connected to the CAPAROC system via connections IN+ 1.1 and IN-
2.1 of the power module.
The other modules are also automatically supplied with power via the rear current rail.
Figure 5-1 Connecting the CAPAROC power supply
5.3 Removing cables

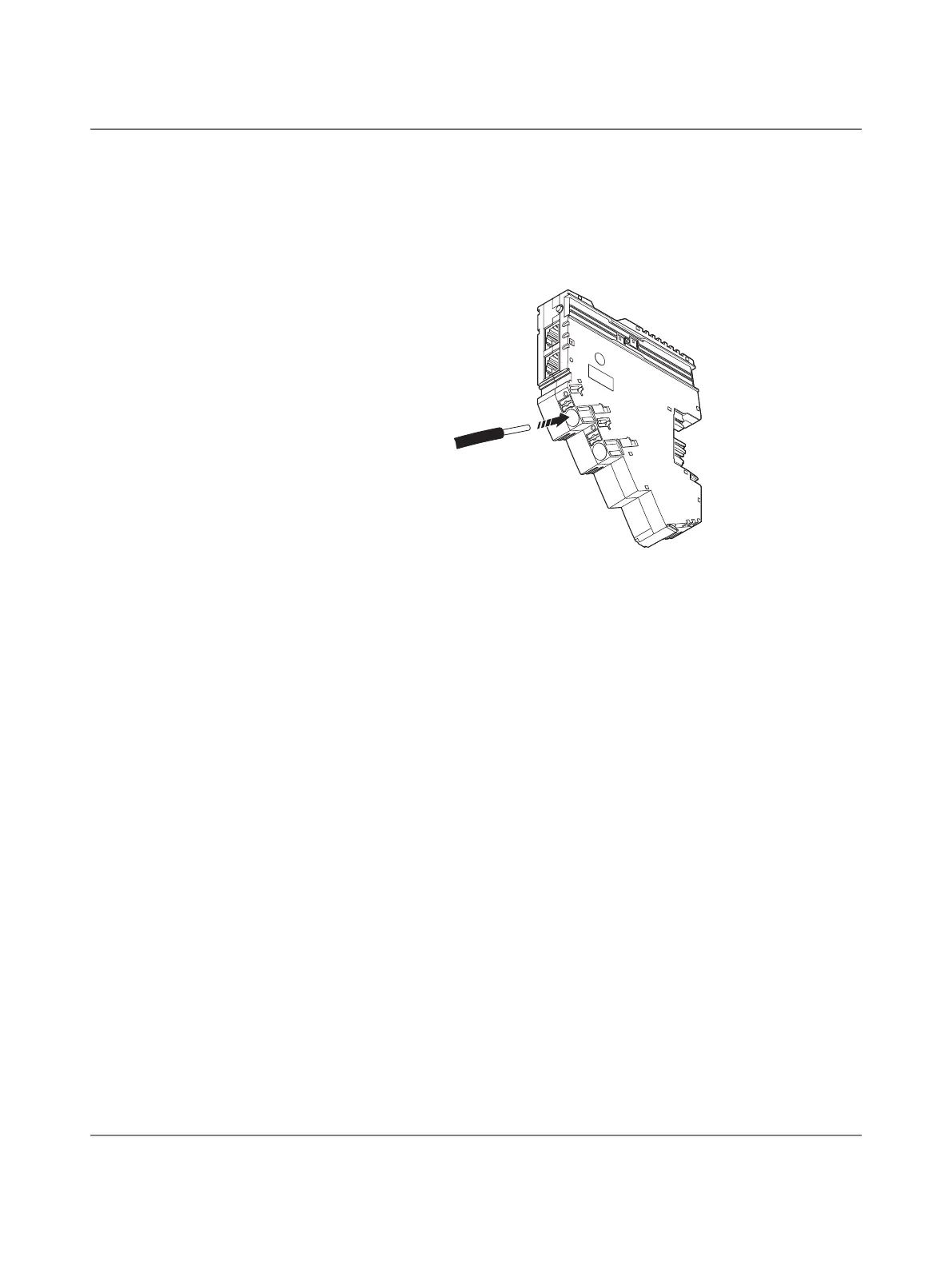

• To remove a cable from the terminal point, press on the spring lever using a suitable
tool (e.g., bladed screwdriver with a blade width of 2.5 mm). This opens the leg-spring
connection of the relevant terminal point.
• Remove the conductor.
