2.4 Overview of the CAPAROC modules
2.4.1 CAPAROC power modules

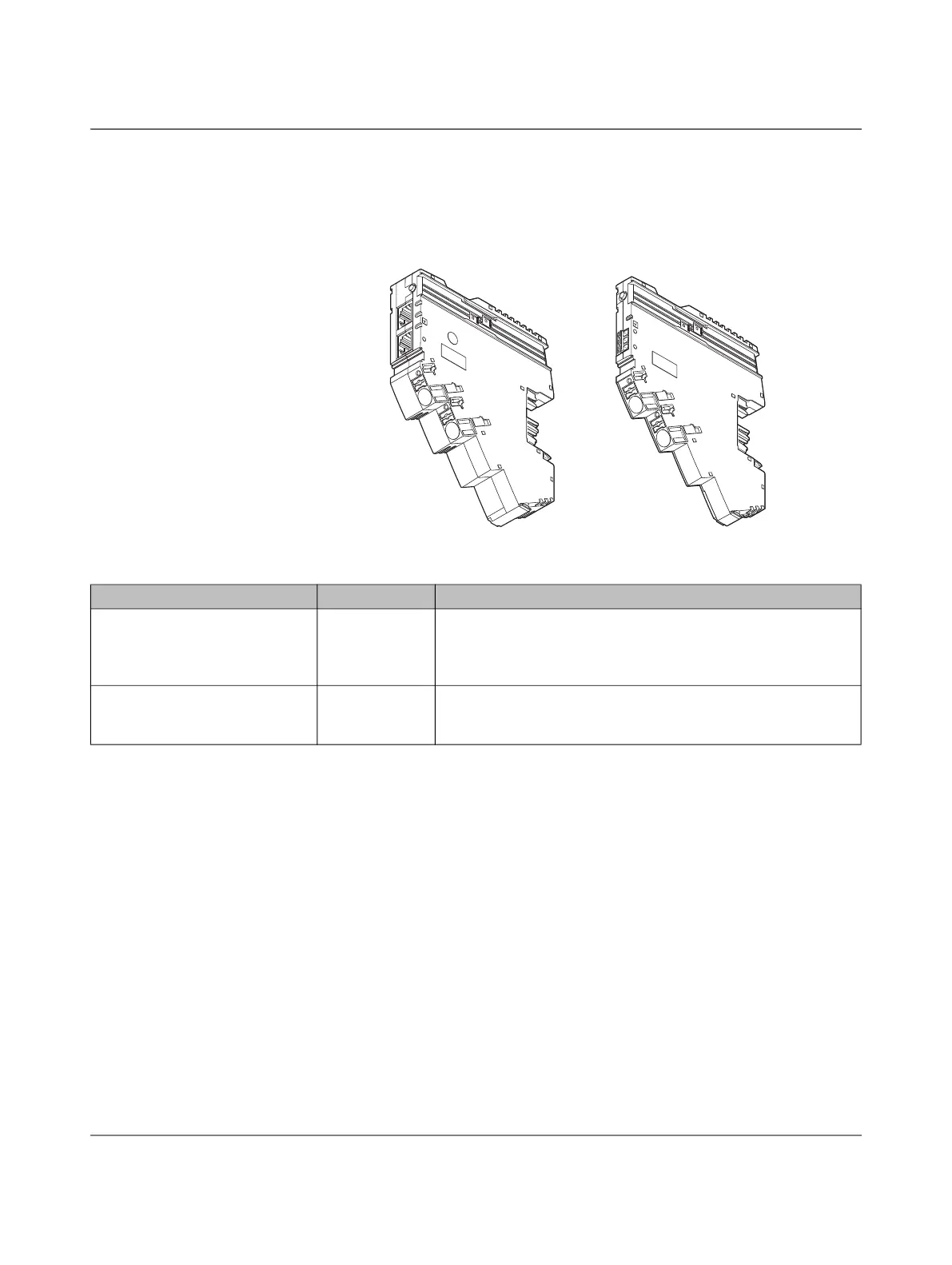

Figure 2-2 PM PN and PM S-R power modules
Table 2-1 Overview of power modules
Designation Item number Description
CAPAROC PM S-R 1115661 power module status-reset for supplying the system with the re-
quired voltage. Query system messages via a group message from
the module. A reset input and an I>80% signal output provide ad-
ditional diagnostics and reset options.
CAPAROC PM PN 1110986 power module for supplying the system with the required voltage
and PROFINET interface. The system provides extended diagnos-
tics and control options via the integrated interface.
