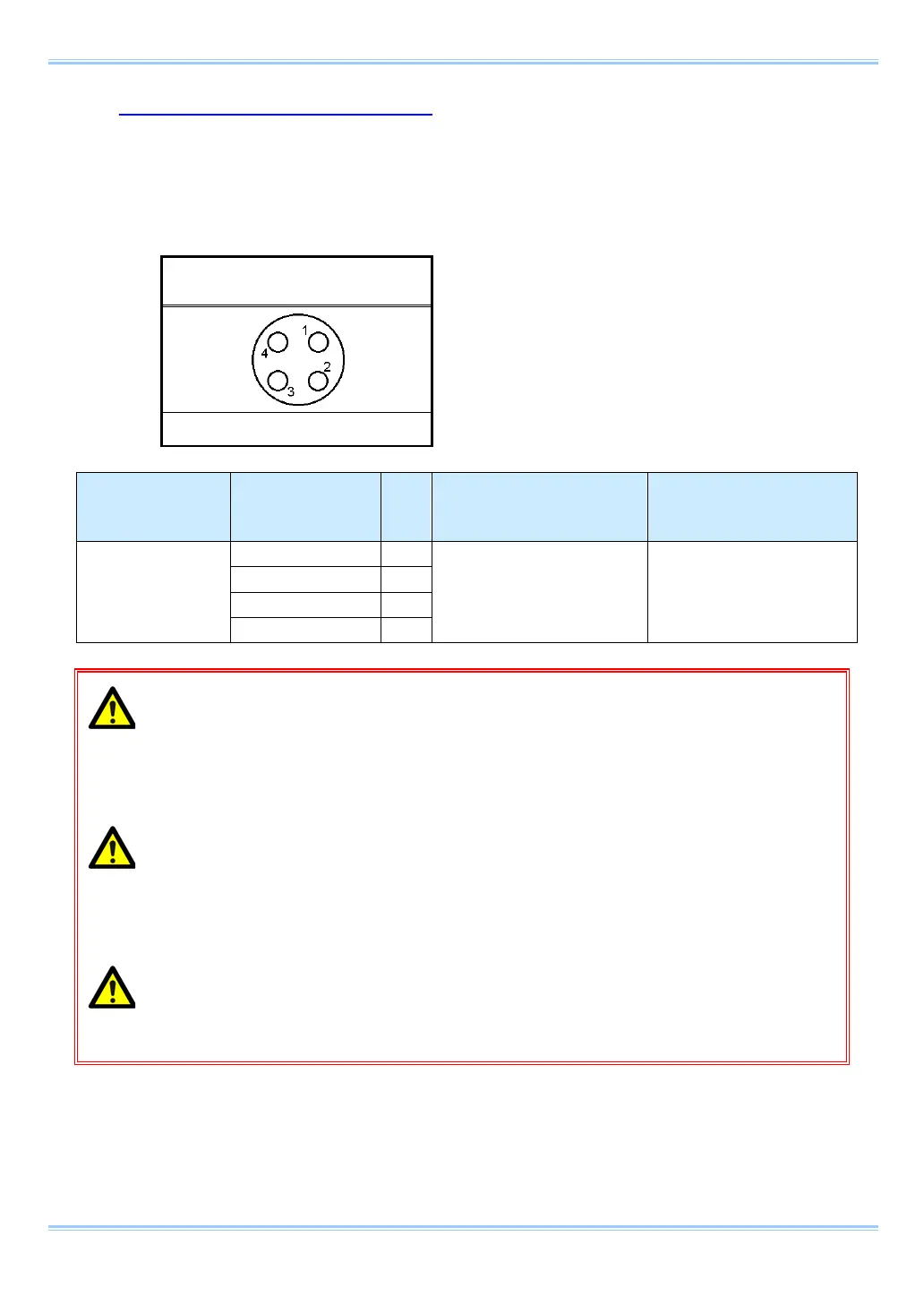

2.2.8. Power Supply Connector
The DC power supply input connector. Connect to the supplied AC adapter or the optional High-G
Battery.
The cable connector is optionally available. When using other power supplies, construct a cable
using the pin diagram below as a reference.
DC 20-36V 230VA Pin Diagram
EEJ.3B.304.CYC
Connector Name Signal Name
Pin
No.
Camera Body Connector
Model Name
(Manufacturer)
Cable Connector
Model Name
(Manufacturer)
DC20-36V 230VA
+20V - +36V IN
1
EEJ.3B.304.CYC
(LEMO)
FGJ.3B.304.CYMD10Z
(LEMO)
GND
2
GND
3
+20V - +36V IN
4
When using the connector pins directly, refer to the chart above and ensure the wiring
is correct.
If the wiring is incorrect, not only is there the danger of the system malfunctioning, but
also of fire and electric shock.
Do not use a power supply which does not meet the system's specifications, or a
power supply you cannot guarantee the safety of.
By using a power supply outside of the system specifications, not only is there the
danger of the system malfunctioning, but also of fire and electric shock.
Please use a external power supply with the suitable rating which was estimated by
IEC/EN 61010-1 3
rd
Edition (compiled with CI. 6.3 and CI. 2.5), and separated from the
main circuit by double insulation or reinforced insulation
Warning
Warning
Warning
17 FASTCAM SA-Z Hardware Manual
