Chapter. 2 Setup

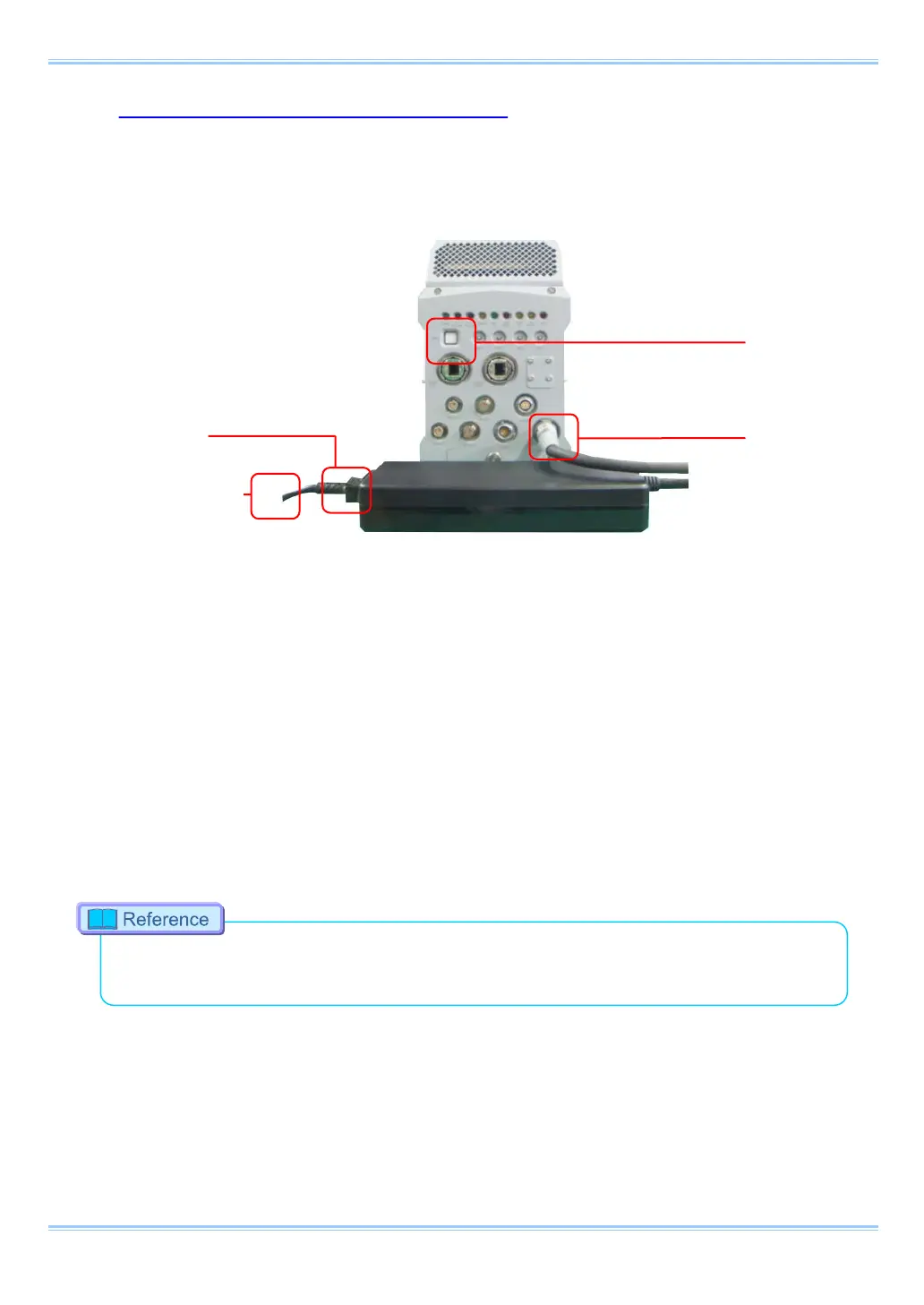

2.3.2. Connecting the AC Power Supply
Connect the supplied AC power supply unit to the power supply.
1. Confirm the Power SW is turned off.
2. Connect the AC power supply unit to the “DC20-36V 230VA” connector on the back of the
camera body.
3. Connect the AC cable to the AC power supply unit.
4. Connect the AC cable to the power outlet.
5. Turn on the Power SW one the system.
•
For the specification of the power supply which can be used, refer to “5.1.2. General Specifications”,
page 81.
