Photron FASTCAM Mini GigabitEthernet Interface User Manual

Chapter. 2 Setup

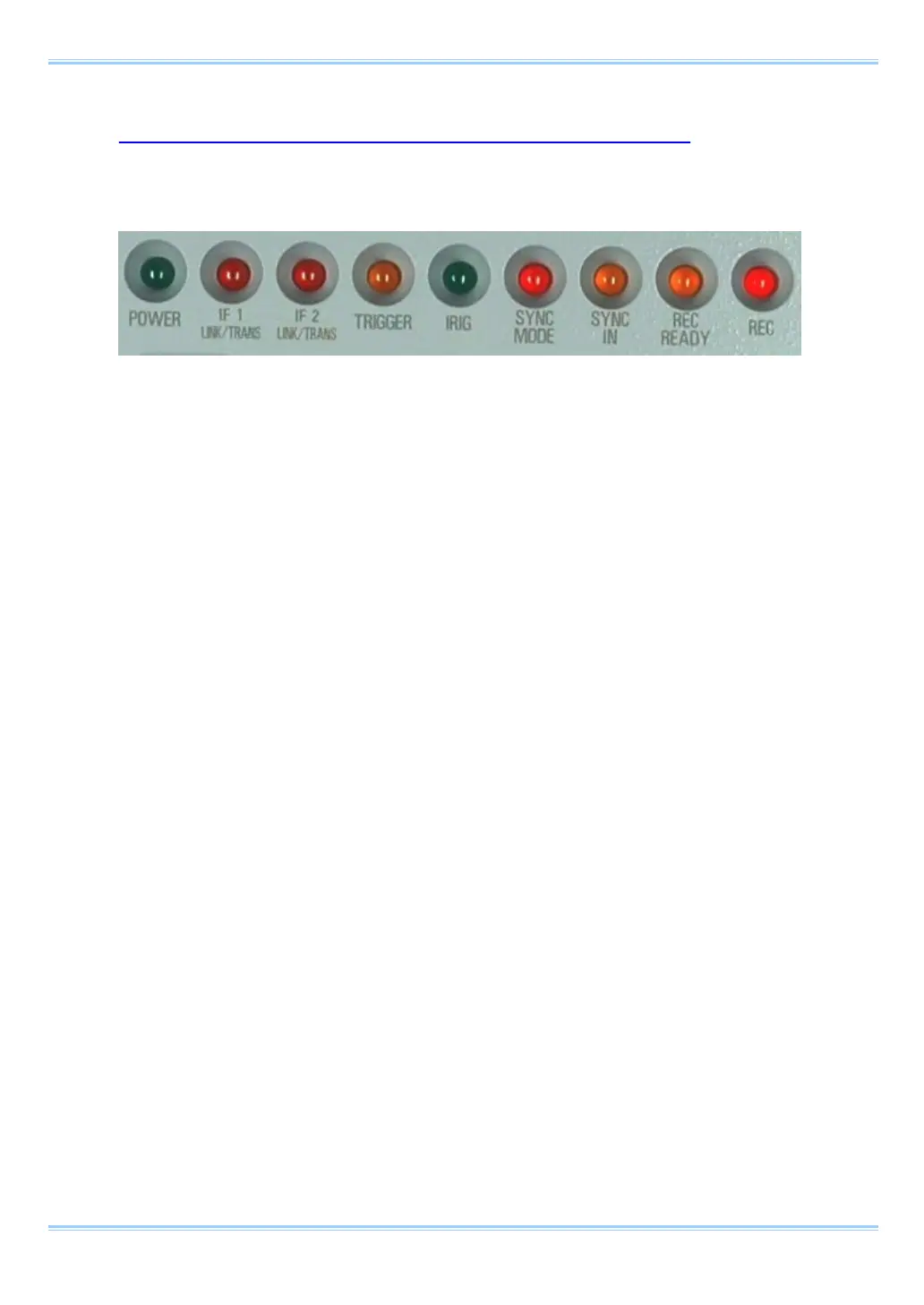

2.2.3. Status Display LEDs on the Rear of the Camera Body
There are a number of LEDs on the rear of the system's camera body. These LEDs indicate the
status of the system. The function of each LED is explained here.
 POWER (Green)
LED ON: Power On
LED OFF: Power Off
 IF LINK/TRANS (Red)
LED ON: The Gigabit Ethernet interface is connected
LED FLASHING: Data is transferring
LED OFF: The Gigabit Ethernet interface is not connected
 TRIGGER (Yellow)
LED ON: A trigger signal is present (being input) (The LED will illuminate for 0.1 second when the
trigger signal is input.)
LED OFF: The trigger signal is not present
 IRIG (Green)
LED ON: The IRIG/GPS signal is present (being input)
LED OFF: The IRIG/GPS signal is not present
 SYNC MODE (Red)
LED ON: In external synchronization mode (synchronized to an external signal)
LED OFF: In internal synchronization mode (synchronized to the internal signal)
 SYNC IN (Yellow)
LED ON: A synchronization signal is present (being input)
LED OFF: A synchronization signal is not present
 REC READY (Yellow)
LED ON: Ready to record
LED FLASHING: ENDLESS recording (The REC (Red) LED is also flashing)
LED OFF: Not ready to record
 REC (Red)
LED ON: Ready to record (The case of “ENDLESS” recording mode)
LED FLASHING: Recording
LED OFF: Not recording
10
