Chapter 2 Controls and Indicators
The design of IONOSON-Basic allows for easy operation, in combination with a variety of functions. Be-
cause of its small size, the instrument is very easy to transport. It has been designed for operation both in-
side and outside of therapy rooms, and is fed by rechargeable batteries for that reason (only battery oper-
ated model, refer to Mains and Battery Operation on page 38).
All controls and indicators are integrated into the housing, thus allowing for easy cleaning of the instru-
ment's surface and protecting it from dust.
The instrument's microprocessor monitors the safety-related components, prevents from erroneous opera-
tion and checks the instrument after switching it on.

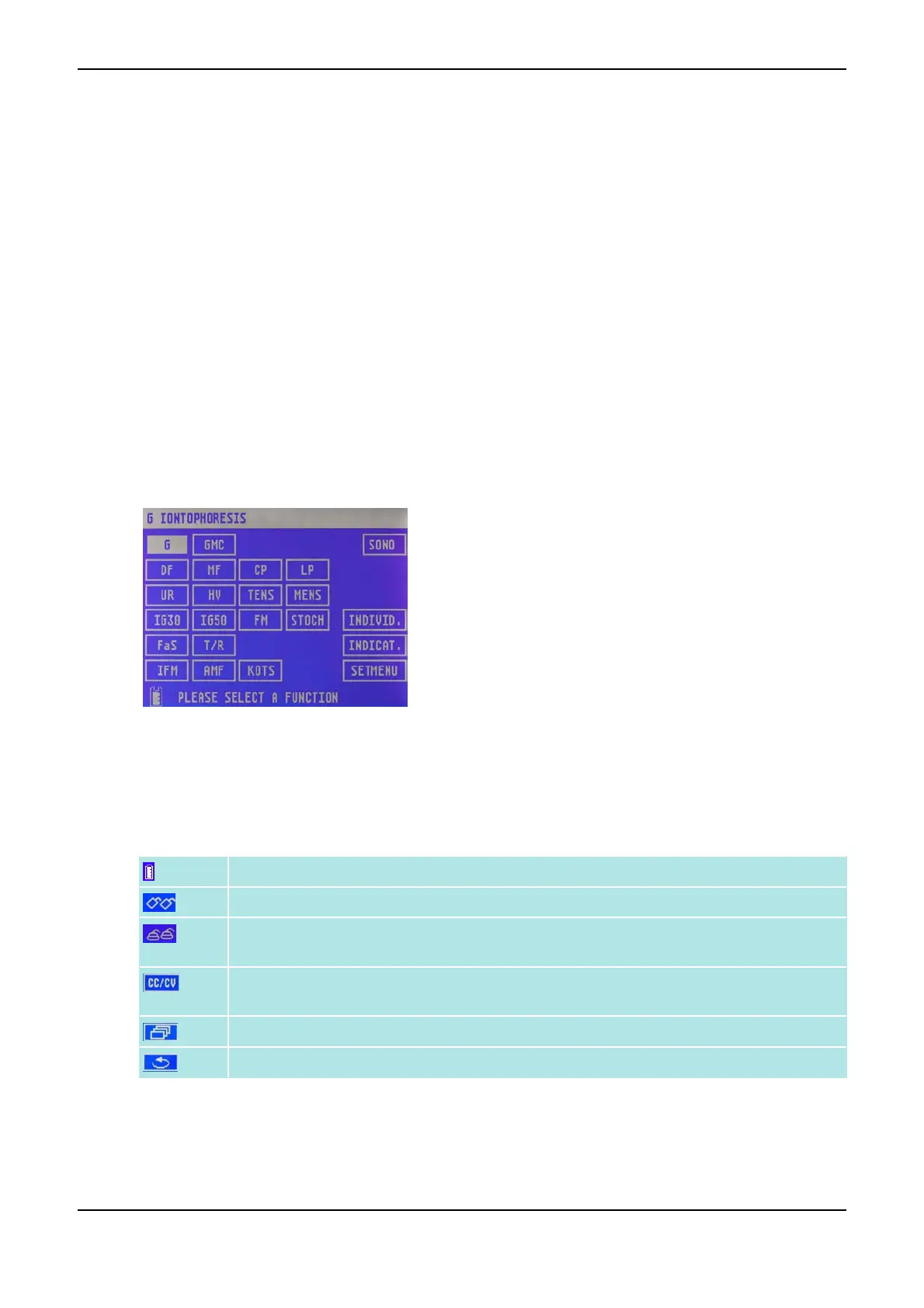

2.1 Display <1>
In the Display <1>, all menu items including the therapy para-
meters of the instrument can be selected in different areas.
You can select the parameters using the Data Selector <2>.
2.1.1 Symbols in the Display <1>
In the Display <1> you find the following symbols:
Symbols in the Lower Status Bar
State of charge of the battery (refer to Mains and Battery Operation on page 38)
Emission of current via the Patient Lead Connector <9>
Emission of current via a connected vacuum application instrument (refer to Vacuum Applic-
ation Unit on page 65)
Commutation between CC mode and CV mode (refer to Constant Current Operation on
page 40)
Individual programs (refer to Individual Programs on page 61)
Quit menu and return to start screen
