DT2030814-00
English
42

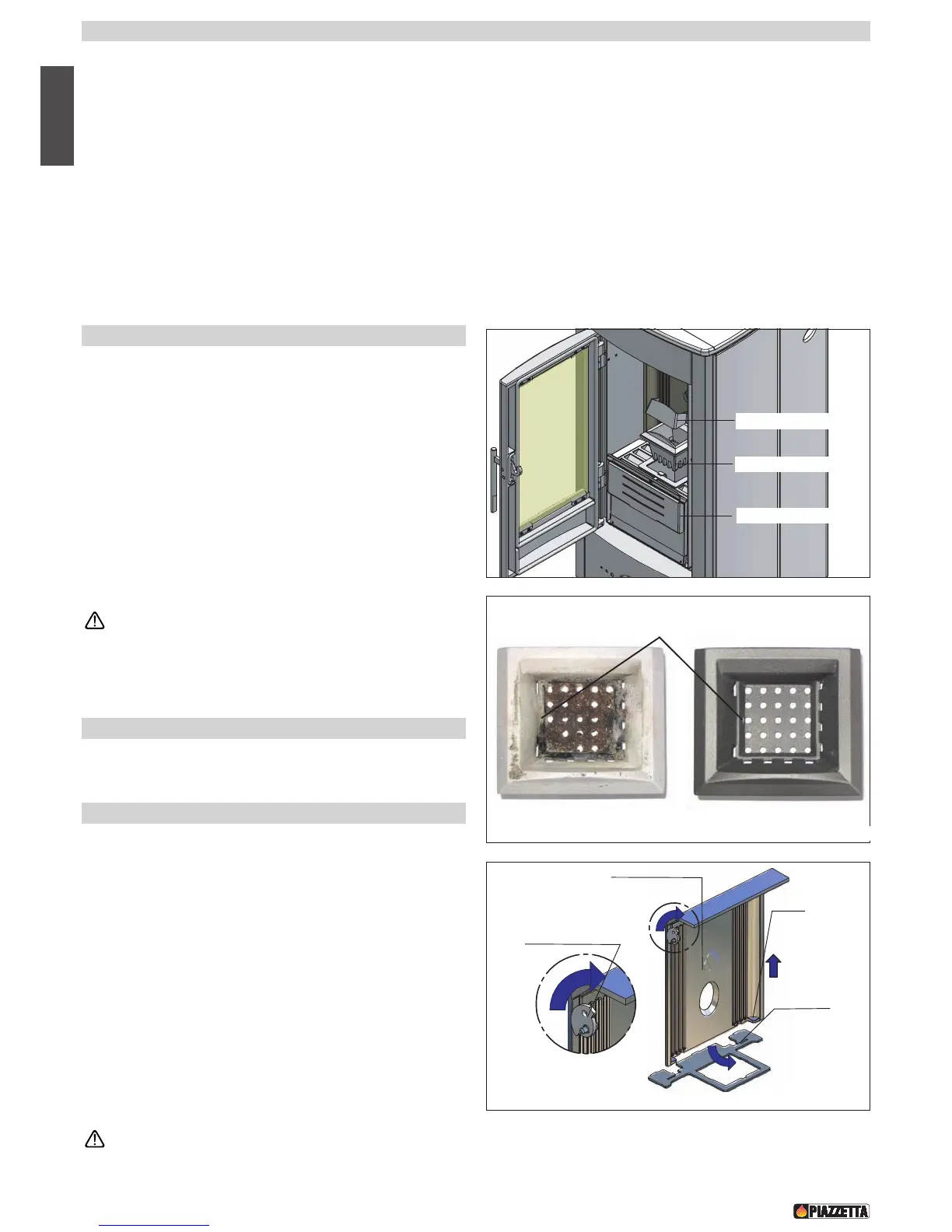

7.0 MAINTENANCE
DT2010249-00
7.1 Cleaning the grate and the grate support - Fig. 64
Clean the grate area periodically (approx. once every two days) and
whenever the stove is to be lit:
• Remove the grate baffle plate and lift out the grate.
• Remove any ash or other material that may have built up, taking
particular care to free any clogged holes using a sharp pointed
tool.
• Make sure the “ignition hole”, located on the left side of the grate,
is kept clean.
• Check the grate support and remove any ash.
The frequency of cleaning depends on how much the stove is used
and the quality of the fuel
Before lighting the stove, check that the grate is correctly
inserted and pushed towards the left. Refit the grate baffle
plate.
7.2 Cleaning the ash tray
Every two days, check the ash tray to see if it needs emptying. For the
disposal of ashes see section 6.16.
7.3 Cleaning the firebox - Fig. 64 / 66
Once a week clean the firebox as follows:
• Remove the grate and the ash pan (fig. 64).
• Turn the eccentric clamps clockwise to free the internal baffle.
• Lift the baffle slightly, gripping it by the two outer tabs to free it at
the bottom and then turn it, bringing the bottom outwards, and
remove.
• Using a vacuum cleaner remove the ash from the firebox.
• After having thoroughly cleaned the firebox, remount the internal
baffle proceeding in the reverse order to above.
• Ensure that the tabs are properly inserted into the relative notches
in the sides of the firebox and secure the baffle by turning the two
eccentric clamps counter-clockwise.
• Replace the grate, pushing it to the left.
This type of cleaning requires a vacuum cleaner suitable for
holding ash.
DT2010057-01
F
ig. 64
Fig. 66
P
ursuant to current regulations on the safety of electrical equipment, you must contact a Piazzetta After-Sales Service Centre or a qualified
electrician for all and any work connected with installation, maintenance or servicing that involves access to electrical parts.
Maintenance is to be considered compulsory for correct and efficient stove operation. If maintenance is not carried out with the recommended
frequency, stove performance could suffer. The manufacturer will not be responsible for stove deterioration or malfunction if due to poor
maintenance.
All maintenance work (cleaning, any replacements, etc.) must be carried out when the stove is shutdown and cold.
Do not use materials that could scratch or damage the glass, since scratches could become cracks. Under no circumstances use abrasive
substances.
BOTTOM RESTRAINT
Grate baffle plate
Grate
Ash pan
DT2030894-00
IGNITION HOLE
Fig. 65
