Piazzetta P950 - Replacing Fuses; Electronic board fuse; Fuse on the IEC power socket

English
8
.1 Replacing the fuses
Electronic board fuse.
Unscrew the cartridge fuse or safety plug from the electronic board and
replace with a similar one.
Motherboard fuse type: F4AL250V
Fan card fuse type: F500MAL250V
Fuse on the IEC power socket.
Draw out the fuse carrier and replace the fuse with the spare to be
found inside the small drawer.
Type: F4AH250V
Nome?:Descrizione
DT2030896
Tappo porta fusibile
Tappo porta fusibile

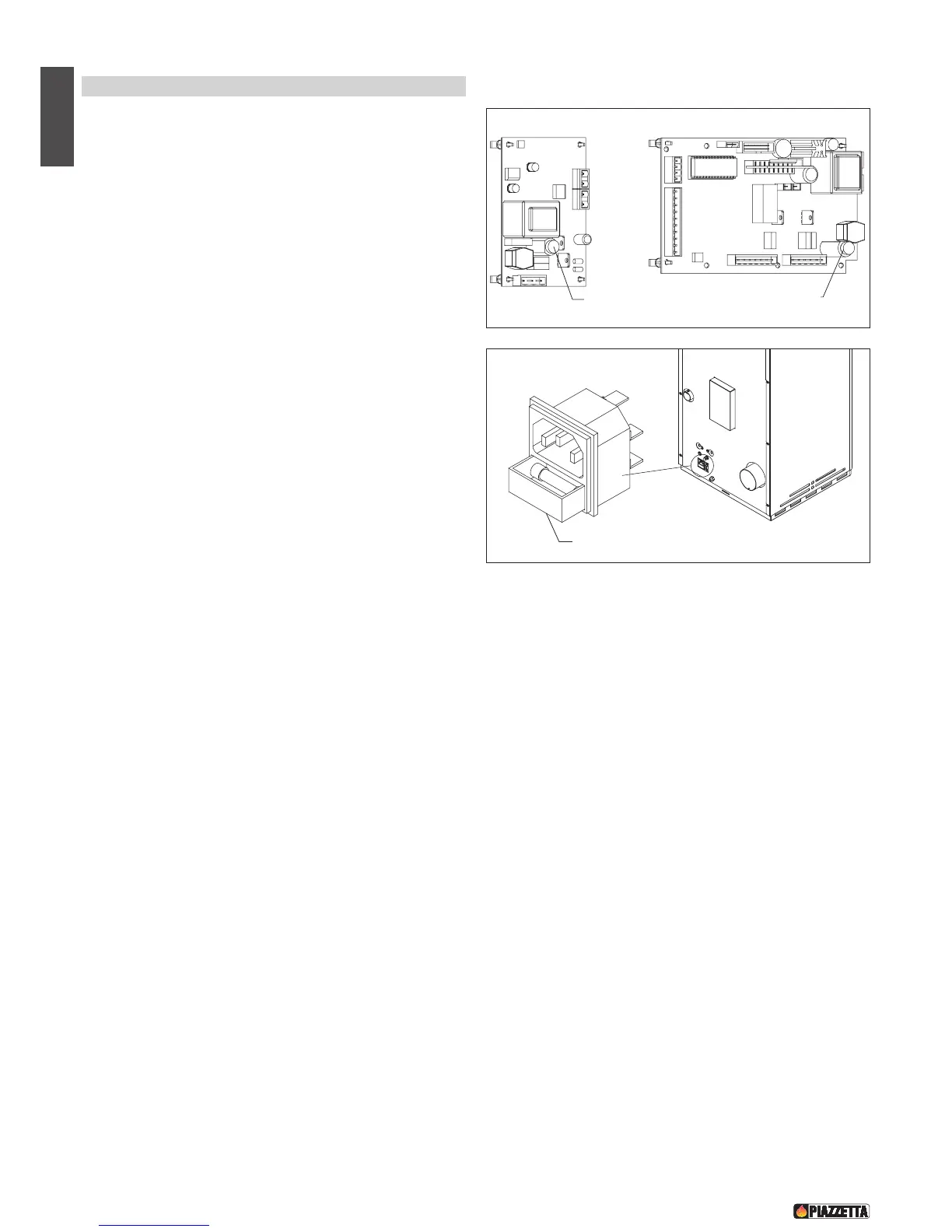

Cartridge fuse/safety plug
Cartridge fuse/safety plug
Fan card
Motherboard
DT2030897
Cassettino porta fusibile
Fuse carrier drawer
Fig. 70
Fig. 71
DT2030896-00
DT2030897-00
