5.0 INSTALLATION
DT2010116-01
External pressure switch
• The stove is fitted with an external pipe tap for measuring the
pressure (vacuum) in the flue gas outlet pipe. Authorised personnel
should carry out this verification and control whilst the stove is being
installed.
Cladding
• Having completed assembly of the stove and installed any external
room thermostat, proceed with assembly of the stove cladding,
referring to the ceramic cladding instruction booklet provided with the
stove.

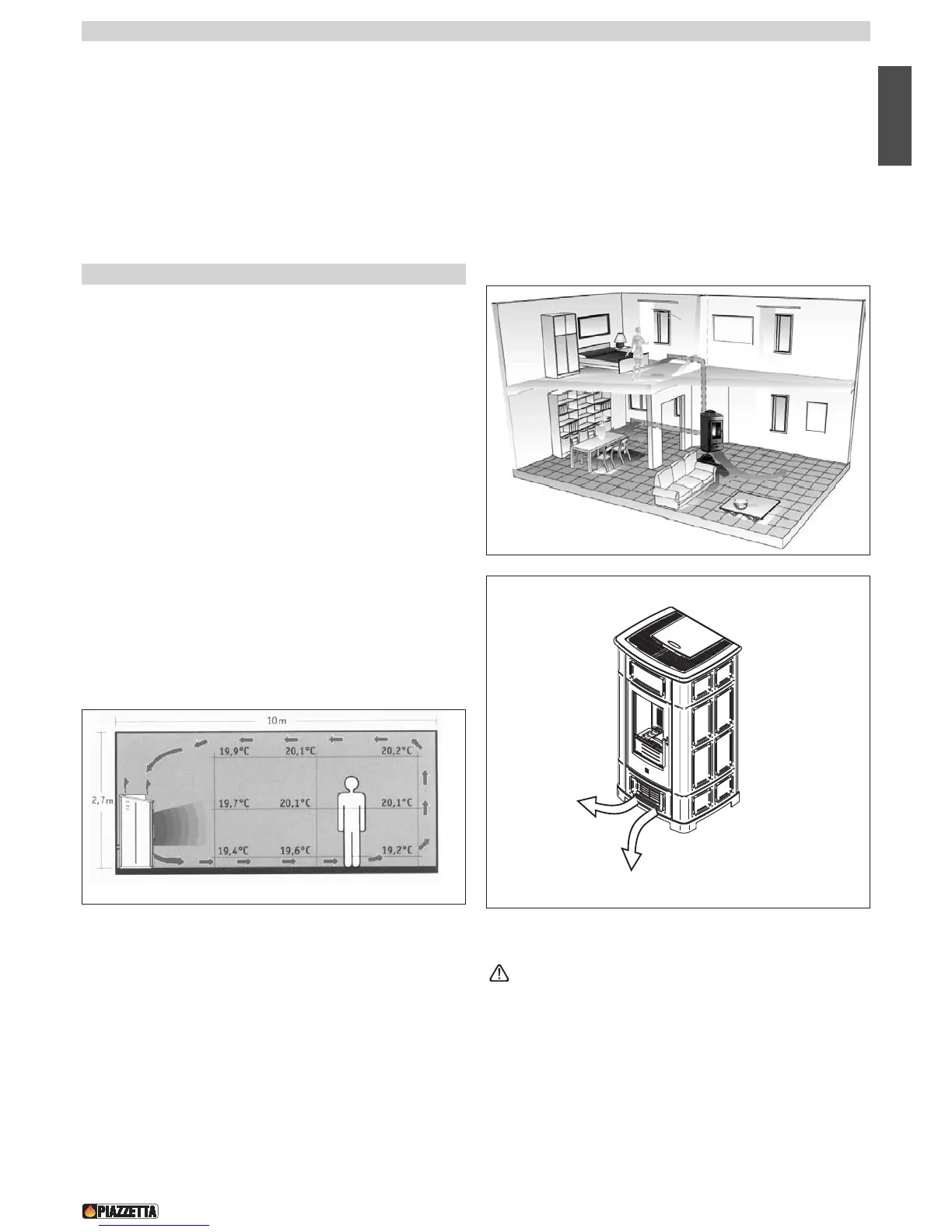

5.1 ‘Multifuoco’ system - Fig. 25/27
• Piazzetta’s technological research and development mean that
this pellet stove offers the advantages of the ‘Multifuoco’ system,
a system exclusive to and patented by Gruppo Piazzetta S.p.A.
and a true innovation in the field of pellet stoves.
• The ‘Multifuoco’ system revolutionises all methods of heat
circulation currently in use in pellet stoves: the heat produced by
the hearth is circulated into the atmosphere not only from the
base of the stove itself, but it can also be directed via 75mm-
diameter hoses to adjoining rooms (fig 26).
This exclusive heat distribution system offers many notable
advantages: even temperature distribution; heating of adjoining
rooms (fig 25).
• The heat produced is propelled by a fan and distributed via the
outlet located on the front of the stove (fig 27).
DT2010071-01
DT2030162-00
F
ig. 26
DT2030173-00
Fig. 27
DT2030163-00
Fig. 25
Instructions for ducting the hot air
• The fan system which pushes hot air into the room is fitted with
a Y-element, which effectively allows the air flow to be split up,
directing it via a hose also to the back of the stove from where it
can then be ducted into adjoining rooms.
• Below are some examples of stove installation and examples of
how to duct the hot air to heat other rooms. Such examples are
intended as demonstrations; optimum performance depends in
each case on conditions in the room where the stove is installed
and in the adjoining rooms.
It is of fundamental importance that when ducting heat from
the rear of the stove, the outlets near the stove or the Y-
element must not be closed in order to avoid overheating.
In cases where only one rear outlet from the fan is
envisaged, the outlet must always be kept open.
The examples give guidelines for ducting. Each diagram gives just
one example of the many possible solutions.
P
ursuant to current regulations on the safety of electrical equipment, you must contact a Piazzetta After-Sales Service Centre or a qualified
electrician for all and any work connected with installation, maintenance or servicing that involves access to electrical parts.
