3.11 Slot Assignments
Slot assignments in this document are extremely important to follow. The Pinnacle Hardware Certification
team tests all slots and decides on the best option for your card configuration. Typically, this document
describes and counts the slot order by starting with the AGP slot (closest to the PC fan), and counting
upwards from lowest to highest (ex. AGP, slot 1, slot 2, slot 3, slot 4, slot 5, slot 6). While each workstation
varies in the number of slots as well as the actual speed of the slots, below is a typical description we will
use the following diagram on the next page as an example for this document:

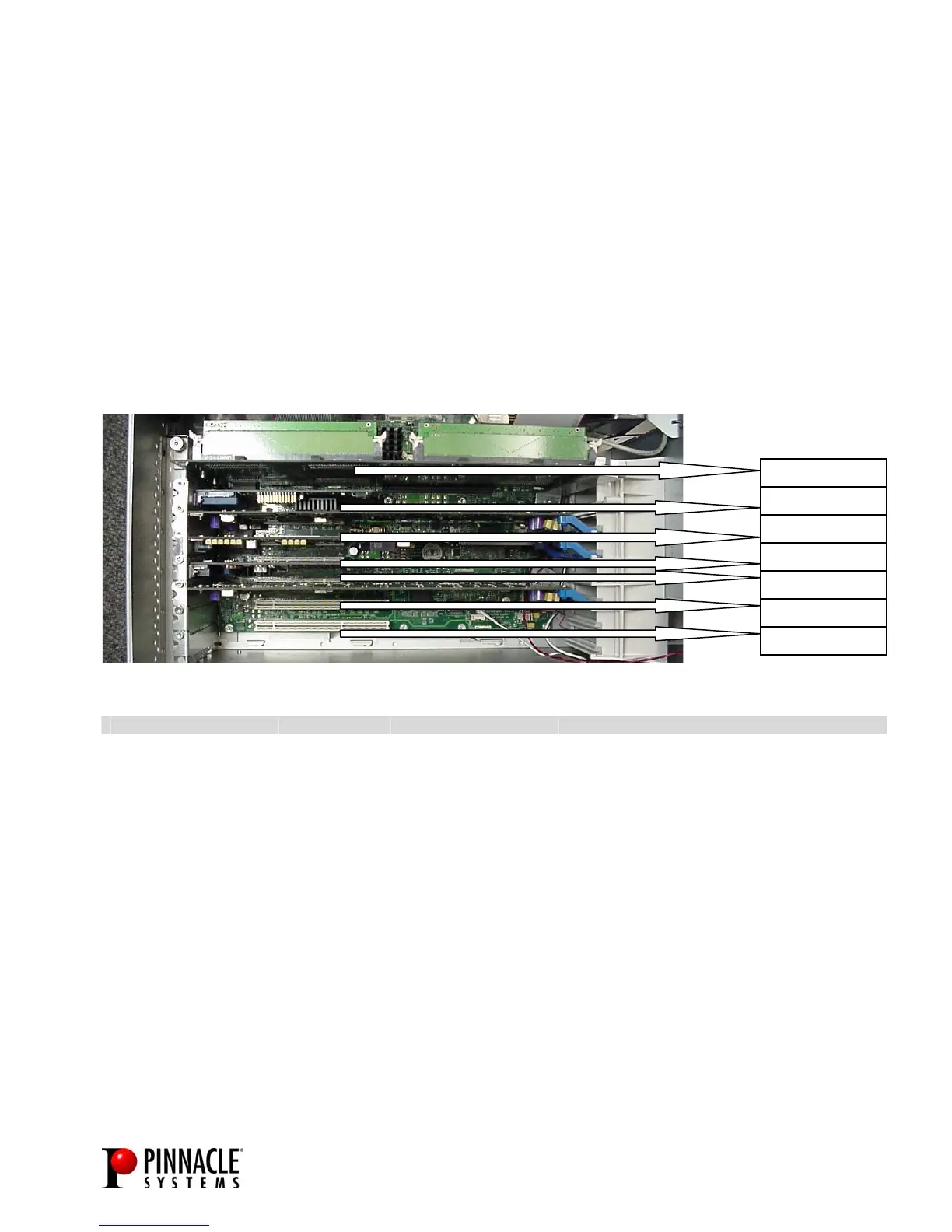

Example of Board Slot Numbering (Compaq W8000)
Bus Type Slot # Speed of Slot Card description
AGP N/A N/A Video Card
PCI 1 32-bit N/A
PCI 2 32-bit N/A
PCI 3 32-bit N/A
PCI 4 32-bit N/A
PCI 5 64-bit TARGA 3000 Card
PCI 6 64-bit SCSI Adapter
A
GP Slot
Slot 1 32-bit
Slot 2 32-bit
Slot 3 32-bit
Slot 4 32-bit
Slot 6 64-bit
Slot 5 64-bit
