TARGA 3000 Configuration Cookbook
11/25/2002
33

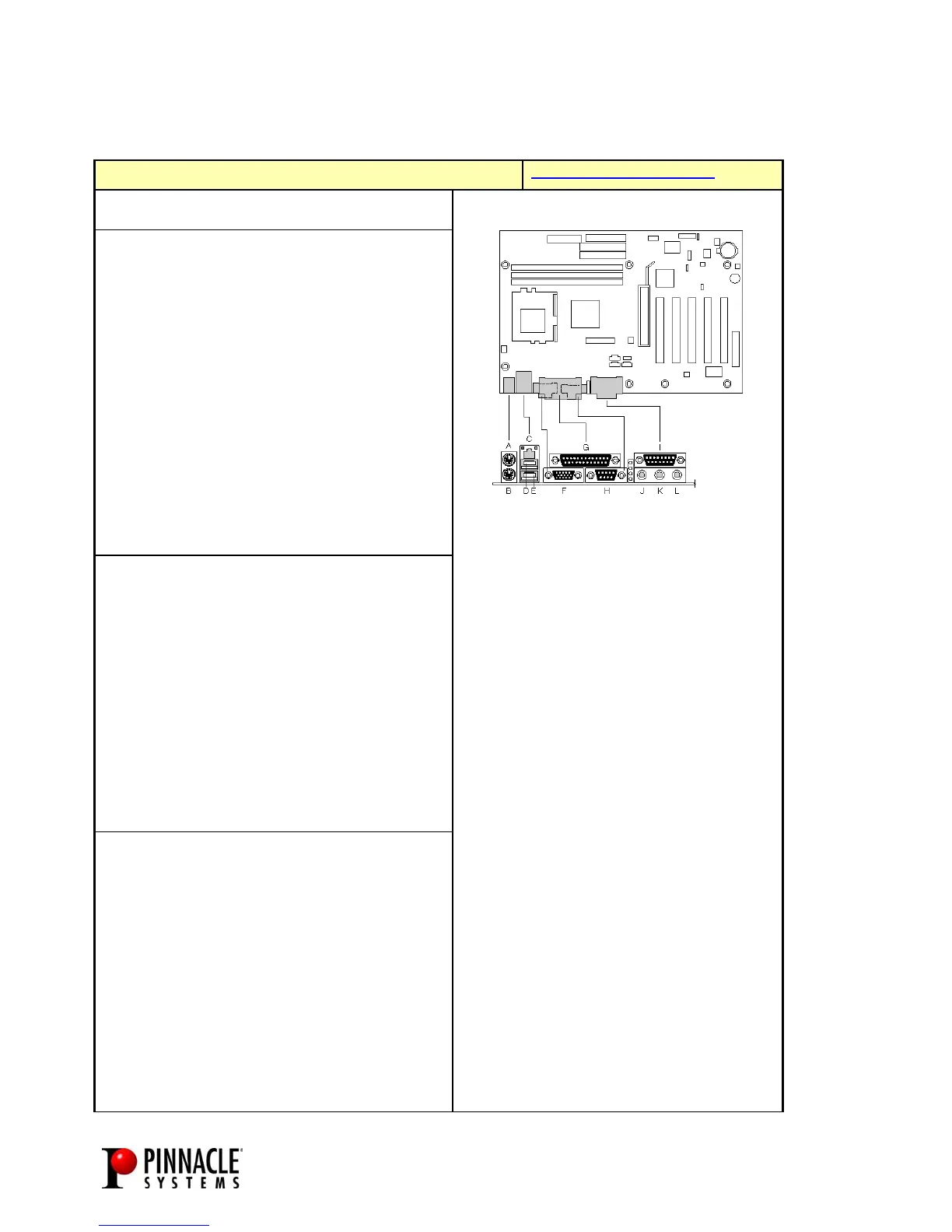

4.7 INTEL 815DEEA(L)
INTEL 815DEEA(L)
815DEEA(L) HOMEPAGE
PERFORMANCE RATING:
2 streams YUV uncompressed
TESTED CONFIGURATION:
+Pentium III 933MHz 133 Mhz FSB
+256 MB PC133 SDRAM
+ATI RAGE 128 32MB AGP VGA
+Adaptec 29160 SCSI host adapter BIOS
v2.55.0
+Adaptec 39160 Dual Channel SCSI host
adapter
+Qlogic Dual Channel SCSI QLA12160 Host
Adapter
+IWILL DU3160 Dual Channel SCSI Host
Adapter(Dual Channel external connection
requires an additional internal to external
adapter cable.)
+Integrated Intel 82559 Network Controller
+8 Quantum Atlas 10K 9WLS Ultra160m 9 GB
drives
SLOT ASSIGNMENTS:
AGP : ATI Rage 128 AGP VGA
PCI32-5: Adaptec AHA-29160
PCI32-4: Empty
PCI32-3: Empty
PCI32-2: TARGA 3000
PCI32-1: Empty
Note: PCI32-5 is closest to AGP slot
CONFIGURATION NOTES:
Use PCILOCK function if running Windows NT
4.0.
Do not use onboard VGA controller for video.
Please use a certified VGA adapter for best
performance.
FEATURES AND SPECIFICATIONS:
Form Factor:
ATX with PC99 color-coded double-deck I/O ports
Size: 12" x 8.7" (W x H)
Supported Processors:
Intel 370-pin Pentium ® III FCPGA 1 GHz - 600 MHz
processor
Intel® 370-pin Celeron™ FCPGA/PPGA 800 – 333
MHz processor
Memory Type:
Three 3.3 volt, 168-pin DIMMs (25-degree sockets)
Up to 512 MB unbuffered SDRAM PC 133/100
Standby voltage to support STR (Suspend to RAM)
Chipset:
Intel ® 815e " Solano" chipset
(82815 GMCH + 82801BA ICH2)
I/O Expansion Slots:
One 4xAGP slot
Five 32-bit PCI bus mastering slots at 33 MHz with
suspend voltage
Integrated Devices:
Intel® 82559 Ethernet
Two Ultra DMA (UDMA/100) bus master/EIDE
channels that support an IDE drive data transfer
rate of 100 MHz
4 USB (Universal Serial Bus) ports (two onboard
connectors and two headers)
PS/2 keyboard and PS/2 mouse connectors
Two fast UART 16550 compatible serial ports
One ECP/EPP parallel port
One floppy port
Direct AGP w/optional AIMM 4MB display cache
Chassis Compatibility:
Standard ATX chassis
