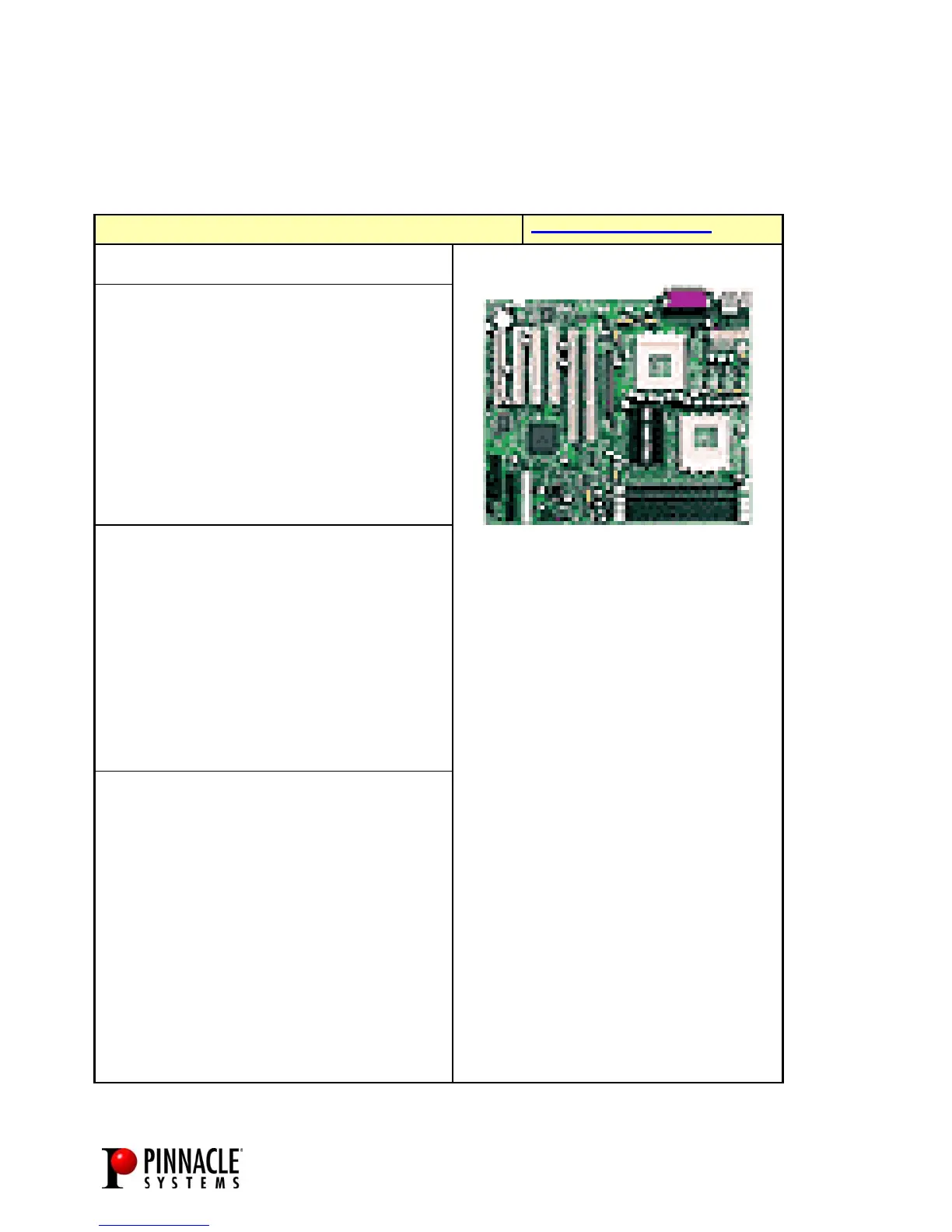

4.20 TYAN Tiger MPX (S2466)
TIGER MPX (S2466)
TIGER MPX HOMEPAGE
PERFORMANCE RATING:
3 streams YUV uncompressed
TESTED CONFIGURATION:
+Dual Athlon MP 2000 266 Mhz FSB
+512 MB PC2100 DDR SDRAM
+Matrox G550 32MB AGP VGA
+3com 3C920 10/100 Network Adapter
+Adaptec 39160 Dual Channel SCSI host
adapter
+8x Seagate ST318452LC in JBOD Chassis
SLOT ASSIGNMENTS:
AGP : Matrox G550 AGP VGA
PCI64-2: AHA-39160
PCI64-1: Targa 3000
PCI32-4: Empty
PCI32-3: Empty
PCI32-2: Empty
PCI32-1: Empty
Note: PCI64-2 is closest to AGP slot
CONFIGURATION NOTES:
Only certified for Windows 2000, SP1 or later.
AMD recommended using 460W Power Supply
First version 1.0 BIOS is not compatible with ATI
RADEON 8500. Please update with the latest
version for compatibility (Current version is 1.01).
Model S2466N has USB problems thus uses an
included add on PCI card for USB functions.
Model S2466N-4M is a fixed version of the
2466N with no USB problems.
FEATURES AND SPECIFICATIONS:
Form Factor:
ATX footprint (12" x 10.3", 304.8 x 261.62mm)
Supported Processors:
Dual PGA462 ZIF sockets
Supports two AMD Athlon MP processors
Two onboard VRMs
System bus support for 200MHz and 266MHz
Memory Type:
Four 2.5v 184-pin Registered DDR DIMM sockets 25°
angled sockets enable rackmount installation
Supports up to 3GB of PC2100 Registered DDR RAM
Supports ECC (72-bit) memory modules
Chipset:
AMD-760 MPX chipset
AMD-762 North bridge & AMD-766 South bridge
Winbond W83627HF Super I/O ASIC
I/O Expansion Slots:
One 4xAGP slot
Four 32-bit PCI slots
Two 64-bit PCI slots
Integrated Devices:
Two Ultra DMA (UDMA/100) bus master/EIDE
channels that support an IDE drive data transfer rate of
100 MHz
4 USB (Universal Serial Bus) ports (two onboard
connectors and two headers)
PS/2 keyboard and PS/2 mouse connectors
Two fast UART 16550 compatible serial ports
One ECP/EPP parallel port
One floppy port
3Com 3C920 ASIC with 3C905 driver set LAN controller
Supports 10Mbps and 100Mbps transfer rates
Chassis Compatibility:
ATX Chassis
Requires 460W Power Supply
