TARGA 3000 Configuration Cookbook
11/25/2002
40
4.14 SuperMicro P4DC6

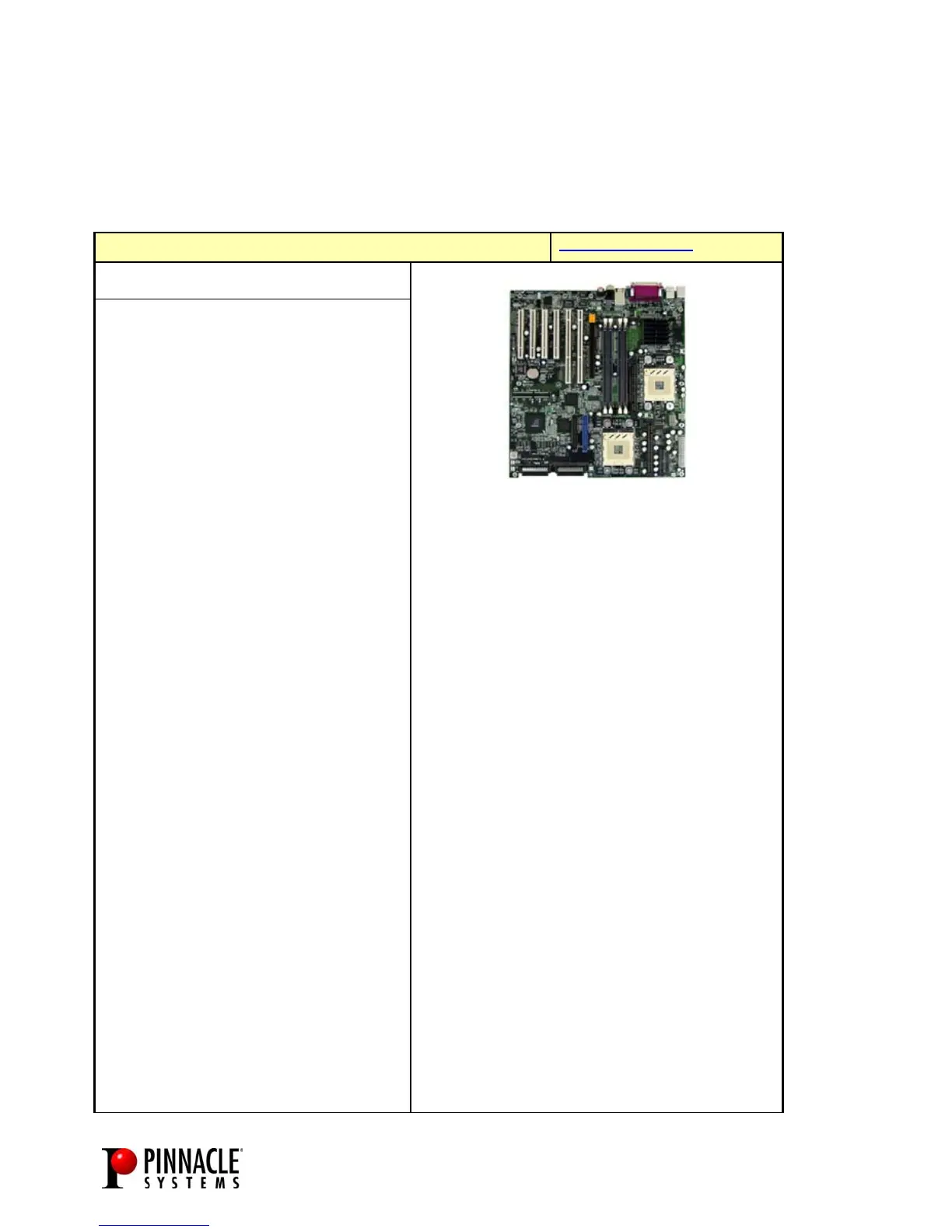

SuperMicro P4DC6
P4DC6 Homepage
PERFORMANCE RATING:
3 Uncompressed YUV Streams
TESTED CONFIGURATION:
2 x 1.7GHz Intel Pentium Xeon Processors
2 x 256MB PC800 ECC RDRAM from
Apacer
1 x ATI RAGE 128GL 32MB AGP
1 x Adaptec AHA-39160 Dual Channel
U160
1 x Seagate ST31803LW System Drive
8 x Seagate ST318452LC in JBOD
Chassis
Windows 2000 SP2, DirectX8.0a
Adobe Premiere 6.01
Targa 3000 version 1.5
SLOT ASSIGNMENTS:
AGP: ATI Rage 128 GL
PCI64-2: AHA-39160
PCI64-1: TARGA 3000
PCI32-4: Empty
PCI32-3: Empty
PCI32-2: Empty
PCI32-1: Empty
CONFIGURATION NOTES:
Mainboard requires P4 compatible power
supply 400W or higher in order to operate
properly.
Under Windows 2000, Intel INF installer
version 3.20 or higher needed.
For optimum IDE transfer, use Intel’s
UltraATA driver version 6.20 or higher.
FEATURES AND SPECIFICATIONS:
Form Factor:
Extended ATX
Size: 12" x 13" (W x H)
Supported Processors:
Intel 603-pin Xeon CPU 1.5-2.0GHz+
Memory Type:
Dual Channel 600/800 MHz RDRAM with Transfer Rate up to
3.2 GB/s
Four 184-pin RIMMs for 600/800 MHz RDRAM up to 2 GB
Two Rambus Inline memory modules of the same memory size
is the minimum requirement.
Chipset:
Intel 860 chipset
MCH(1012 OLGA)-memory & graphic
ICH2(36 0EBGA)-I/O controller
FWH(32 PLCC)-BIOS and management controller
P64H(241 mBGA)-64bit bus master PCI expander
I/O Expansion Slots:
2 64-bit 66MHz PCI
4 32-bit 33MHz PCI
1 4xAGP Pro 1.5V
Integrated Devices:
Dual EIDE ports support Ultra DMA 100MB/s of Burst data
transfer rate, supports UDMA Mode 5, PIO Mode 4 and ATAPI
AC97' Audio
Onboard Adaptec AIC-7899W (7902 future option) dual channel
Ultra160 (320) SCSI controller
Intel 82559 LAN controller
PC hardware health monitoring
1 Floppy
2 Fast UART 16550 serial ports
1 ECP/EEP parallel port
1 Infrared header
Up to 4 USB ports
PS/2 keyboard and mouse ports
Chassis Compatibility:
Extended ATX
