Pinnacle Systems, Inc. TARGA 3000 Cookbook

TARGA 3000 Configuration Cookbook
11/25/2002 35

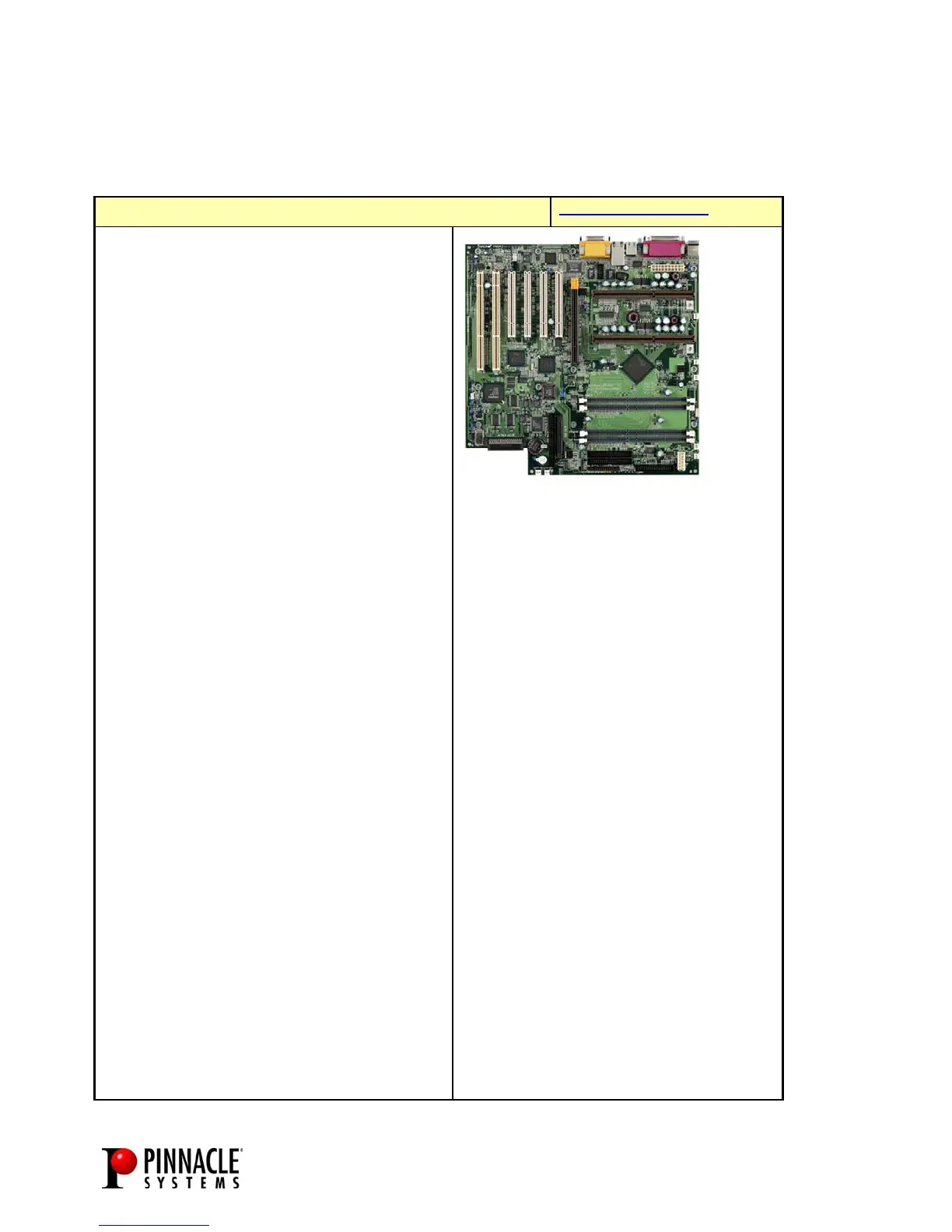

4.9 SUPERMICRO PIIIDR3
SUPERMICRO PIIIDR3
PIIIDR3 HOMEPAGE
PERFORMANCE RATING:
3 streams YUV uncompressed
TESTED CONFIGURATION:
+Two Pentium III 733MHz 133 Mhz FSB
+512 MB PC800 RAMBUS RDRAM
+Matrox G400 32MB AGP VGA
+Adaptec 29160 SCSI host adapter BIOS
v2.55.0
+Adaptec 39160 Dual Channel SCSI host
adapter
+Qlogic Dual Channel SCSI QLA12160 Host
Adapter
+IWILL DU3160 Dual Channel SCSI Host
Adapter(Dual Channel external connection
requires an additional internal to external
adapter cable.)
+Integrated Intel 82559 Network Controller
+8 Quantum Atlas 10K 9WLS Ultra160m 9 GB
drives
SLOT ASSIGNMENTS:
AGP : Matrox G400 AGP VGA
PCI32-4: Empty
PCI32-3: Empty
PCI32-2: Empty
PCI32-1: Empty
PCI64-2: Adaptec AHA-29160
PCI64-1: TARGA 3000
Note: PCI32-4 is closest to AGP slot
CONFIGURATION NOTES:
Use PCILOCK function if running Windows NT
4.0.
Use PC600 Memory when running with 100MHz
FSB Processors
Use PC800 Memory when running with 133MHz
FSB Processors.
FEATURES AND SPECIFICATIONS:
Form Factor:
ATX with PC99 color-coded double-deck I/O
Size: 12" (W) x 11.55" (H)
Supported Processors:
Dual or single Intel® Pentium® III 1 GHz ~ 350 MHz
(Slot 1)
Dual or single Intel® Pentium® II 450 MHz ~
350 MHz (Slot 1)
Memory Type:
Four 2.5 volt, 184-pin RIMM sockets
Standby voltage to support STR (Suspend to RAM)
Up to 2 GB RAMBUS RIMMs
Support ECC and non ECC
Chipset:
Intel® 840 Carmel Chipset
(82840 MCH + 82801AA ICH + 82806AA P64H)
I/O Expansion Slots:
One AGP Pro (4xAGP) slot supports data
throughput of up to 1 GB/s
Two 64-bit, 66 MHz PCI bus mastering slots
(Includes one 64-bit PCI slot that supports SISL -- to be
verified)
Four 32-bit PCI bus mastering slots at 33 MHz with
suspend voltage
Integrated Devices:
Onboard Intel 82559 Ethernet controller
Onboard single channel Ultra3/160 SCSI controller
Two Ultra DMA (UDMA/66) bus master/EIDE channels
support data transfer rates of up to 66 MB/sec
AC'97 2.1 compliant link for audio and telephony
CODECs
Dual USB (Universal Serial Bus) ports
PS/2 keyboard and PS/2 mouse connectors
Two 16550 UART compatible serial ports
One ECP/EPP parallel port
One floppy port
Chassis Compatibility:
Full ATX chassis
Fits Super Micro SC860, SC850, SC840, SC830
SC760P4 and SC750P4 chassis
