TARGA 3000 Configuration Cookbook
11/25/2002
37
4.11 TYAN THUNDER K7 (S2462)

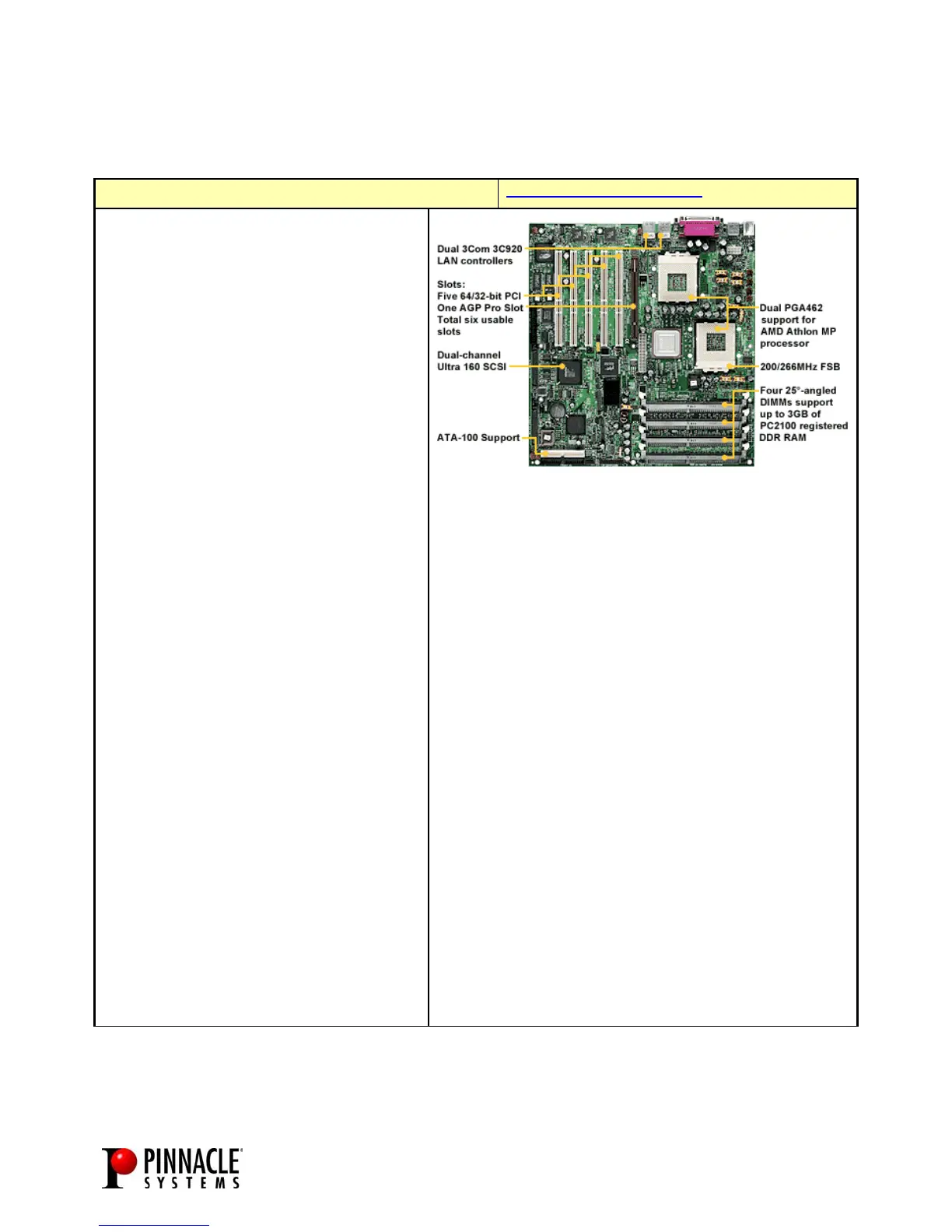

THUNDER K7 (S2462)
THUNDER K7 HOMEPAGE
PERFORMANCE RATING:
3 streams YUV uncompressed
TESTED CONFIGURATION:
+Dual Athlon 1.2GHz 266 Mhz FSB
+256 MB PC2100 DDR SDRAM
+Matrox G400 32MB AGP VGA
+Adaptec 29160 SCSI host adapter BIOS
v2.55.0
+Adaptec 39160 Dual Channel SCSI host
adapter
+Qlogic Dual Channel SCSI QLA12160 Host
Adapter
+IWILL DU3160 Dual Channel SCSI Host
Adapter(Dual Channel external connection
requires an additional internal to external
adapter cable.)
+Integrated 3COM Network Controller
+8 Quantum Atlas 10K 9WLS Ultra160m 9
GB
drives
SLOT ASSIGNMENTS:
AGP : Matrox G400 AGP VGA
PCI64-5: Empty
PCI64-4: Empty
PCI64-3: TARGA 3000
PCI64-2: Empty
PCI64-1: Empty
Note: PCI32-4 is closest to AGP slot
CONFIGURATION NOTES:
Only certified for Windows 2000, SP1 or later.
Onboard VGA controller is compatible with
T3K.
But for better performance please use a
certified VGA adapter.
AMD recommended using 460W Power
Supply
FEATURES AND SPECIFICATIONS:
Form Factor:
Extended ATX footprint (13" x 12")
Supported Processors:
Dual PGA462 ZIF sockets
Supports two AMD Athlon MP processors
Two onboard VRMs
System bus support for 200MHz and 266MHz
Memory Type:
Four 2.5v 184-pin Registered DDR DIMM sockets 25° angled sockets
enable rackmount installation
Supports up to 3GB of PC2100 Registered DDR RAM
Supports ECC (72-bit) memory modules
Chipset:
AMD-760 MP chipset
AMD-762 North bridge & AMD-766 South bridge
Winbond W83627HF Super I/O ASIC
I/O Expansion Slots:
One 4xAGP slot
5 64-bit PCI bus mastering slots at 33 MHz
Integrated Devices:
ATI RAGE XL VGA with 4MB SDRAM
Adaptec® AIC-7899 Dual channel Ultra160 SCSI
Two 3Com 3C920 LAN controllers 10/100Mbps
data transfer rate per controller
Two Ultra DMA (UDMA/100) bus master/EIDE
channels that support an IDE drive data transfer rate of 100 MHz
4 USB (Universal Serial Bus) ports (two onboard connectors and two
headers)
PS/2 keyboard and PS/2 mouse connectors
Two fast UART 16550 compatible serial ports
One ECP/EPP parallel port
One floppy port
Chassis Compatibility:
Extended ATX chassis
Requires 460W Power Supply
To Next Page
